Masport 800AL - 464778 - Jan 2016 > 8002517 - Deck

Description

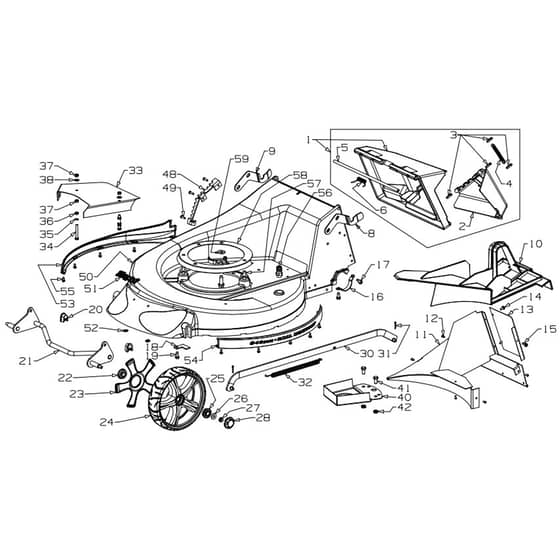

Masport 800AL Petrol Power Drive - Deck Parts Diagram

Part Number: 464778

Model: S21 WC 800 AL 3'n1 SP

Engine Model: B&S Series 675EXi

Model Range: Jan 2016

Serial Number: > 8002517

	Part No.	Details
1	MP782414 Available to backorder	Flap Assy- Smart Chute R.Blk	£56.23 £46.86
2	MP571095 Available to backorder	Flap- Door Side RED	£16.61 £13.84
3	MP581676 Available to backorder	Pin Tension 6x35	£1.28 £1.07
4	MP581648 Available to backorder	Spring- Flap Side Discharge	£2.23 £1.86
5	MP583312 Available to backorder	Wire- Flap Pivot 8x325	£4.78 £3.98
6	MP583343 Available to backorder	Spring Flap 19"	£2.23 £1.86
8	MP567399 Available to backorder	Bracket- Mount Catcher LH	£15.34 £12.78
9	MP567400 Available to backorder	Bracket- Mount Catcher RH	£15.34 £12.78

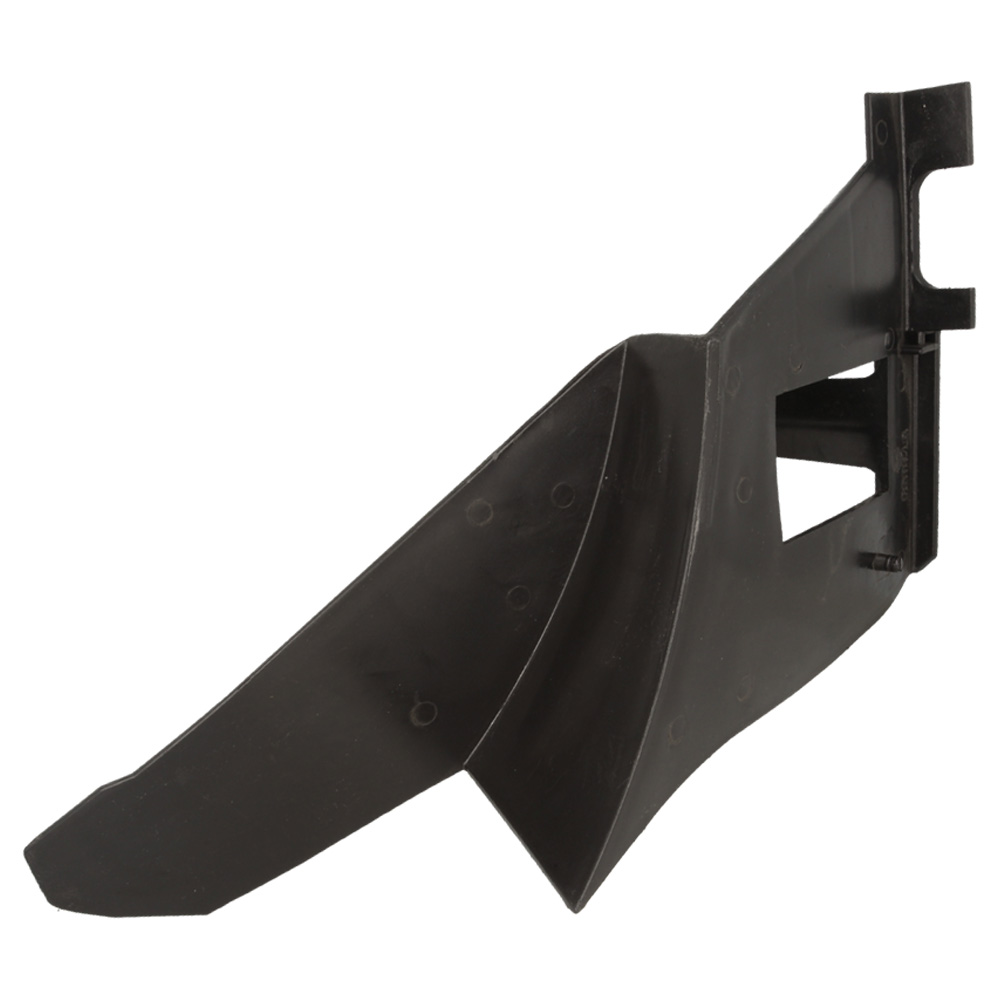

10	MP573059 Available to backorder	Insert Mulching 21" Ali	£34.40 £28.67
11	MP967244 Available to backorder	Tunnel Assy 21"	£74.76 £62.30
13	MP573182 Available to backorder	Tunnel- GBox Cover 21" Ali	£12.11 £10.09
14	MP503630 Available to backorder	Screw S.T 10 x .4 Typ B	£0.86 £0.72
16	MP980586 Available to backorder	Retainer Axle Rear	£2.48 £2.07
17	MP501599 Available to backorder	Screw S.T 1.4x5.8xHex	£1.51 £1.26
18	MP983315 Available to backorder	Plate- Retainer Axle 19"	£0.94 £0.78
20	MP580030 In stock	Bush- Pivot Front Axle	£0.76 £0.63
21	MP983305 Available to backorder	Axle Assy Front 200mm	£30.34 £25.28
22	MP551212 Available to backorder	Bearing -Wheel Ball Type	£5.75 £4.79
23	MP579205 Available to backorder	Cover- Inner Wheel Slvr	£2.36 £1.97
24	MP573706 Available to backorder	Wheel Assy 200mm Mag Slvr	£34.57 £28.81
26	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.37 £0.31
27	MP503831 Available to backorder	Nut M8 Nylocx 6 Thck	£0.72 £0.60
28	MP579204 Available to backorder	Hub Cap Button Mag Silver	£0.48 £0.40
30	MP573814 Available to backorder	Rod Assy Connecting 540 SP	£16.82 £14.02
31	MP501056 Available to backorder	Pin Cotter 2.3 x 16	£0.48 £0.40
32	MP573844 Available to backorder	Spring- Counter Balance SP	£7.37 £6.14
33	MP973662 Available to backorder	Cover Belt	£23.77 £19.81
36	MP501682 Available to backorder	Nut M6 Hex	£2.48 £2.07
37	MP501764 Available to backorder	Nut M6 Nylocx 6 Thck	£0.31 £0.26
38	MP501703 Available to backorder	Washer Flt 6x14x1.2	£0.48 £0.40
40	MP567412 Available to backorder	Cover- Belt SPV 21" Syncro	£23.06 £19.22
48	MP573582 Available to backorder	Quadrant Height Selector 21"	£16.34 £13.62
50	MP764100 Available to backorder	Hsg Ali T 21" SPVSYNC TTNM	£341.04 £284.20
51	MP567406 Available to backorder	Nameplate- MASPORT MSV	£5.80 £4.83
52	MP503150 Available to backorder	Clip- Starlock 5mm dia	£0.48 £0.40
53	MP579741 Available to backorder	Skirt- Side RH 540	£13.60 £11.33
54	MP579742 Available to backorder	Skirt- Side LH 540	£11.23 £9.36
55	MP503834 Available to backorder	Screw S.T M4 x 10 Washer	£0.48 £0.40
56	MP503783 Available to backorder	Cyclowash- Fitting	£4.46 £3.72
57	MP580453 Available to backorder	Screw S.T 3.8x1 - 1.8 UNC Triblk	£2.23 £1.86
58	MP569037 Available to backorder	Ring- Safety Black	£18.11 £15.09
59	MP503419 Available to backorder	Washer FLT 10 x 23 x 3.0	£0.79 £0.66
