Masport 800AL - 464778 - Jan 2016 > 8002517 - 540mm Quick Cut Blade Assy

Name: Masport 800AL - 464778 - Jan 2016 > 8002517 - 540mm Quick Cut Blade Assy
SKU: 800al4647788002517540mmquickcutbladeassy-group
Price: 0.26 GBP
Availability: InStock

Part No. 800al4647788002517540mmquickcutbladeassy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 800AL - 464778 - Jan 2016 > 8002517 - 540mm Quick Cut Blade Assy

Description

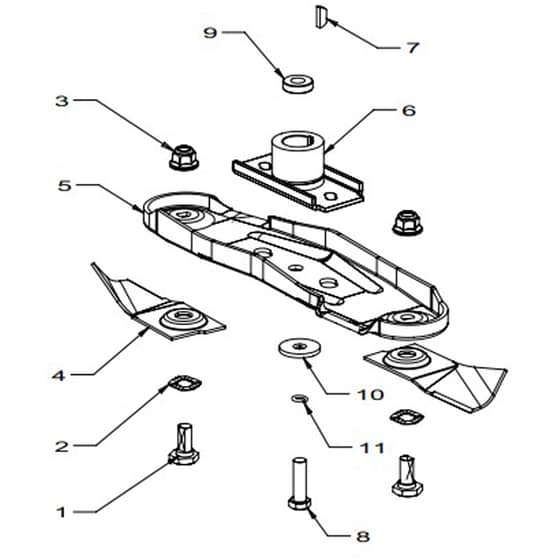

Masport 800AL Petrol Power Drive - 540mm Quick Cut Blade Assy Parts Diagram

Part Number: 464778

Model: S21 WC 800 AL 3'n1 SP

Engine Model: B&S Series 675EXi

Model Range: Jan 2016

Serial Number: > 8002517

	Part No.	Details
1	MP581707 In stock	Bolt- Pivot M10 x 22	£2.41 £2.01
2	MP580693 In stock	Washer Wavy 13.4 x 24.2	£0.37 £0.31
3	MP503672 In stock	Nut M10 Hex Nyloc Flange	£0.36 £0.30
5	MP980653 Available to backorder	Carrier- Blade QuickCut	£31.19 £25.99
6	MP031640 Available to backorder	Driver Assy- Blade 25mm	£21.84 £18.20
7	MP503363 Available to backorder	Key Woodruff-5.8" x 3.16" x 1.4"	£0.41 £0.34
8	MP581610 In stock	Bolt	£2.11 £1.76
9	MP573585 Available to backorder	Spacer- Blade Driver 22 x 4.0	£3.12 £2.60
10	MP503667 Available to backorder	Washer Flat 9.75 x 30 x 3.0	£1.14 £0.95
11	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
