Masport 660 - 019041 - Apr 2009 7200737 - Handle Assembly

Name: Masport 660 - 019041 - Apr 2009 7200737 - Handle Assembly
SKU: 6600190417200737handle-group
Price: 0.26 GBP
Availability: InStock

Part No. 6600190417200737handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 660 - 019041 - Apr 2009 7200737 - Handle Assembly

Description

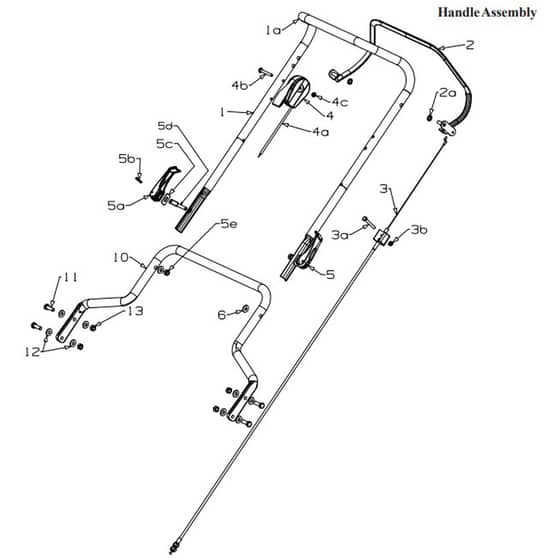

Masport 660 Petrol Cylinder - Handle Assembly Parts Diagram

Part Number: 019041

Model: 660 - PRR

Engine Model: Honda GX160

Model Range: Apr 2009

Serial Number: 7200737

	Part No.	Details
1	MP773155 Available to backorder	(1.1a) Handle- Upper UPT OPC Short	£34.86 £29.05
2	MP982161 Available to backorder	Bail Arm Assy SP	£28.26 £23.55
2	MP501365 Available to backorder	(2a) Clip- Starloc 5.16"	£0.48 £0.40
3	MP031990 In stock	Cable- Clutch Reel Mower	£30.35 £25.29
3	MP501764 Available to backorder	(3b) Nut M6 Hex Nyloc x 6mm thick	£0.31 £0.26
4	MP503604 Available to backorder	(4b) Screw Pan M6x45	£0.83 £0.69
4	MP583458 In stock	(4.4a) Throttle Control & Cable Wscn	£19.93 £16.61
5	MP503369 Available to backorder	(5b) Pin Tension 5.0 x 22	£0.48 £0.40
5	MP980456 In stock	(5a) Lever- Handle Locking	£11.56 £9.63
5	MP501793 Available to backorder	(5e) Nut M8 Hex Nyloc 8mm thick	£1.92 £1.60
6	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
7	MP581527 Available to backorder	Retainer- Clutch Cable	£0.72 £0.60
10	MP031850 Available to backorder	Handle- Lower Reel Mower 660	£37.14 £30.95
11	MP501597 Available to backorder	Screw Set M8 x 20 Hex	£0.41 £0.34
