Masport 660 - 019031 - Dec 2007 7091922 - MSV Handle Assembly

Name: Masport 660 - 019031 - Dec 2007 7091922 - MSV Handle Assembly
SKU: 6600190317091922msvhandle-group
Price: 0.26 GBP
Availability: InStock

Part No. 6600190317091922msvhandle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 660 - 019031 - Dec 2007 7091922 - MSV Handle Assembly

Description

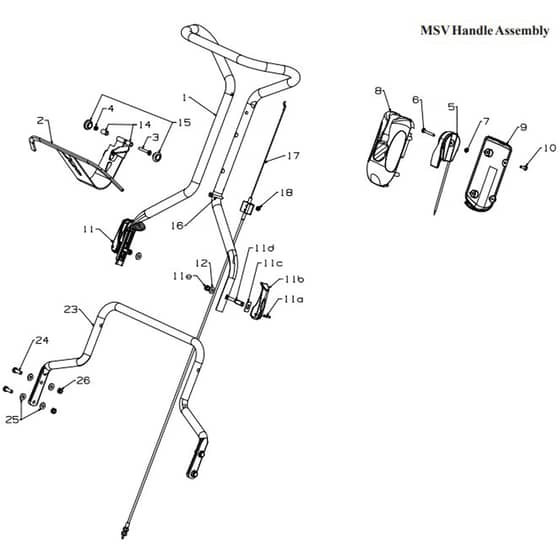

Masport 660 Petrol Cylinder - MSV Handle Assembly Parts Diagram

Part Number: 019031

Model: 660 - PRR

Engine Model: Honda GX160

Model Range: Dec 2007

Serial Number: 7091922

	Part No.	Details
1	MP731847 Available to backorder	Handle Upper R.MWR	£60.48 £50.40
2	MP579279 Available to backorder	Bail Arm Assy SP MSV	£55.91 £46.59
3	MP503883 Available to backorder	Bolt Hex M8 x 100	£7.06 £5.88
4	MP501793 Available to backorder	Nut-M8 Nyloc	£1.92 £1.60
5	MP583458 In stock	Control- Throttle Hsng Wscn	£19.93 £16.61
6	MP503604 Available to backorder	Screw Pan M6x45	£0.83 £0.69
7	MP501764 Available to backorder	Nut M6 Nylocx 6 Thck	£0.31 £0.26
8	MP583442 Available to backorder	Mount Throttle Top Plain	£15.58 £12.98
9	MP583340 Available to backorder	Cover Throttle Bottom	£10.28 £8.57
10	MP503650 Available to backorder	Screw. S.T #12x11.16"	£0.86 £0.72
11	MP582419 Available to backorder	(11b) Lever Handle Locking	£4.74 £3.95
11	MP779755 Available to backorder	Cam Lock Assy-MSV	£10.78 £8.98
11	MP503369 Available to backorder	(11a) Pin Tension 5.0 x25	£0.48 £0.40
11	MP016777 Available to backorder	(11c) Washer Slipper	£0.72 £0.60
12	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.37 £0.31
15	MP503882 Available to backorder	Grommet Blanking 3.4"19mm	£6.17 £5.14

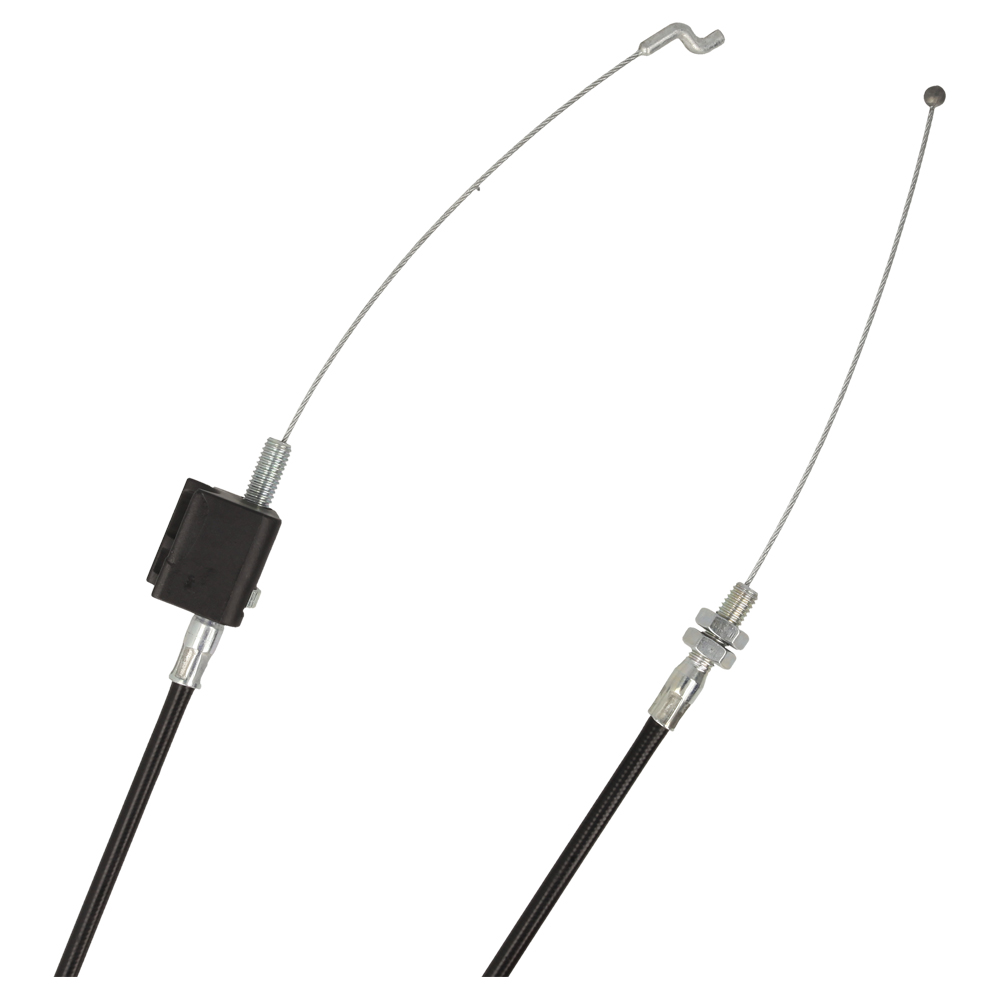

17	MP031990 In stock	Cable-Clutch Reel Mower	£30.35 £25.29
23	MP031850 Available to backorder	Handle- Lower 660	£37.14 £30.95
24	MP501597 Available to backorder	Screw Set M8x20	£0.41 £0.34
