Masport 660 - 019031 - Dec 2007 7091922 - Clutch Assembly

Description

Masport 660 Petrol Cylinder - Clutch Assembly Parts Diagram

Part Number: 019031

Model: 660 - PRR

Engine Model: Honda GX160

Model Range: Dec 2007

Serial Number: 7091922

	Part No.	Details
27	MP031907 Available to backorder	(27b) Cover Trans Moulded	£6.77 £5.64
28	MP503591 Available to backorder	Screw Set M6x12	£0.31 £0.26
29	MP501703 Available to backorder	Washer Flt 6x14x1.2	£0.48 £0.40
30	MP031958 Available to backorder	Spacer- Drive Shaft 13mm	£5.28 £4.40
31	MP732241 In stock	Clutch- Drive Assy	£115.45 £96.21
32	MP005634 Available to backorder	Clutch Spring	£1.24 £1.03
33	MP031914 Available to backorder	Boss- Clutch 20 Dia 536178 Key	£60.35 £50.29
33	MP032241 Available to backorder	Boss- Clutch 19 Dia 536012 Key	£68.64 £57.20
34	MP501719 Available to backorder	Screw Grb M6x8	£1.24 £1.03
35	MP536178 Available to backorder	Key- Cutter 3.16"SQx24	£2.75 £2.29
35	MP536012 Available to backorder	Key- Engine 3.16"SQx38	£2.75 £2.29
36	MP501213 Available to backorder	Bearing Ball 12x32x10 6201 2RS	£17.28 £14.40

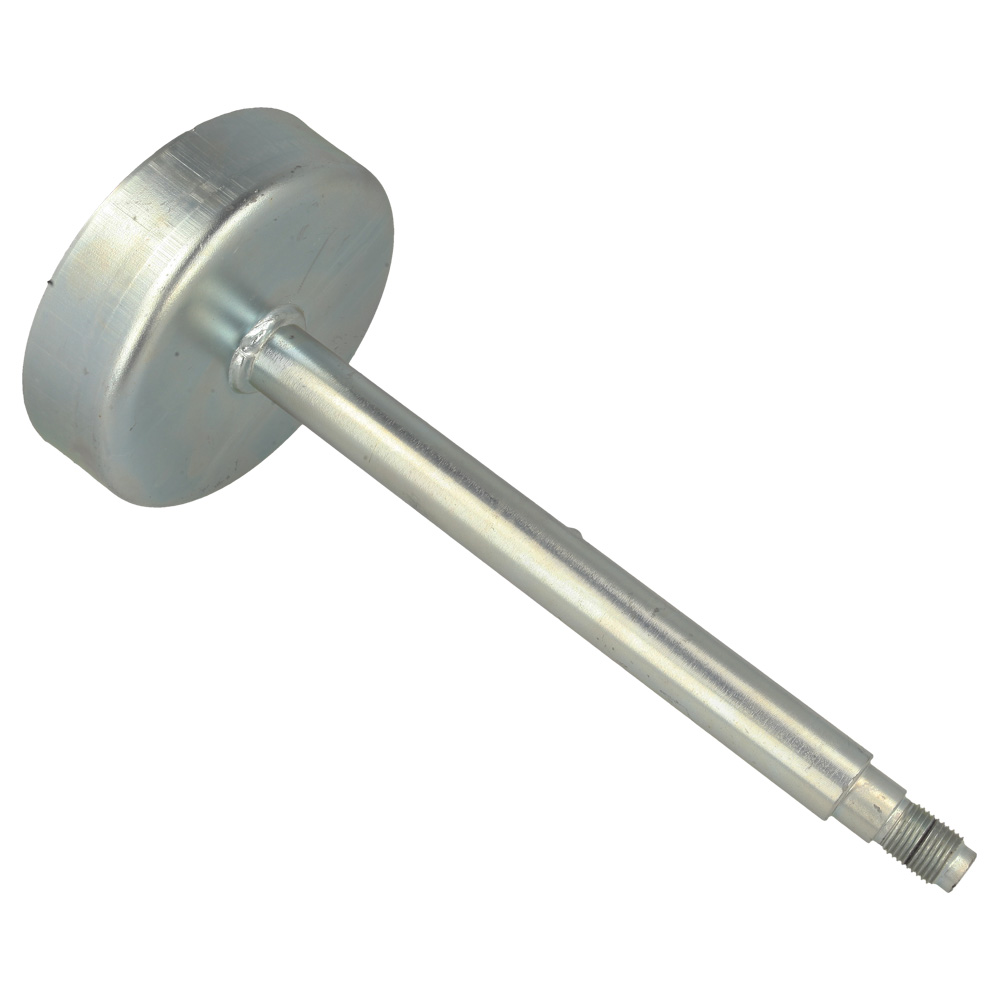

37	MP031855 In stock	Drum Assy Clutch 500.660	£106.92 £89.10
38	MP503747 Available to backorder	Washer Spg 8	£0.48 £0.40
39	MP002834 Available to backorder	Housing- Bearing	£10.06 £8.38
40	MP503273 Available to backorder	Bearing-Ball 17x40x12 6203 2S	£22.61 £18.84
41	MP002818 Available to backorder	Sprocket- 11T Drive	£43.08 £35.90
42	MP501715 Available to backorder	Screw Set M8x15 1mm Pitch	£1.09 £0.91
44	MP501606 Available to backorder	Washer Flt 8x18x1.6	£0.37 £0.31
45	MP501597 Available to backorder	Screw Set M8x20 Hex	£0.41 £0.34
46	MP501602 Available to backorder	Nut M8 Hex	£0.31 £0.26
50	MP503223 Available to backorder	Screw Set M6x16 HT8.8	£1.12 £0.93
51	MP031831 Available to backorder	Lever- Clutch	£5.46 £4.55
52	MP031845 Available to backorder	Spring- Clutch	£1.20 £1.00
53	MP501764 Available to backorder	(53a) Nut-M6 Nyloc	£0.31 £0.26
53	MP031830 Available to backorder	Lever Carrier- Clutch	£10.82 £9.02
54	MP031843 Available to backorder	Washer. FLT 16.5x75x3.0	£6.91 £5.76
55	MP031840 Available to backorder	Post- Clutch	£27.71 £23.09
56	MP031988 In stock	(56a) Sprocket- Clutch Plate Assy	£82.32 £68.60
56	MP031987 Available to backorder	(56b) Liner- Clutch Face Cork	£14.80 £12.33
57	MP031963 Available to backorder	Sprocket- 42T Plate & Boss Assy	£61.92 £51.60
58	MP503901 In stock	Bearing Ball 12x28x8 6001 2RSH	£20.12 £16.77
59	MP031965 Available to backorder	Washer- Centralizing Brass	£10.16 £8.47
60	MP503938 Available to backorder	Bolt M8x120 Hex	£3.64 £3.03
63	MP031842 Available to backorder	Washer Thrust	£4.99 £4.16
64	MP501793 Available to backorder	Nut M8 Hex Nyloc 8 Thck	£1.92 £1.60
76	MP031585 Available to backorder	Cover - Chaincase- Green	£46.66 £38.88
