Masport 660 - 019031 - Dec 2007 7091922 - Chassis Assembly

Name: Masport 660 - 019031 - Dec 2007 7091922 - Chassis Assembly
SKU: 6600190317091922chassis-group
Price: 0.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 660 - 019031 - Dec 2007 7091922 - Chassis Assembly

Description

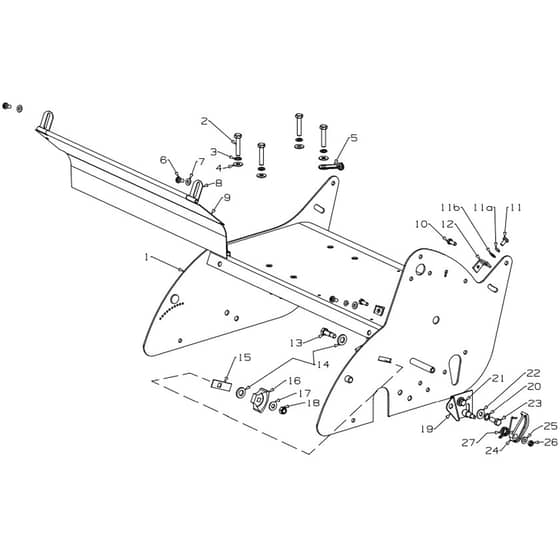

Masport 660 Petrol Cylinder - Chassis Assembly Parts Diagram

Part Number: 019031

Model: 660 - PRR

Engine Model: Honda GX160

Model Range: Dec 2007

Serial Number: 7091922

Be the first to review this product

0 product questions

	Part No.	Details
2	MP501843 Available to backorder	Set Screw M8x40 Hex	£0.86 £0.72
3	MP503747 Available to backorder	Washer Spg 8	£0.48 £0.40
4	MP501606 Available to backorder	Washer Flt 8x19x1.6	£0.36 £0.30
5	MP581527 Available to backorder	Retainer Clutch Cable	£0.72 £0.60
6	MP503591 Available to backorder	Screw Pan M6x12	£0.35 £0.29
7	MP501703 Available to backorder	Washer Flt 6x14x1.2	£0.48 £0.40
8	MP002589 Available to backorder	Bracket Grass Chute	£1.82 £1.52
9	MP004916 Available to backorder	Deflector Grass- 660	£65.16 £54.30
10	MP501702 Available to backorder	Set Screw M6x16 Hex	£0.44 £0.37
12	MP031915 Available to backorder	Bracket- Chain Cover	£2.80 £2.33
13	MP002848 Available to backorder	Bolt- Adjuster Chain	£18.74 £15.62
15	MP002845 Available to backorder	Sealplate- Chain Adjuster	£0.86 £0.72
16	MP002844 Available to backorder	Adjuster- Chain Fixed Nylon	£3.18 £2.65
18	MP501793 Available to backorder	Nut M8 Hex Nyloc 8 Thck	£1.86 £1.55
19	MP004942 Available to backorder	Plate Assy Mounting	£15.84 £13.20
23	MP501597 Available to backorder	Set Screw M8x20 Hex	£0.44 £0.37
24	MP004963 Available to backorder	Adjuster- Chain Tension Nylon	£3.92 £3.27
26	MP501764 Available to backorder	Nut M6 Hex Nyloc 6 Thck	£0.35 £0.29
27	MP004945 Available to backorder	Spring	£2.08 £1.73
