Masport 625AL - 479903 - Sept 2015 > 7968502 - 485mm Quick Cut Blade Assembly

Name: Masport 625AL - 479903 - Sept 2015 > 7968502 - 485mm Quick Cut Blade Assembly
SKU: 625al4799037968502485mmquickcutblade-group
Price: 0.25 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 625AL - 479903 - Sept 2015 > 7968502 - 485mm Quick Cut Blade Assembly

Description

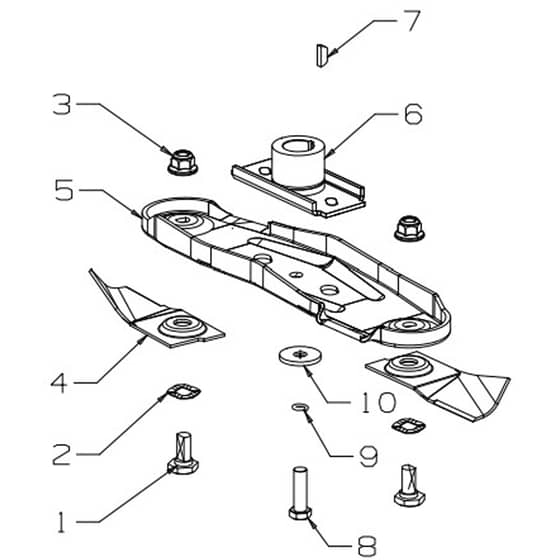

Masport 625AL Petrol Push Rotary Mower - 485mm Quick Cut Blade Assembly Parts Diagram

Part Number: 479903

Model: S19 625AL

Engine Model: B&S Ser 675EXi

Model Range: Sept 2015

Serial Number: > 7968502

Be the first to review this product

0 product questions

	Part No.	Details
1	MP581707 Available to backorder	Bolt- Pivot M10 x 22	£2.28 £1.90
2	MP580693 In stock	Washer Wavy 13.4 x 24.2	£0.34 £0.28
3	MP503672 In stock	Nut M10 Hex Nyloc Flange	£0.32 £0.27
4	MP983529 Available to backorder	Blade- Quick Cut 485mm	£8.12 £6.77
5	MP980653 Available to backorder	Carrier- Blade Quick Cut	£29.10 £24.25
6	MP031640 Available to backorder	Driver Assy- Blade - 25mm	£20.72 £17.27
7	MP503363 Available to backorder	Key Woodruff-5.8" x 3.16" x 1.4"	£0.44 £0.37
8	MP581610 Available to backorder	(8b) Screw Set NF 3.8 x 1.25 NYG8	£1.96 £1.63
9	MP500204 Available to backorder	Washer Spring 3.8"	£0.30 £0.25
10	MP503667 Available to backorder	Washer Flat 9.75 x 30 x 3.0	£1.18 £0.98
