Masport 600AL - 583763 - Feb 2009 - Wheel Assembly

Description

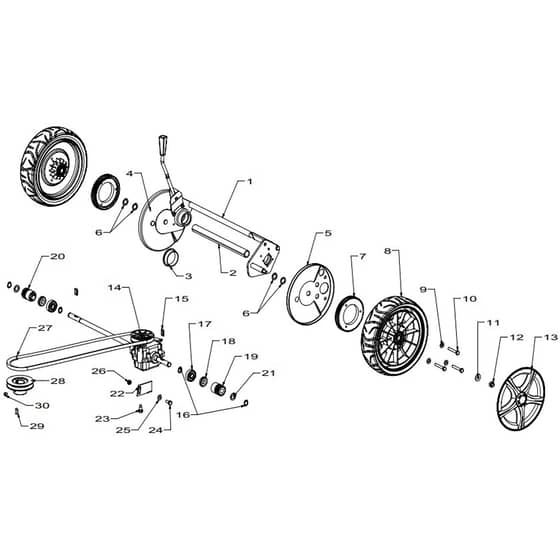

Masport 600AL Petrol Power Drive - Wheel Assembly Parts Diagram

Part Number: 583763

Model: 600 SP AL

Engine Model: B&S Series675

Model Range: Feb 2009

Serial Number: -

Be the first to review this product

0 product questions

	Part No.	Details
1	MP773416 Available to backorder	Axle Assy Rear Compl 18" SP	£68.86 £57.38
2	MP580614 Available to backorder	Sleeve Rear Axle SP	£6.78 £5.65
3	MP580091 Available to backorder	Bush- Pivot Rear Axle	£1.42 £1.18
4	MP579426 Available to backorder	Dust Cover RH	£5.62 £4.68
5	MP579427 Available to backorder	Dust Cover LH	£5.62 £4.68
6	MP503301 Available to backorder	Washer Flt 1.2x3.4x18G	£3.36 £2.80
7	MP579428 Available to backorder	Gear Driving- Narrow	£55.76 £46.47
8	MP579070 Available to backorder	Wheel Assy- 220mm BB MSV S	£44.50 £37.08
9	MP501703 Available to backorder	Washer Flat 6x14x1.2	£0.48 £0.40
10	MP501815 Available to backorder	Screw Set M6x35	£0.36 £0.30
11	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.36 £0.30
12	MP503831 Available to backorder	Nut M8 Nyloc 6 Thck	£0.72 £0.60
13	MP579207 Available to backorder	Hub Cap 220mm MSV SP Silver	£4.92 £4.10
14	MP782170 Available to backorder	Gear Box Single Speed	£143.26 £119.38
15	MP581092 Available to backorder	Pawl Pinion 950 SP	£2.98 £2.48
16	MP503759 In stock	Circlip 12 EXT DIN 471	£0.48 £0.40
17	MP501213 Available to backorder	Bearing 12x32x10 6201 2RS	£16.70 £13.92
18	MP581093 Available to backorder	Cap Pinion 950 SP Plastic	£11.04 £9.20
19	MP581090 Available to backorder	Pinion LH 950 SP	£47.46 £39.55
20	MP581091 Available to backorder	Pinion RH 950 SP	£47.46 £39.55
21	MP503102 Available to backorder	Washer Flat 12x20x0.4	£0.84 £0.70
22	MP982169 Available to backorder	Mount Gearbox	£20.96 £17.47
24	MP501702 Available to backorder	Screw Set M6x16	£0.44 £0.37
26	MP501764 Available to backorder	Nut M6 Nyloc 6 Thck	£0.35 £0.29
27	MP581626L In stock	Belt- V PIX 'X' TRA 800	£24.28 £20.23
29	MP503363 Available to backorder	Key- W.Ruff 5.8x3.16x1.4	£0.44 £0.37
30	MP503386 Available to backorder	Screw Grub M8x8	£0.44 £0.37
