Masport 575AL - 579971 - Feb 2009 > 7196694 - Wheel Assembly

Description

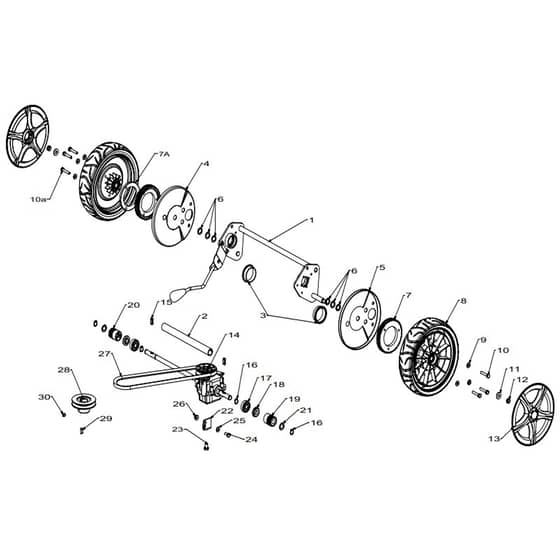

Masport 575AL Petrol Power Drive - Wheel Assembly Parts Diagram

Part Number: 579971

Model: 600 SP AL Combo

Engine Model: B&S Series675

Model Range: Feb 2009

Serial Number: > 7196694

	Part No.	Details
1	MP773416 Available to backorder	Axle Assy Rear Compl 18" SP	£64.08 £53.40
2	MP580614 Available to backorder	Sleeve Rear Axle SP	£6.54 £5.45
3	MP580091 Available to backorder	Bush- Pivot Rear Axle	£1.34 £1.12
4	MP579426 Available to backorder	Dust Cover RH	£5.44 £4.53
5	MP579427 Available to backorder	Dust Cover LH	£5.44 £4.53
6	MP503301 Available to backorder	Washer Flt 1.2x3.4x18G	£3.23 £2.69
7	MP569479 Available to backorder	(7A) Spacer Gear Driving	£15.97 £13.31
7	MP569180 Available to backorder	Gear Driving- Narrow	£50.98 £42.48
8	MP579070 Available to backorder	Wheel Assy- 220mm BB MSV SP	£42.83 £35.69
9	MP501703 Available to backorder	Washer Flat 6x14x1.2	£0.48 £0.40
10	MP503794 Available to backorder	(10A) Screw Set M6x40HT4.6HEX	£0.31 £0.26
10	MP501815 Available to backorder	Screw Set M6x35	£0.34 £0.28
11	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.37 £0.31
12	MP503831 Available to backorder	Nut M8 Nyloc 6 Thck	£0.72 £0.60
13	MP579207 Available to backorder	Hub Cap 220mm MSV SP Silver	£4.74 £3.95
14	MP782170 Available to backorder	Gear Box Single Speed	£137.16 £114.30
15	MP581092 Available to backorder	Pawl Pinion 950 SP	£2.86 £2.38
16	MP503759 In stock	Circlip 12 EXT DIN 471	£0.32 £0.27
17	MP501213 Available to backorder	Bearing 12x32x10 6201 2RS	£17.28 £14.40
18	MP581093 Available to backorder	Cap Pinion 950 SP Plastic	£11.46 £9.55
19	MP569178 Available to backorder	Pinion LH 12 Teeth	£32.92 £27.43
20	MP569179 Available to backorder	Pinion RH 12 Teeth	£32.92 £27.43
21	MP503102 Available to backorder	Washer Flat 12x20x0.4	£0.72 £0.60
22	MP982169 Available to backorder	Mount Gearbox	£20.17 £16.81
24	MP501702 Available to backorder	Screw Set M6x16	£0.41 £0.34
26	MP501764 Available to backorder	Nut M6 Nyloc 6 Thck	£0.31 £0.26
27	MP581626L In stock	Belt- V PIX 'X' TRA 800	£26.02 £21.68
29	MP500636 Available to backorder	Key- W.Ruff 5.8x5.32x1.4	£1.40 £1.17
29	MP503363 Available to backorder	Key- W.Ruff 5.8x3.16x1.4	£0.41 £0.34
30	MP503386 Available to backorder	Screw Grub M8x8	£0.41 £0.34
