Masport 575AL - 579971 - Feb 2009 > 7196694 - Main Assembly

Description

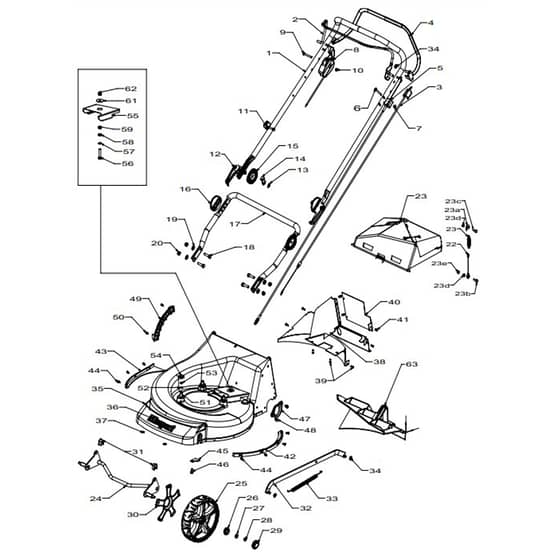

Masport 575AL Petrol Power Drive - Main Assembly Parts Diagram

Part Number: 579971

Model: 600 SP AL Combo

Engine Model: B&S Series675

Model Range: Feb 2009

Serial Number: > 7196694

Be the first to review this product

0 product questions

	Part No.	Details
1	MP781664 Available to backorder	Handle&Sleeve-Upper Adj SP OP	£63.74 £53.12
2	MP981740 Available to backorder	Bail Arm Assy OPC Flatnd	£21.30 £17.75
3	MP581656 In stock	Cable- Engine OPC Push On	£17.54 £14.62
4	MP982161 Available to backorder	Bail Arm Assy SP	£27.36 £22.80
5	MP765435 In stock	Cable- Clutch Thumb Wheel	£28.18 £23.48
6	MP503604 Available to backorder	Screw Pan M6x45 Poz ZP	£0.86 £0.72
7	MP501764 Available to backorder	Nut M6 Nylocx 6 Thck	£0.35 £0.29
8	MP583458 In stock	Control- Throttle Assy Wescon	£21.46 £17.88
11	MP703856 Available to backorder	Comfort Start Kit	£19.80 £16.50
12	MP980456 In stock	Cam Lock Assy	£10.78 £8.98
13	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.36 £0.30
14	MP581527 Available to backorder	Retainer- Clutch Cable	£0.72 £0.60
15	MP581660 Available to backorder	Disc- Locking Outer	£6.08 £5.07
16	MP581659 Available to backorder	Disc- Locking Inner	£6.42 £5.35
17	MP981712 Available to backorder	Handle- Lower "U" Adj 18"	£21.70 £18.08
18	MP501597 Available to backorder	Screw Set M8x25 Hex	£0.44 £0.37
20	MP501793 Available to backorder	Nut M8 Nylocx 8 Thck	£1.86 £1.55
21	MP767059 Available to backorder	Flap Assy- Smart Chute 18"	£55.22 £46.02
22	MP569731 Available to backorder	Cable Smart Chute	£0.34 £0.28
23	MP501682 Available to backorder	(23d) Nut M6	£2.60 £2.17
23	MP580268 Available to backorder	Spring Pedal	£1.30 £1.08
23	MP569732 Available to backorder	(23a) Bracket Smart Chute	£4.12 £3.43
23	MP501600 Available to backorder	(23b) Screw Set M6x20	£0.36 £0.30
23	MP501959 Available to backorder	(23c) Screw Set M6x12	£0.38 £0.32
24	MP983281 Available to backorder	Axle Assy Front 200mm Thrd	£33.66 £28.05
25	MP573706 Available to backorder	Wheel Assy- 200mm BB Mag Sil	£33.42 £27.85
26	MP551212 Available to backorder	• Bearing- Wheel Ball Type	£5.56 £4.63
28	MP503831 Available to backorder	Nut M8 Hex Nyloc 6 Thck	£0.72 £0.60
29	MP579204 Available to backorder	Hub Cap Button Mag Silver	£0.52 £0.43
30	MP579205 Available to backorder	Cover- Inner Wheel	£2.76 £2.30
31	MP580030 Available to backorder	Bush- Pivot Axle	£0.70 £0.58
32	MP981170 Available to backorder	Rod Assy Connecting SP	£28.34 £23.62
33	MP573844 Available to backorder	Spring Counter Balance SP	£7.64 £6.37
34	MP501365 Available to backorder	Clip- Starlock 5.16"	£0.46 £0.38
35	MP769117 Available to backorder	Housing Assy-AliT18"COSP Ttn	£291.00 £242.50
36	MP581240 Available to backorder	Nameplate	£7.08 £5.90
37	MP503150 Available to backorder	Clip- Starlock 5 Dia	£0.52 £0.43
38	MP571088 Available to backorder	• Tunnel Assy 18" SP.PUSH	£58.00 £48.33
40	MP573359 Available to backorder	• Tunnel- GBox Cover 18" Ali	£9.46 £7.88
41	MP503630 Available to backorder	• Screw S.T M4x10 Washer	£0.90 £0.75
42	MP973839 Available to backorder	Deflector- Air LH Plastic	£9.74 £8.12
43	MP581525 Available to backorder	Deflector- Air RH Plastic	£8.58 £7.15
45	MP980564 Available to backorder	• Plate- Retainer Front Axle 18"	£0.86 £0.72
46	MP501599 Available to backorder	• Screw S.T 1.4x5.8 Hex	£1.58 £1.32
47	MP581178 Available to backorder	Retainer Axle Rear	£7.74 £6.45
49	MP580025 Available to backorder	Quadrant Height Selector Plastic	£6.42 £5.35
51	MP580453 Available to backorder	Screw S.T 3.8x1-1.8 UNC TRIBLK	£2.32 £1.93
52	MP503747 Available to backorder	Washer Spg 8	£0.48 £0.40
54	MP983448 Available to backorder	Spacer- Base Honda	£3.26 £2.72
55	MP979080 Available to backorder	Cover- Belt 575 SP	£18.94 £15.78
56	MP501843 Available to backorder	Screw Set M8x40	£0.86 £0.72
58	MP501602 Available to backorder	Nut M8 Hex	£0.35 £0.29
61	MP572199 Available to backorder	Washer Flat 8x32x2.0	£1.36 £1.13
62	MP503526 Available to backorder	Nut M8 Hex Dome	£0.72 £0.60
63	MP573112 Available to backorder	Insert- Mulching 18"	£27.44 £22.87
