Masport 575AL - 579971 - Feb 2009 > 7196694 - 460mm Blade Assembly

Name: Masport 575AL - 579971 - Feb 2009 > 7196694 - 460mm Blade Assembly
SKU: 575al5799717196694460mmblade-group
Price: 0.26 GBP
Availability: InStock

Part No. 575al5799717196694460mmblade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 575AL - 579971 - Feb 2009 > 7196694 - 460mm Blade Assembly

Description

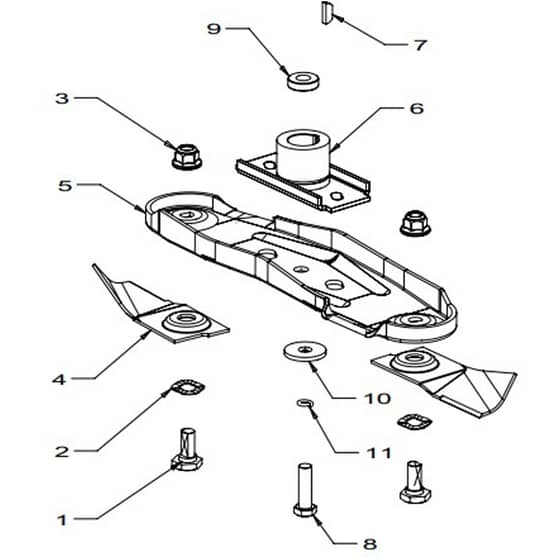

Masport 575AL Petrol Power Drive - 460mm Blade Assembly Parts Diagram

Part Number: 579971

Model: 600 SP AL Combo

Engine Model: B&S Series675

Model Range: Feb 2009

Serial Number: > 7196694

	Part No.	Details
1	MP581707 In stock	Bolt- Pivot M10x22 Blade	£2.41 £2.01
2	MP580693 In stock	Washer Wavy 13.4 x 24.2	£0.37 £0.31
3	MP503672 In stock	Nut Flange Nyloc M10	£0.36 £0.30
4	MP780658 Available to backorder	Blade Quick Cut - 460mm EU	£17.70 £14.75
5	MP980653 Available to backorder	Carrier Blade Quick Cut	£31.19 £25.99
6	MP031640 Available to backorder	Driver Assy-Blade - 25mm	£21.84 £18.20
6	MP014173 In stock	Driver Assy-Blade - 7.8" Shaft	£25.37 £21.14
7	MP503363 Available to backorder	Key Woodruff - 5.8" x 3.16" x 1.4"	£0.41 £0.34
8	MP581610 In stock	Screw Set NF 3.8" x 1.25 NYG8	£2.11 £1.76
9	MP583542 Available to backorder	Spacer- Driver Honda	£3.34 £2.78
10	MP503667 Available to backorder	Washer Flat 9.75 x 30 x 3	£1.14 £0.95
11	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
