Masport 575AL - 482949 - Sept 2015 > 7966585 - Handle

Description

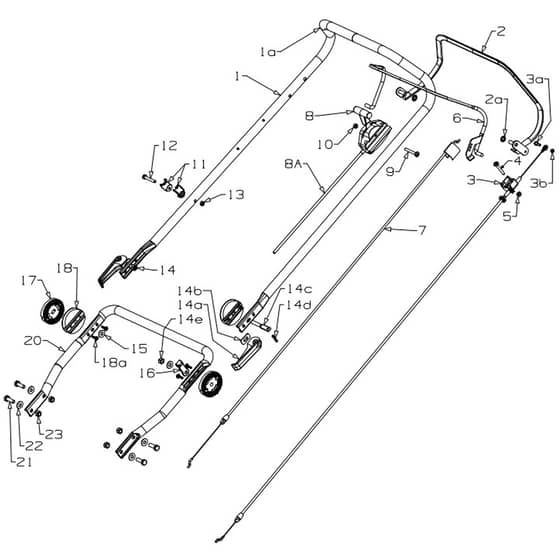

Masport 575AL Petrol Power Drive - Handle Parts Diagram

Part Number: 482949

Model: 575AL SP 3’n1 OPC 16

Engine Model: B&S Series 675EXi

Model Range: Sept 2015

Serial Number: > 7966585

	Part No.	Details
1	MP773805 Available to backorder	(1.1a) Handle & Sleeve Adj PVC.CHR	£43.09 £35.91
2	MP501365 Available to backorder	(2a) Clip- Starlock 5.16”	£0.48 £0.40
2	MP982161 Available to backorder	Bail Arm Assy SP RED	£28.26 £23.55
3	MP502237 In stock	(3a) Bolt Hex F.Head Shoulder M5	Was £14.74 £12.28 Special Price £10.57 £8.81
3	MP502238 Available to backorder	(3b) Nut M5 Hex Nyloc x 5mm thick	£0.34 £0.28
3	MP765434 In stock	Cable- Clutch Thumb Wheel G.B	£27.05 £22.54
4	MP503604 Available to backorder	Screw Pan M6 x 45 Poz ZP	£0.83 £0.69
5	MP501764 Available to backorder	Nut M6 Nyloc x 6mm thick	£0.31 £0.26
6	MP981740 Available to backorder	Bail Arm Assy OPC RED	£20.51 £17.09
7	MP581656 In stock	Cable- Engine OPC Push On	£18.80 £15.67
8	MP583460 Available to backorder	(8.8a) Throttle & Cable -VE LH CH”T”	£25.69 £21.41
9	MP503508 Available to backorder	Screw Pan M6 x 55 Poz ZP	£1.09 £0.91
11	MP703856 Available to backorder	Comfort Start Kit	£19.06 £15.88
12	MP503794 Available to backorder	Screw Set M6 x 40 Hex	£0.31 £0.26
14	MP016777 Available to backorder	(14b) Washer Slipper S.S	£0.72 £0.60
14	MP582419 Available to backorder	(14a) Lever- Handle Locking MSV	£4.74 £3.95
14	MP501793 Available to backorder	(14e) Nut M8 Hex Nyloc x 8mm thick	£1.92 £1.60
14	MP503369 Available to backorder	(14d) Pin Tension 5.0 x 22	£0.48 £0.40
14	MP569674 Available to backorder	(14c) Stud- Handle Lock 72mm	£2.94 £2.45
14	MP769674 Available to backorder	Cam Lock Assy Long (1 per)	£8.89 £7.41
15	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
16	MP581527 Available to backorder	Retainer- Clutch Cable	£0.72 £0.60
17	MP569673 Available to backorder	Disc- Locking Outer Thick	£8.23 £6.86
18	MP569770 Available to backorder	Disc- Locking Inner Thick	£8.23 £6.86
20	MP981712 Available to backorder	Handle- Lower “U” Adj 18”	£25.08 £20.90
