Masport 575AL - 467779 - Dec 2016 > 8104782 - Wheel Assembly

Description

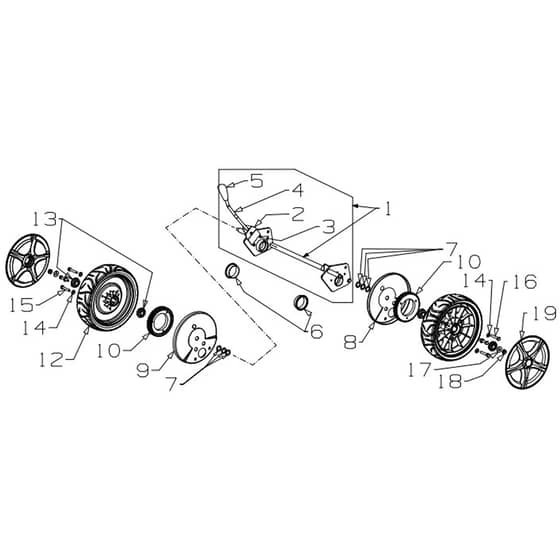

Masport 575AL Petrol Power Drive - Wheel Assembly Parts Diagram

Part Number: 467779

Model: 575 AL SP 3'n1 Instart

Engine Model: B&S Series 675EXi

Model Range: Dec 2016

Serial Number: > 8104782

Be the first to review this product

0 product questions

	Part No.	Details
1	MP767248 Available to backorder	Axle Assy- Rear Drive Flt SP	£67.28 £56.07
2	MP580649 Available to backorder	Spring Leaf	£5.62 £4.68
3	MP503373 Available to backorder	Rivet- F.HD 3.16x27.64	£0.96 £0.80
4	MP973681 Available to backorder	Rod- Height Selector	£2.98 £2.48
5	MP581729 Available to backorder	Knob- Height Lever	£3.12 £2.60
6	MP580091 Available to backorder	Bush- Pivot Rear Axle	£1.42 £1.18
7	MP503301 Available to backorder	Washer Flt 1.2x3.4x18	£3.36 £2.80
9	MP579426 Available to backorder	Dust Cover RH + LH MSV SP	£5.62 £4.68
10	MP569180 Available to backorder	Gear Driving 45 Teeth	£52.96 £44.13
12	MP579070 Available to backorder	Wheel Assy-220mm BB MSV SP	£44.50 £37.08
13	MP551212 Available to backorder	Bearing Wheel Ball Type	£5.56 £4.63
14	MP501703 Available to backorder	Washer Flat 6x14x1.2	£0.48 £0.40
15	MP501815 Available to backorder	Screw Set M6x35	£0.36 £0.30
17	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.36 £0.30
18	MP503831 Available to backorder	Nut M8 Nyloc 6 Thck	£0.72 £0.60
19	MP579207 Available to backorder	Hub Cap 220mm MSV SP Silver	£4.92 £4.10
