Masport 575AL - 467779 - Dec 2016 > 8104782 - Gearbox

Part No. 575al4677798104782gearbox-group
Masport 575AL - 467779 - Dec 2016 > 8104782 - Gearbox
Masport 575AL - 467779 - Dec 2016 > 8104782 - Gearbox

Description

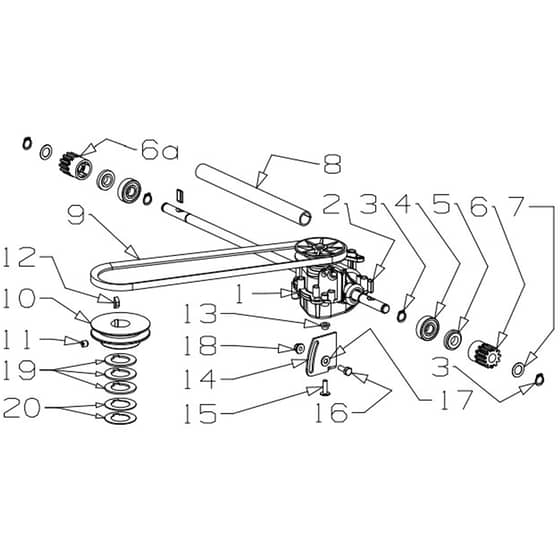

Masport 575AL Petrol Power Drive - Gearbox Parts Diagram

Part Number: 467779

Model: 575 AL SP 3'n1 Instart

Engine Model: B&S Series 675EXi

Model Range: Dec 2016

Serial Number: > 8104782

Ref. Img. Part No. Details
  1 Gearbox- Single Sp SP Syncro 9
Gearbox- Single Sp SP Syncro 9
MP574497
Available to backorder
Gearbox- Single Sp SP Syncro 9"18
£111.60 £93.00

  2 Pawl Pinion 950 SP
Pawl Pinion 950 SP
MP581092
Available to backorder
Pawl Pinion 950 SP
£2.86 £2.38

  3 Circlip 12 EXT DIN 471
Circlip 12 EXT DIN 471
MP503759
In stock
Circlip 12 EXT DIN 471
£0.32 £0.27

  4 Bearing 12x32x10 6201 2RS
Bearing 12x32x10 6201 2RS
MP501213
Available to backorder
Bearing 12x32x10 6201 2RS
£17.28 £14.40

  5 Cap Pinion 950 SP Plastic
Cap Pinion 950 SP Plastic
MP581093
Available to backorder
Cap Pinion 950 SP Plastic
£11.46 £9.55

  6 (6a) Pinion RH 12 Teeth
(6a) Pinion RH 12 Teeth
MP569179
Available to backorder
(6a) Pinion RH 12 Teeth
£32.92 £27.43

  6 Pinion LH 12 Teeth
Pinion LH 12 Teeth
MP569178
Available to backorder
Pinion LH 12 Teeth
£32.92 £27.43

  7 Washer Flat 12x20x0.4
Washer Flat 12x20x0.4
MP503102
Available to backorder
Washer Flat 12x20x0.4
£0.72 £0.60

  8 Sleeve Rear Axle MSV SP
Sleeve Rear Axle MSV SP
MP580614
Available to backorder
Sleeve Rear Axle MSV SP
£6.54 £5.45

  9 Belt-V No 6731 3L-787 Gates
Belt-V No 6731 3L-787 Gates
MP573810
Available to backorder
Belt-V No 6731 3L-787 Gates
£56.23 £46.86

  11 Screw Grub M8x8
Screw Grub M8x8
MP503386
Available to backorder
Screw Grub M8x8
£0.41 £0.34

  12 Key- W.Ruff 5.8x3.16x1.4
Key- W.Ruff 5.8x3.16x1.4
MP503363
Available to backorder
Key- W.Ruff 5.8x3.16x1.4
£0.41 £0.34

  13 Bush- G.Box Mount ST Syncro
Bush- G.Box Mount ST Syncro
MP564093
Available to backorder
Bush- G.Box Mount ST Syncro
£6.20 £5.17

  14 Mount- Gearbox 18
Mount- Gearbox 18
MP557459
In stock
Mount- Gearbox 18" ST SP
£16.66 £13.88

  15 Screw. S.Tapping #12 x 11.16
Screw. S.Tapping #12 x 11.16
MP503650
Available to backorder
Screw. S.Tapping #12 x 11.16"
£0.86 £0.72

  16 Screw Set M6x16
Screw Set M6x16
MP501702
Available to backorder
Screw Set M6x16
£0.41 £0.34

  17 Washer Flat 6x14x1.2
Washer Flat 6x14x1.2
MP501703
Available to backorder
Washer Flat 6x14x1.2
£0.48 £0.40

  18 Nut M6 Nyloc Flange
Nut M6 Nyloc Flange
MP503973
Available to backorder
Nut M6 Nyloc Flange
£0.41 £0.34

  19 Spacer- Pulley Eng 25 x 42 x 2
Spacer- Pulley Eng 25 x 42 x 2
MP569552
Available to backorder
Spacer- Pulley Eng 25 x 42 x 2
£3.40 £2.83

  20 Spacer- Pulley Eng 25 x 42 x 1
Spacer- Pulley Eng 25 x 42 x 1
MP573024
Available to backorder
Spacer- Pulley Eng 25 x 42 x 1
£0.41 £0.34


Description

Masport 575AL Petrol Power Drive - Gearbox Parts Diagram

Part Number: 467779

Model: 575 AL SP 3'n1 Instart

Engine Model: B&S Series 675EXi

Model Range: Dec 2016

Serial Number: > 8104782
