Masport 575AL - 467779 - Dec 2016 > 8104782 - 460mm Blade Assembly

Description

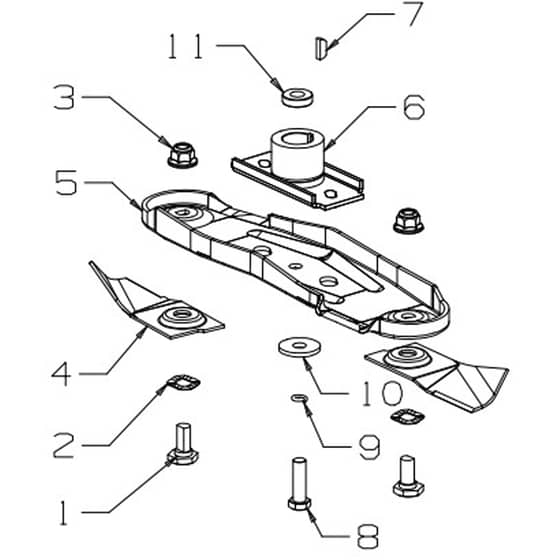

Masport 575AL Petrol Power Drive - 460mm Blade Assembly Parts Diagram

Part Number: 467779

Model: 575 AL SP 3'n1 Instart

Engine Model: B&S Series 675EXi

Model Range: Dec 2016

Serial Number: > 8104782

	Part No.	Details
1	MP581707 In stock	Bolt-Pivot M10 x 22	£2.41 £2.01
2	MP580693 In stock	Washer Wavy 13.4 x 24.2	£0.37 £0.31
3	MP503672 In stock	Nut M10 Hex Nyloc Flange	£0.36 £0.30
4	MP780658 Available to backorder	Blade Quick Cut - 460mm	£17.70 £14.75
5	MP980653 Available to backorder	Carrier- Blade QuickCut	£31.19 £25.99
6	MP031640 Available to backorder	Driver Assy-Blade 25mm	£21.84 £18.20
7	MP503363 Available to backorder	Key Woodruff-5.8" x 3.16" x 1.4"	£0.41 £0.34
8	MP581610 In stock	Screw. Set NF 3.8" x 1.5 NYG8	£2.11 £1.76
9	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
10	MP503667 Available to backorder	Washer Flat 9.75 x 30 x 3.0	£1.14 £0.95
11	MP573585 Available to backorder	Spacer- Blade Driver 22 x 4.0	£3.12 £2.60
