Masport 575AL - 465839 - Aug 2020 > 8479068 - 460mm Disc Blade- Wavy, Assembly

Name: Masport 575AL - 465839 - Aug 2020 > 8479068 - 460mm Disc Blade- Wavy, Assembly
SKU: 575al4658398479068460mmdiscbladewavy-group
Price: 0.25 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 575AL - 465839 - Aug 2020 > 8479068 - 460mm Disc Blade- Wavy, Assembly

Description

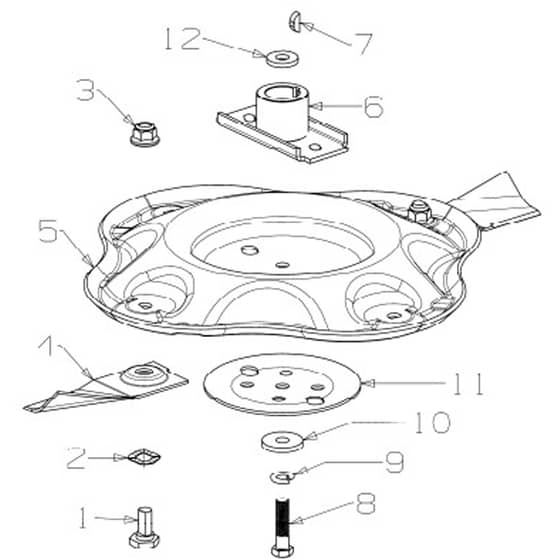

Masport 575AL Petrol Power Drive - 460mm Disc Blade- Wavy, Assembly Parts Diagram

Part Number: 465839

Model: 575AL SP 3’n1 OPC

Engine Model: B&S 675EXi

Model Range: Aug 2020

Serial Number: > 8479068

Be the first to review this product

0 product questions

	Part No.	Details
1	MP581707 Available to backorder	Bolt– Pivot M10 x 22	£2.28 £1.90
2	MP580693 In stock	Washer Wavy 13.4 x 24.2	£0.34 £0.28
3	MP503672 In stock	Nut M10 Hex Nyloc Flange	£0.32 £0.27
4	MP980658 In stock	Blade– Quick Cut 460mm EURO	£7.92 £6.60
5	MP783314 Available to backorder	KIT-Disc Blade Wavy	£54.86 £45.72
6	MP031640 Available to backorder	Driver Assy– Blade 25mm	£20.72 £17.27
7	MP503363 Available to backorder	Key Woodruff 5.8 x 3.16 x 1.4	£0.44 £0.37
8	MP581610 Available to backorder	Bolt	£1.96 £1.63
9	MP500204 Available to backorder	Washer Spring 3.8”	£0.30 £0.25
10	MP503855 Available to backorder	Washer Flat 9.75 x 30 x 4	£1.70 £1.42
11	MP567332 Available to backorder	Plate– Stiffener Disc Blade Assy	£17.54 £14.62
12	MP573585 Available to backorder	Spacer– Blade Driver 22 x 4	£3.26 £2.72
