Masport 575AL - 465787 - Nov 2019 - Wheel Assembly

Part No. 575al465787wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 575AL - 465787 - Nov 2019 - Wheel Assembly

Masport 575AL - 465787 - Nov 2019 - Wheel Assembly

Description

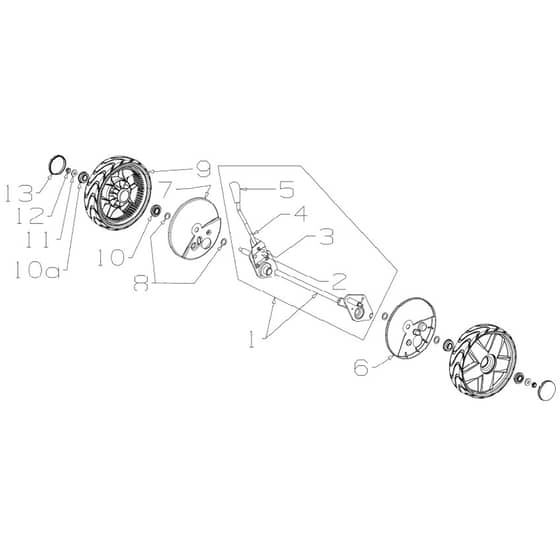

Masport 575AL Petrol Power Drive - Wheel Assembly Parts Diagram

Part Number: 465787

Model: 450 ST SP 2’n1 IS OPC19

Engine Model: B&S 475 IS

Model Range: Nov 2019

Serial Number: -

Ref.		Img.	Part No.	Details
	1		MP765496 Available to backorder	Axle Assy- Rear Drive 18"SP		£60.08 £50.07
	2		MP580649 Available to backorder	Spring Leaf		£5.44 £4.53
	3		MP503373 Available to backorder	Rivet-F.HD3.16"x27.64"		£0.94 £0.78
	4		MP973681 Available to backorder	Rod-Height Selector (MSV) ZP		£2.86 £2.38
	5		MP581729 Available to backorder	Knob- Height Lever MSV Black		£3.00 £2.50
	6		MP567597 Available to backorder	Cover Dust RH + LH 250 ST SP		£4.74 £3.95
	8		MP503301 Available to backorder	Washer. Flat 1.2 x 3.4 x 18G		£3.23 £2.69
	9		MP567568 Available to backorder	Wheel Assy-200mm SP Silver		£38.14 £31.78
	10		MP551212 Available to backorder	(10a) Bearing- Wheel		£5.75 £4.79
	11		MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6		£0.37 £0.31
	12		MP503831 Available to backorder	Nut M8 Hex Nyloc x 6mm thick		£0.72 £0.60
	13		MP579198 Available to backorder	Hub Cap- Button Spoked Silver		£0.83 £0.69

Description

Masport 575AL Petrol Power Drive - Wheel Assembly Parts Diagram

Part Number: 465787

Model: 450 ST SP 2’n1 IS OPC19

Engine Model: B&S 475 IS

Model Range: Nov 2019

Serial Number: -
