Masport 575AL - 465787 - Nov 2019 - Deck

Description

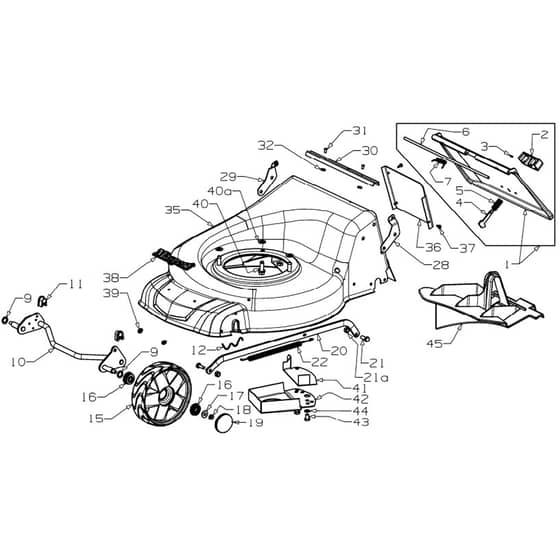

Masport 575AL Petrol Power Drive - Deck Parts Diagram

Part Number: 465787

Model: 450 ST SP 2’n1 IS OPC19

Engine Model: B&S 475 IS

Model Range: Nov 2019

Serial Number: -

	Part No.	Details
1	MP782200 Available to backorder	Flap Assembly- Plastic	£45.66 £38.05
2	MP580602 Available to backorder	Handle - Flap	£2.44 £2.03
5	MP581106 Available to backorder	Spring- Latch Flap	£1.09 £0.91
7	MP581349 Available to backorder	Spring- Flap 18” Stl	£2.48 £2.07
9	MP503301 Available to backorder	Washer. Flat 1.2 x 3.4 x 18g	£3.23 £2.69
10	MP565495 Available to backorder	Axle Assy- Front 18” SP	£25.22 £21.02
11	MP580030 In stock	Bush-Pivot Front Axle	£0.76 £0.63
12	MP529674 In stock	Retainer-Axle W Front	£0.50 £0.42
15	MP579196 Available to backorder	Wheel Assy-175mm Spkd Slvr	£29.75 £24.79
16	MP551212 Available to backorder	Bearing- Wheel	£5.75 £4.79
17	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
18	MP503831 Available to backorder	Nut M8 Hex Nyloc x 6mm thick	£0.72 £0.60
19	MP579198 Available to backorder	Hub Cap Button Spkd Slvr	£0.83 £0.69
20	MP567574 Available to backorder	Rod Assy- Connecting 18” SP	£16.76 £13.97
21	MP501793 Available to backorder	(21a) Nut M8 Hex Nyloc x 8mm thick	£1.92 £1.60
21	MP501597 Available to backorder	Screw Set M8 x 20	£0.41 £0.34
22	MP581463 Available to backorder	Spring-Counter Balance	£7.09 £5.91
30	MP583151 Available to backorder	Dust Seal- Flap	£2.48 £2.07
35	MP767596 Available to backorder	Housing- Stl T 18" XFQ SP TTNM	£164.76 £137.30
36	MP573131 Available to backorder	Tunnel- G.box Cover 18" ST	£16.84 £14.03
37	MP503630 Available to backorder	Screw S.T 10 x 0.4	£0.86 £0.72
38	MP581240 In stock	Nameplate MASPORT	£7.14 £5.95
39	MP503150 Available to backorder	Clip-Starlock 5 dia	£0.48 £0.40
40	MP580453 Available to backorder	Screw S.T 3. 8" x 1-1.8"	£2.23 £1.86
40	MP501704 Available to backorder	(40a) Washer. Flat 10 x 19 x 1.6	£0.41 £0.34
41	MP565280 Available to backorder	Cover- Belt SPV 18” Syncro	£18.49 £15.41
42	MP567412 Available to backorder	Cover- Belt SPV 21” Syncro	£23.06 £19.22
44	MP503747 Available to backorder	Washer Spring 8	£0.48 £0.40
45	MP573278 Available to backorder	Insert- Mulching 18" ST SP	£24.19 £20.16
