Masport 500AL - 579966 - Dec 2008 - Main Assembly

Masport 500AL - 579966 - Dec 2008 - Main Assembly
Masport 500AL - 579966 - Dec 2008 - Main Assembly

Description

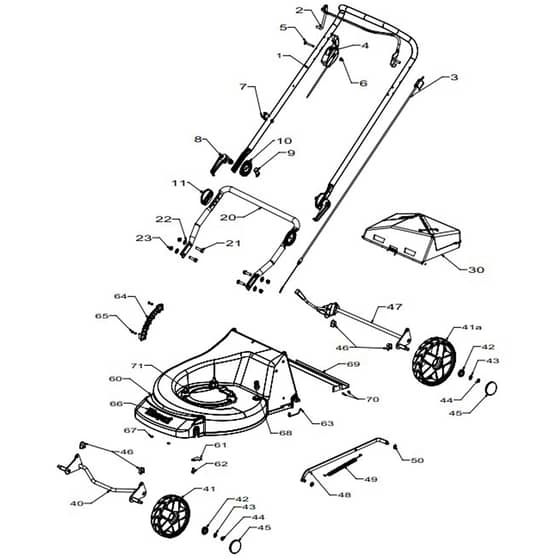

Masport 500AL Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 579966

Model: S18 500 AL

Engine Model: B & S Series 650

Model Range: Dec 2008

Serial Number: -

Ref. Img. Part No. Details
  1 Handle Assy Upt Adj OPC
Handle Assy Upt Adj OPC
MP781664 Out of stock
Handle Assy Upt Adj OPC
£63.74 £53.12

  2 Bail Arm Assy OPC Flatnd
Bail Arm Assy OPC Flatnd
MP981740 Out of stock
Bail Arm Assy OPC Flatnd
£21.30 £17.75

  3 Cable- Engine OPC Push On
Cable- Engine OPC Push On
MP581656 In stock
Cable- Engine OPC Push On
£18.84 £15.70

  4 Control Assy- Throttle Wescon
Control Assy- Throttle Wescon
MP583458 In stock
Control Assy- Throttle Wescon
£19.99 £16.66

  5 Screw Pan M6x45 Poz ZP
Screw Pan M6x45 Poz ZP
MP503604 Out of stock
Screw Pan M6x45 Poz ZP
£0.86 £0.72

  6 Nut M6 Nylocx 6 Thck
Nut M6 Nylocx 6 Thck
MP501764 Out of stock
Nut M6 Nylocx 6 Thck
£0.35 £0.29

  7 Comfort Start Kit 40mm
Comfort Start Kit 40mm
MP703856 Out of stock
Comfort Start Kit 40mm
£19.80 £16.50

  9 Retainer- Clutch Cable
Retainer- Clutch Cable
MP581527 Out of stock
Retainer- Clutch Cable
£0.72 £0.60

  10 Disc Locking Outer
Disc Locking Outer
MP581660 Out of stock
Disc Locking Outer
£6.08 £5.07

  11 Disc Locking Inner
Disc Locking Inner
MP581659 Out of stock
Disc Locking Inner
£6.42 £5.35

  20 Handle- Lower
Handle- Lower
MP981712 Out of stock
Handle- Lower "U" Adj
£22.45 £18.71

  21 Screw Set M8x20 Hex
Screw Set M8x20 Hex
MP501597 Out of stock
Screw Set M8x20 Hex
£0.44 £0.37

  22 Washer Flat 8x19x1.6
Washer Flat 8x19x1.6
MP501606 Out of stock
Washer Flat 8x19x1.6
£0.41 £0.34

  23 Nut M8 Hex Nyloc 8 Thck
Nut M8 Hex Nyloc 8 Thck
MP501793 Out of stock
Nut M8 Hex Nyloc 8 Thck
£0.62 £0.52

  40 Axle Assy Front 175mm Thrd
Axle Assy Front 175mm Thrd
MP983247 Out of stock
Axle Assy Front 175mm Thrd
£33.96 £28.30

  41 Wheel Assy- 175mm BB Spoked
Wheel Assy- 175mm BB Spoked
MP579196 Out of stock
Wheel Assy- 175mm BB Spoked
£30.90 £25.75

  41 (41a) Wheel Assy- 200mm BB Spoked
(41a) Wheel Assy- 200mm BB Spoked
MP579197 Out of stock
(41a) Wheel Assy- 200mm BB Spoked
£35.92 £29.93

  42 Bearing- Wheel Ball Type
Bearing- Wheel Ball Type
MP551212 Out of stock
Bearing- Wheel Ball Type
£5.98 £4.98

  44 Nut M8 Hex Nyloc 6 Thck
Nut M8 Hex Nyloc 6 Thck
MP503831 Out of stock
Nut M8 Hex Nyloc 6 Thck
£0.72 £0.60

  45 Hub Cap Button Spoked
Hub Cap Button Spoked
MP579198 Out of stock
Hub Cap Button Spoked
£0.86 £0.72

  46 Bush- Pivot Axle
Bush- Pivot Axle
MP580030 Out of stock
Bush- Pivot Axle
Was £0.72 £0.60 Special Price £0.56 £0.47

  47 Axle Assy- Rear Complete
Axle Assy- Rear Complete
MP783256 Out of stock
Axle Assy- Rear Complete
£41.36 £34.47

  48 Rod Assy Connecting 175mm
Rod Assy Connecting 175mm
MP581270 Out of stock
Rod Assy Connecting 175mm
£16.34 £13.62

  49 Spring Counter Balance
Spring Counter Balance
MP581463 Out of stock
Spring Counter Balance
£7.38 £6.15

  50 Clip- Starlock 5.16
Clip- Starlock 5.16
MP501365 Out of stock
Clip- Starlock 5.16"
£0.54 £0.45

  60 Housing Assy-Ali 18
Housing Assy-Ali 18
MP779371 Out of stock
Housing Assy-Ali 18" FS Ttnm
£249.48 £207.90

  61 Plate- Retainer Front Axle
Plate- Retainer Front Axle
MP980564 Out of stock
Plate- Retainer Front Axle
£0.86 £0.72

  62 Screw S.T 1.4x5.8 Hex
Screw S.T 1.4x5.8 Hex
MP501599 Out of stock
Screw S.T 1.4x5.8 Hex
£1.58 £1.32

  63 Retainer Axle Rear
Retainer Axle Rear
MP580225 Out of stock
Retainer Axle Rear
£0.72 £0.60

  64 Quadrant Height Selector
Quadrant Height Selector
MP580025 Out of stock
Quadrant Height Selector
£6.42 £5.35

  66 Nameplate- Masport
Nameplate- Masport
MP581240 Out of stock
Nameplate- Masport
£7.44 £6.20

  67 Clip- Starlock 5Dia
Clip- Starlock 5Dia
MP503150 Out of stock
Clip- Starlock 5Dia
£0.54 £0.45

  68 Cyclowash- Fitting
Cyclowash- Fitting
MP503783 Out of stock
Cyclowash- Fitting
£4.62 £3.85

  69 Brace- Rear
Brace- Rear
MP583267 Out of stock
Brace- Rear
£15.02 £12.52

  70 Rivet- Pop 4.0x7.9
Rivet- Pop 4.0x7.9
MP503226 Out of stock
Rivet- Pop 4.0x7.9
£0.35 £0.29

  71 Screw S.T 3.8x1-1.8 UNC TRIBLK
Screw S.T 3.8x1-1.8 UNC TRIBLK
MP580453 Out of stock
Screw S.T 3.8x1-1.8 UNC TRIBLK
£2.32 £1.93


Description

Masport 500AL Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 579966

Model: S18 500 AL

Engine Model: B & S Series 650

Model Range: Dec 2008

Serial Number: -
