Masport 500AL - 482948 - Dec 2015 < 7994351 - Deck

Description

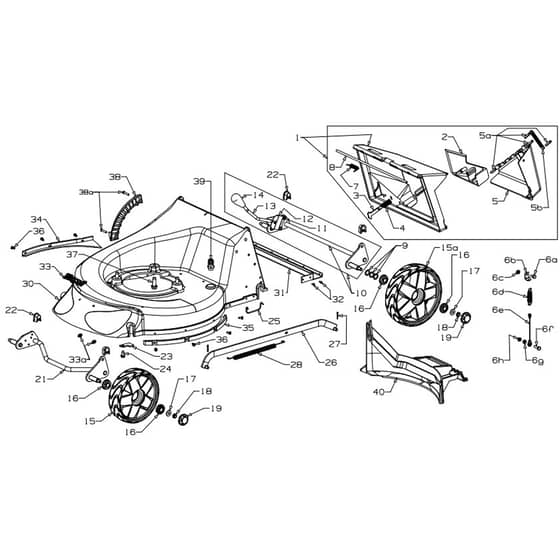

Masport 500AL Petrol Push Rotary Mower - Deck Parts Diagram

Part Number: 482948

Model: S18 500 AL 3'n1

Engine Model: B&S Series 675EXi

Model Range: Dec 2015

Serial Number: < 7994351

	Part No.	Details
1	MP767059 Available to backorder	Flap- Mower Side Discharge	£53.14 £44.28
2	MP581647 Available to backorder	Handle-Flap Side Discharge	£13.49 £11.24
3	MP981650 Available to backorder	Latch- Flap Barbed	£10.32 £8.60
4	MP581106 Available to backorder	Spring- Flap Latch	£1.09 £0.91
5	MP571095 Available to backorder	Flap-Door Side Red	£16.61 £13.84
5	MP581676 Available to backorder	(5a) Pin Tension 6.0 x 35	£1.28 £1.07
5	MP581648 Available to backorder	(5b) Spring-Flap Side Discharge	£2.23 £1.86
6	MP501600 Available to backorder	(6f) Screw Set M6 x 20	£0.34 £0.28
6	MP580268 Available to backorder	(6d) Spring- Pedal	£1.24 £1.03
6	MP501959 Available to backorder	(6a) Screw Set M6 x 12	£0.48 £0.40
6	MP569731 Available to backorder	(6e) Cable Smart Chute	£0.31 £0.26
6	MP501764 Available to backorder	(6h) Nut M6 Hex Nyloc x 6mm thick	£0.31 £0.26
6	MP501682 Available to backorder	(6g) Nut M6 Hex (Plain)	£2.48 £2.07
6	MP569732 Available to backorder	(6b) Bracket Smart Chute	£3.95 £3.29
7	MP581528 Available to backorder	Spring-Flap ALI	£2.28 £1.90
9	MP503301 Available to backorder	Washer Flat 1.2 x 3.4 x 18G	£3.23 £2.69
10	MP969398 Available to backorder	Axle Assy-Rear 18"	£39.79 £33.16
11	MP503373 Available to backorder	Rivet- F.HD 3.16x27.64"	£0.94 £0.78
12	MP580649 Available to backorder	Spring- Leaf	£5.44 £4.53
13	MP973681 Available to backorder	Rod- Height Selector	£2.86 £2.38
14	MP581729 Available to backorder	Knob-height Lever MSV	£3.00 £2.50
15	MP579196 Available to backorder	Wheel Assy-175mm Spkd Svr	£29.75 £24.79
15	MP579197 Available to backorder	(15a) Wheel Assy-200mm Spkd Svr	£34.57 £28.81
16	MP551212 Available to backorder	Bearing- Wheel	£5.75 £4.79
17	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
18	MP503831 Available to backorder	Nut Nyloc M8	£0.72 £0.60
19	MP579198 Available to backorder	Hub Cap Button Spkd Svr	£0.83 £0.69
21	MP983247 Available to backorder	Axle-Front 175 mm	£32.69 £27.24
22	MP580030 In stock	Bush-Pivot Axle	£0.76 £0.63
23	MP980564 Available to backorder	Retainer-Axle Front "Plate"	£0.83 £0.69
24	MP501599 Available to backorder	Screw S.T 1.4x5.8 Hex	£1.51 £1.26
25	MP580225 Available to backorder	Retainer-Axle Rear Ali Deck	£0.72 £0.60
27	MP501056 Available to backorder	Pin Cotter 2.3 x 16	£0.48 £0.40
28	MP581463 Available to backorder	Spring-Counter Balance	£7.09 £5.91
31	MP583267 Available to backorder	Brace - Rear 18"	£14.46 £12.05
33	MP567406 Available to backorder	Nameplate- "MASPORT" MSV	£5.80 £4.83
33	MP503150 Available to backorder	(33a) Clip-Starlock 5mm dia	£0.48 £0.40
34	MP581525 Available to backorder	Deflector Air RH	£8.28 £6.90
35	MP581524 Available to backorder	Deflector Air LH	£8.34 £6.95
36	MP503630 Available to backorder	Screw S.T 10x .4 Typ B	£0.86 £0.72
37	MP580453 Available to backorder	Screw Set NF 3.8x1-1.8 UNC	£2.23 £1.86
38	MP580025 Available to backorder	Quadrant-Height Selector	£6.64 £5.53
39	MP503783 Available to backorder	Cyclowash- Fitting	£4.46 £3.72
40	MP583105 Available to backorder	Insert- Plug Mulching	£15.23 £12.69
