Masport 500AL - 482948 - Dec 2015 < 7994351 - 460mm Quick Cut Blade Assembly

Description

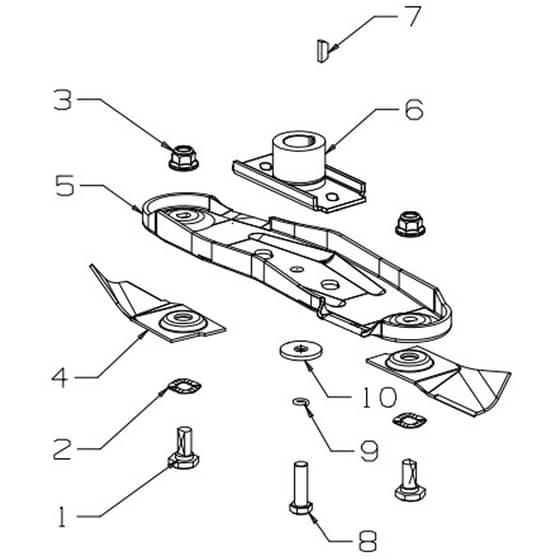

Masport 500AL Petrol Push Rotary Mower - 460mm Quick Cut Blade Assembly Parts Diagram

Part Number: 482948

Model: S18 500 AL 3'n1

Engine Model: B&S Series 675EXi

Model Range: Dec 2015

Serial Number: < 7994351

	Part No.	Details
1	MP581707 In stock	Bolt-Blade	£2.41 £2.01
2	MP580693 In stock	Washer Wavy 13.4 x 24.2	£0.37 £0.31
3	MP503672 In stock	Nut Flange Nyloc M10	£0.36 £0.30
4	MP780658 Available to backorder	Blade Quick Cut - 460mm	£17.70 £14.75
5	MP980653 Available to backorder	Carrier- Blade QuickCut	£31.19 £25.99
6	MP031640 Available to backorder	Driver Assy-Blade - 25mm Shaft	£21.84 £18.20
7	MP503363 Available to backorder	Key Woodruff-5.8" x 3.16" x 1.4"	£0.41 £0.34
8	MP581610 In stock	Bolt	£2.11 £1.76
9	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
10	MP503667 Available to backorder	Washer Flat 9.75 x 30 x 3.0	£1.14 £0.95
