Masport 500AL - 479910 - Sept 2007 > 7074798 - Main Assembly

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 500AL - 479910 - Sept 2007 > 7074798
- Main Assembly

Description

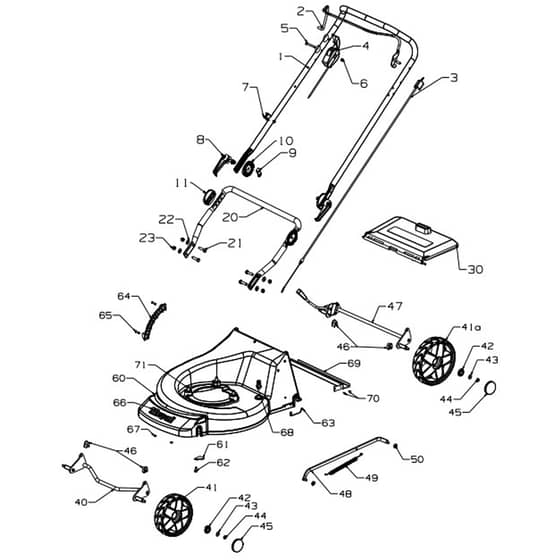

Masport 500AL Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 479910

Model: S18 500 AL

Engine Model: B & S Series 675

Model Range: Sept 2007

Serial Number: > 7074798

Be the first to review this product

0 product questions

	Part No.	Details
1	MP781664 Out of stock	Handle Assy Upt Adj OPC	£63.74 £53.12
2	MP981740 Out of stock	Bail Arm Assy OPC Flatnd	£21.30 £17.75
3	MP581656 Out of stock	Cable- Engine OPC Push On	£18.84 £15.70
4	MP583458 In stock	Control Assy- Throttle Wescon	£19.99 £16.66
5	MP503604 Out of stock	Screw Pan M6x45 Poz ZP	£0.86 £0.72
6	MP501764 Out of stock	Nut M6 Nylocx 6 Thck	£0.35 £0.29
7	MP703856 Out of stock	Comfort Start Kit 40mm	£19.80 £16.50
9	MP581527 Out of stock	Retainer- Clutch Cable	£0.72 £0.60
10	MP581660 Out of stock	Disc Locking Outer	£6.08 £5.07
11	MP581659 Out of stock	Disc Locking Inner	£6.42 £5.35
20	MP981712 Out of stock	Handle- Lower "U" Adj	£22.45 £18.71
21	MP501597 Out of stock	Screw Set M8x20 Hex	£0.44 £0.37
22	MP501606 Out of stock	Washer Flat 8x19x1.6	£0.41 £0.34
23	MP501793 Out of stock	Nut M8 Hex Nyloc 8 Thck	£0.62 £0.52
30	MP782200 Out of stock	Flap Assy Plastic	£47.08 £39.23
40	MP983247 Out of stock	Axle Assy Front 175mm Thrd	£33.96 £28.30
41	MP579196 Out of stock	Wheel Assy- 175mm BB Spoked	£30.90 £25.75
41	MP579197 Out of stock	(41a) Wheel Assy- 200mm BB Spoked	£35.92 £29.93
42	MP551212 Out of stock	Bearing- Wheel Ball Type	£5.98 £4.98
44	MP503831 Out of stock	Nut M8 Hex Nyloc 6 Thck	£0.72 £0.60
45	MP579198 Out of stock	Hub Cap Button Spoked	£0.86 £0.72
46	MP580030 Out of stock	Bush- Pivot Axle	Was £0.72 £0.60 Special Price £0.56 £0.47
47	MP783256 Out of stock	Axle Assy- Rear Complete	£41.36 £34.47
48	MP581270 Out of stock	Rod Assy Connecting 175mm	£16.34 £13.62
49	MP581463 Out of stock	Spring Counter Balance	£7.38 £6.15
50	MP501365 Out of stock	Clip- Starlock 5.16"	£0.54 £0.45
60	MP779371 Out of stock	Housing Assy-Ali 18" FS Ttnm	£249.48 £207.90
61	MP980564 Out of stock	Plate- Retainer Front Axle	£0.86 £0.72
62	MP501599 Out of stock	Screw S.T 1.4x5.8 Hex	£1.58 £1.32
63	MP580225 Out of stock	Retainer Axle Rear	£0.72 £0.60
64	MP580025 Out of stock	Quadrant Height Selector	£6.42 £5.35
66	MP581240 Out of stock	Nameplate- Masport	£7.44 £6.20
67	MP503150 Out of stock	Clip- Starlock 5Dia	£0.54 £0.45
68	MP503783 Out of stock	Cyclowash- Fitting	£4.62 £3.85
69	MP583267 Out of stock	Brace- Rear	£15.02 £12.52
70	MP503226 Out of stock	Rivet- Pop 4.0x7.9	£0.35 £0.29
71	MP580453 Out of stock	Screw S.T 3.8x1-1.8 UNC TRIBLK	£2.32 £1.93
