Masport 500AL - 479910 - Sept 2007 > 7074798
- 460mm Quick Cut Blade Assembly

Description

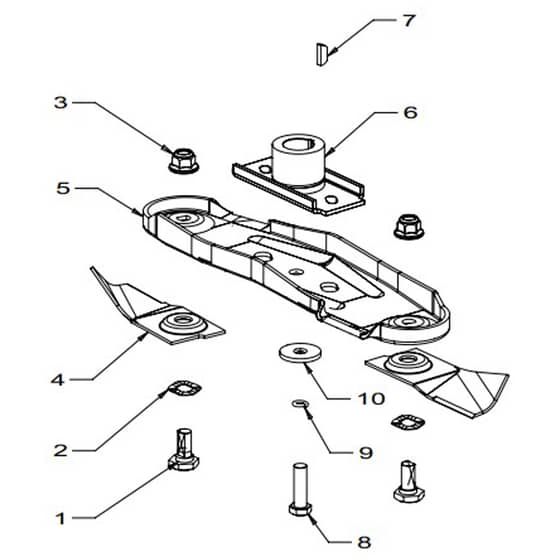

Masport 500AL Petrol Push Rotary Mower - 460mm Quick Cut Blade Assembly Parts Diagram

Part Number: 479910

Model: S18 500 AL

Engine Model: B & S Series 675

Model Range: Sept 2007

Serial Number: > 7074798

	Part No.	Details
1	MP581707 In stock	Bolt-Blade	£2.41 £2.01
2	MP580693 In stock	Washer Wavy 13.4 x 24.2	£0.37 £0.31
3	MP503672 In stock	Nut Flange Nyloc M10	£0.36 £0.30
4	MP780658 Available to backorder	Blade Quick Cut - 460mm	£17.70 £14.75
5	MP980653 Available to backorder	Carrier- Blade Quick Cut	£31.19 £25.99
6	MP031640 Available to backorder	Driver Assy- Blade 25mm	£21.84 £18.20
7	MP503363 Available to backorder	Key Woodruff - 5.8"x3.16"x1.4"	£0.41 £0.34
8	MP581610 In stock	Screw Set NF 3.8" x 1.25 NYG8	£2.11 £1.76
9	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
10	MP503667 Available to backorder	Washer Flat 9.75 x 30 x 3.0	£1.14 £0.95
