Masport 500AL - 465773 - May 2019 8355034 - Handle

Name: Masport 500AL - 465773 - May 2019 8355034 - Handle
SKU: 500al4657738355034handle-group
Price: 0.26 GBP
Availability: InStock

Part No. 500al4657738355034handle-group

Description

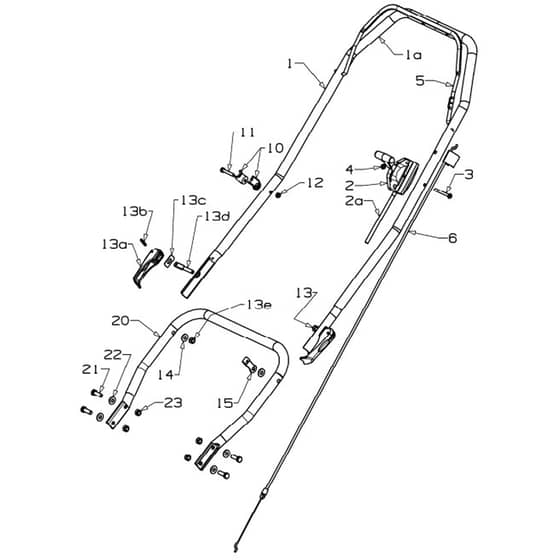

Masport 500AL Petrol Push Rotary Mower - Handle Parts Diagram

Part Number: 465773

Model: 500AL 3’n1 OPC 19

Engine Model: B&S 675EXi

Model Range: May 2019

Serial Number: 8355034

	Part No.	Details
1	MP765397 Available to backorder	Handle	£15.20 £12.67
2	MP583460 Available to backorder	(2.2a) Throttle Ctrl & Cable -VE CH”T”	£25.69 £21.41
3	MP503508 Available to backorder	Screw Pan M6 x 55 Poz	£1.09 £0.91
4	MP501764 Available to backorder	Nut M6 Hex Nyloc x 6mm thick	£0.31 £0.26
6	MP581656 In stock	Cable- Engine OPC Push On	£18.80 £15.67
10	MP703856 Available to backorder	Comfort Start Kit	£19.06 £15.88
11	MP503794 Available to backorder	Screw Set M6 x 40 Hex	£0.31 £0.26
13	MP016777 Available to backorder	(13c) Washer- Slipper S.S	£0.72 £0.60
13	MP503369 Available to backorder	(13b) Pin Tension 5 x 22	£0.48 £0.40
13	MP582419 Available to backorder	(13a) Lever- Handle Locking MSV	£4.74 £3.95
13	MP501793 Available to backorder	(13e) Nut M8 Hex Nyloc x 8mm thick	£1.92 £1.60
13	MP779755 Available to backorder	Cam Lock Assembly (1 per)	£10.78 £8.98
14	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
15	MP581527 Available to backorder	Retainer-Control Cable Handle	£0.72 £0.60
20	MP981257 Available to backorder	Handle-Lower “U” 18”	£4.49 £3.74
