Masport 500AL - 465773 - May 2019 8355034 - 460mm Blade Assembly

Name: Masport 500AL - 465773 - May 2019 8355034 - 460mm Blade Assembly
SKU: 500al4657738355034460mmblade-group
Price: 0.26 GBP
Availability: InStock

Part No. 500al4657738355034460mmblade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 500AL - 465773 - May 2019 8355034 - 460mm Blade Assembly

Description

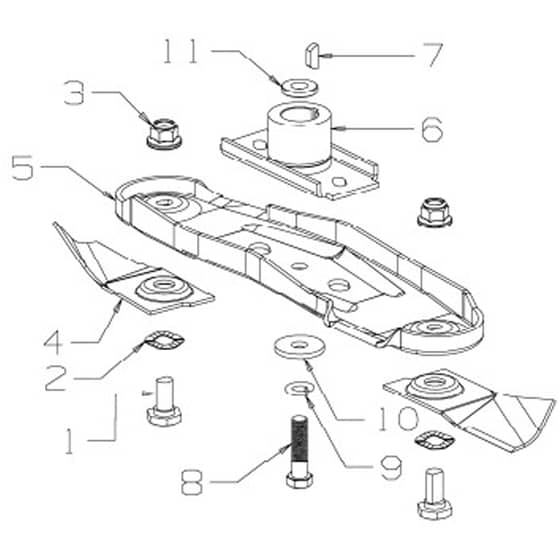

Masport 500AL Petrol Push Rotary Mower - 460mm Blade Assembly Parts Diagram

Part Number: 465773

Model: 500AL 3’n1 OPC 19

Engine Model: B&S 675EXi

Model Range: May 2019

Serial Number: 8355034

	Part No.	Details
1	MP581707 In stock	Bolt- Pivot M10 x 22	£2.41 £2.01
2	MP580693 In stock	Washer Wavy 13.4 x 24.2	£0.37 £0.31
3	MP503672 In stock	Nut M10 Hex Nyloc Flange	£0.36 £0.30
4	MP780658 Available to backorder	Blade- Quick Cut 460mm Euro	£17.70 £14.75
5	MP980653 Available to backorder	Carrier- Blade Quick Cut	£31.19 £25.99
6	MP031640 Available to backorder	Driver Assy-Blade 25mm	£21.84 £18.20
7	MP503363 Available to backorder	Key Woodruff-5.8" x 3.16" x 1.4"	£0.41 £0.34
8	MP581610 In stock	Bolt	£2.11 £1.76
9	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
10	MP503667 Available to backorder	Washer Flat 9.75 x 30 x 3.0	£1.14 £0.95
11	MP501704 Available to backorder	Washer Flat 10 x 19 x 1.6	£0.41 £0.34
