Masport 500 - 019091 - Nov 2011 7412516 - Chassis Assembly

Description

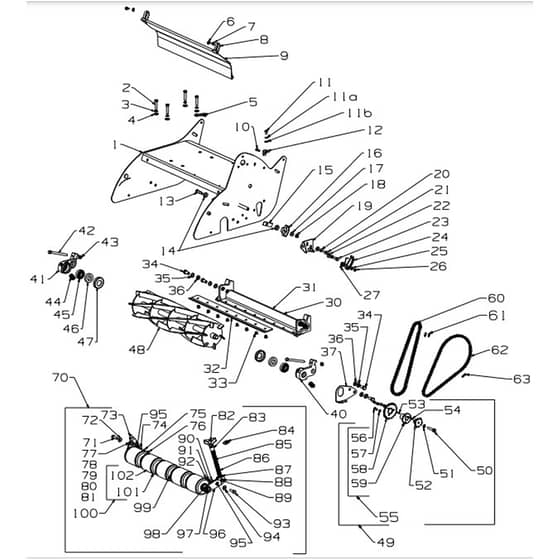

Masport 500 Petrol Cylinder - Chassis Assembly Parts Diagram

Part Number: 019091

Model: R/MWR 500 PRR

Engine Model: B&S 3.5 IC

Model Range: Nov 2011

Serial Number: 7412516

	Part No.	Details
1	MP031590 Available to backorder	Chassis Assy- 500 Green	£175.80 £146.50
2	MP501843 Available to backorder	Screw Set M8x40 Hex	£0.83 £0.69
3	MP503747 Available to backorder	Washer Spg 8	£0.48 £0.40
4	MP501606 Available to backorder	Washer Flt 8x19x1.6	£0.37 £0.31
5	MP581527 Available to backorder	Retainer Clutch Cable	£0.72 £0.60
6	MP503591 Available to backorder	Screw Pan M6x12	£0.31 £0.26
7	MP501703 Available to backorder	Washer Flt 6x14x1.2	£0.48 £0.40
8	MP002589 Available to backorder	Bracket Grass Chute	£1.86 £1.55
9	MP008901 Available to backorder	Deflector Grass- 500	£59.17 £49.31
10	MP501702 Available to backorder	Screw Set M6x16 Hex	£0.41 £0.34
12	MP031915 Available to backorder	Bracket- Chain Cover	£2.86 £2.38
13	MP002848 Available to backorder	Bolt- Adjuster Chain	£19.03 £15.86
15	MP002845 Available to backorder	Sealplate- Chain Adjuster	£0.86 £0.72
16	MP002844 In stock	Adjuster- Chain Fixed Nylon	£3.37 £2.81
18	MP501793 Available to backorder	Nut M8 Hex Nyloc 8 Thck	£1.92 £1.60
19	MP004942 Available to backorder	Plate Assy Mounting	£16.09 £13.41
23	MP501597 Available to backorder	Screw Set M8x20 Hex	£0.41 £0.34
24	MP004963 Available to backorder	Adjuster- Chain Tension Nylon	£4.06 £3.38
26	MP501764 Available to backorder	Nut M6 Hex Nyloc 6 Thck	£0.31 £0.26
27	MP004945 Available to backorder	Spring	£2.14 £1.78
31	MP009862 Available to backorder	Bracket Assy Backplate 500	£87.72 £73.10

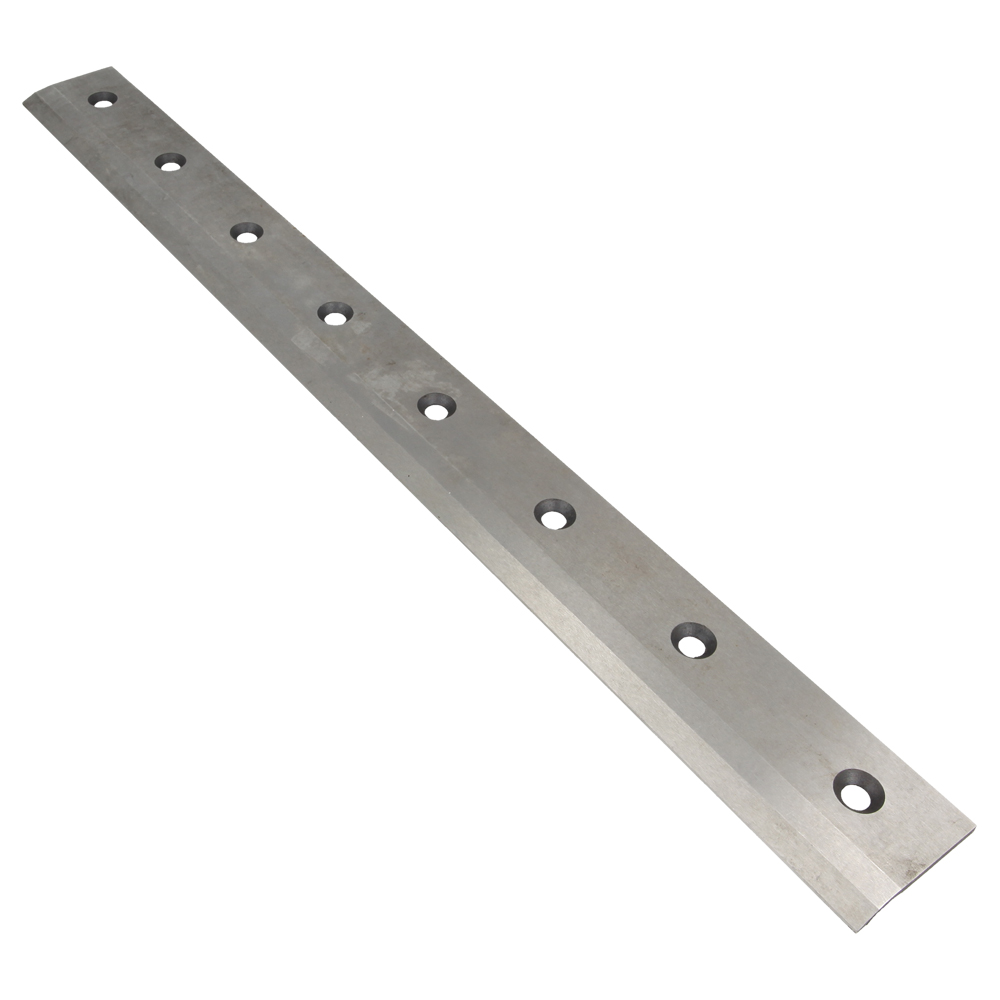

32	MP009873 Available to backorder	Blade Baseplate 500	£139.56 £116.30
33	MP008611 In stock	Screw CSK M8x10 Allen Head	£0.96 £0.80
35	MP503897 Available to backorder	Washer Spg 10	£0.48 £0.40
36	MP501704 Available to backorder	Washer Flt 10x19x1.6	£0.41 £0.34
37	MP002561 Available to backorder	Plate- Seal Chaincase	£2.46 £2.05
40	MP032023 Available to backorder	Housing- Assy Bearing LH	£43.76 £36.47
42	MP006282 Available to backorder	Bolt Set NF 5.16"x4" Hex	£5.80 £4.83
44	MP002581 Available to backorder	Spring- Baseplate	£2.14 £1.78
45	MP503273 Available to backorder	Bearing Ball 17x40x12 6203 2S	£22.61 £18.84
47	MP005211 Available to backorder	Cover- Dust Cylinder Bearing	£3.97 £3.31
48	MP032014 Available to backorder	Cylinder & Assy Cut Key 500	£316.49 £263.74
52	MP032002 Available to backorder	Sproket 10T	£34.32 £28.60
55	MP032045 Available to backorder	Sprocket Assy - 23 Key	£72.96 £60.80
58	MP032003 Available to backorder	Sproket 23T	£43.76 £36.47
60	MP002835 In stock	Chain 0.23xP 3.8 75P	£30.54 £25.45
61	MP731972 In stock	Link Chain 3.8	£7.32 £6.10
62	MP004299 Available to backorder	Chain 0.205xP 1.2 59P	£35.81 £29.84
63	MP731971 Available to backorder	Link Chain 1.2	£7.06 £5.88
70	MP005014 Available to backorder	Spindle & Brkt Assy 500	£166.20 £138.50
73	MP004983 Available to backorder	Bracket- Front Roller RH	£9.29 £7.74
76	MP501602 Available to backorder	Nut M8 Hex	£0.31 £0.26
82	MP574230 Available to backorder	Knob- Plastic M8 Insert	£4.28 £3.57
83	MP031910 Available to backorder	Spacer- Knob	£3.25 £2.71
84	MP004973 Available to backorder	Plate Slipper	£1.40 £1.17
85	MP004988 Available to backorder	Spindle- Adj Front Roller	£5.42 £4.52
86	MP004691 Available to backorder	Spring- Height Adjust	£3.48 £2.90
88	MP004990 Available to backorder	Spindle Trunnion	£8.17 £6.81
95	MP004991 Available to backorder	Bush- Pivot Front Roller	£3.31 £2.76
96	MP004984 Available to backorder	Bracket Assy- Adj Front Roller	£17.98 £14.98
97	MP004977 Available to backorder	Spindle Assy Front 500	£37.86 £31.55
99	MP501432 Available to backorder	Washer Flt 20x33x4.0	£2.14 £1.78
100	MP031911 Available to backorder	Roller Front Assy 1	£31.76 £26.47
101	MP005478 Available to backorder	Cap-End 72.3	£12.08 £10.07
