Masport 500 - 019086 - Jan 2011 7411242 - Handle Assembly

Description

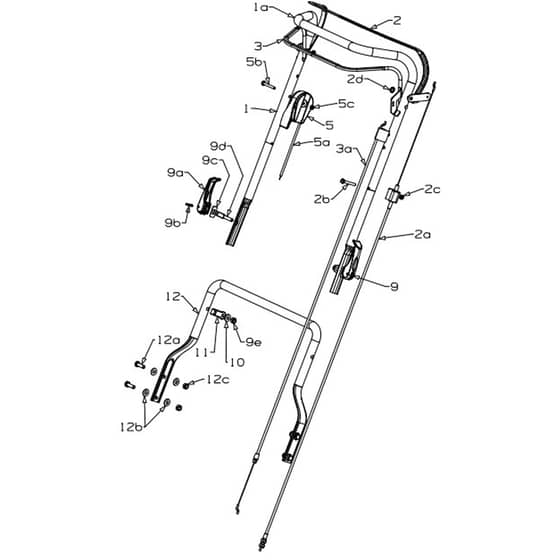

Masport 500 Petrol Cylinder - Handle Assembly Parts Diagram

Part Number: 019086

Model: 500 - Golf OPC

Engine Model: Honda GX160

Model Range: Jan 2011

Serial Number: 7411242

	Part No.	Details
1	MP773155 Available to backorder	(1.1a) Handle & Sleeve Upt R.MWR	£34.86 £29.05
2	MP031990 In stock	(2a) Cable-Clutch Reel Mower	£30.35 £25.29
2	MP982161 Available to backorder	Bail Arm Assy SP	£28.26 £23.55
2	MP501365 Available to backorder	(2d) Clip- Starlock 5.16"	£0.48 £0.40
2	MP501764 Available to backorder	(2c) Nut-M6 Nyloc	£0.31 £0.26
3	MP981740 Available to backorder	Bail Arm Assy OPC	£20.51 £17.09
3	MP031878 Available to backorder	(3a) Cable- Eng OPC Reel Mower	£23.88 £19.90
5	MP503604 Available to backorder	(5b) Screw Pan M6 x 45	£0.83 £0.69
5	MP583458 In stock	(5.5a) Control- Throttle Hsng Wscn	£19.93 £16.61
9	MP501793 Available to backorder	(9e) Nut M8 Hex Nylocx Thck	£1.92 £1.60
9	MP016777 Available to backorder	(9c) Washer Slipper	£0.72 £0.60
9	MP503369 Available to backorder	(9b) Pin Tension 5.0 x 25	£0.48 £0.40
9	MP582419 Available to backorder	(9a) Lever- Handle Locking	£4.74 £3.95
10	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
11	MP581527 Available to backorder	Retainer- Clutch Cable	£0.72 £0.60
12	MP501597 Available to backorder	(12a) Screw Set M8 x 20	£0.41 £0.34
12	MP031849 Available to backorder	Handle- Lower 500	£33.17 £27.64
