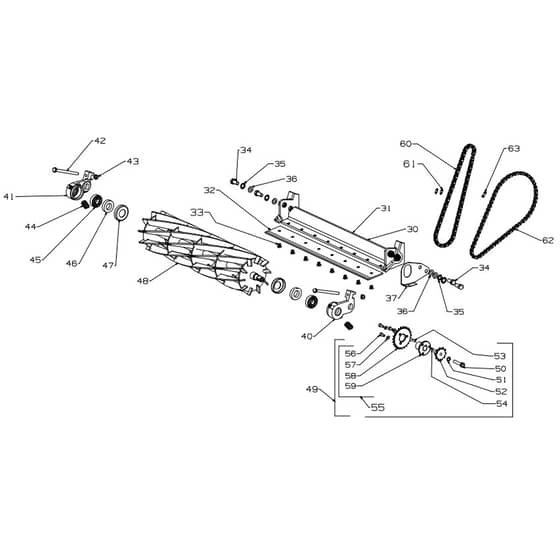

Masport 500 - 019053 - Aug 2010 7353386 - Reel Assembly

Masport 500 - 019053 - Aug 2010 7353386 - Reel Assembly

Part No. 5000190537353386reel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 500 - 019053 - Aug 2010 7353386 - Reel Assembly

Masport 500 - 019053 - Aug 2010 7353386 - Reel Assembly

Description

Masport 500 Petrol Cylinder - Reel Assembly Parts Diagram

Part Number: 019053

Model: 500 - Golf OPC

Engine Model: Intec 60 IC

Model Range: Aug 2010

Serial Number: 7353386

Ref.		Img.	Part No.	Details
	31		MP009862 Available to backorder	Bracket Assy Backplate 500		£87.72 £73.10

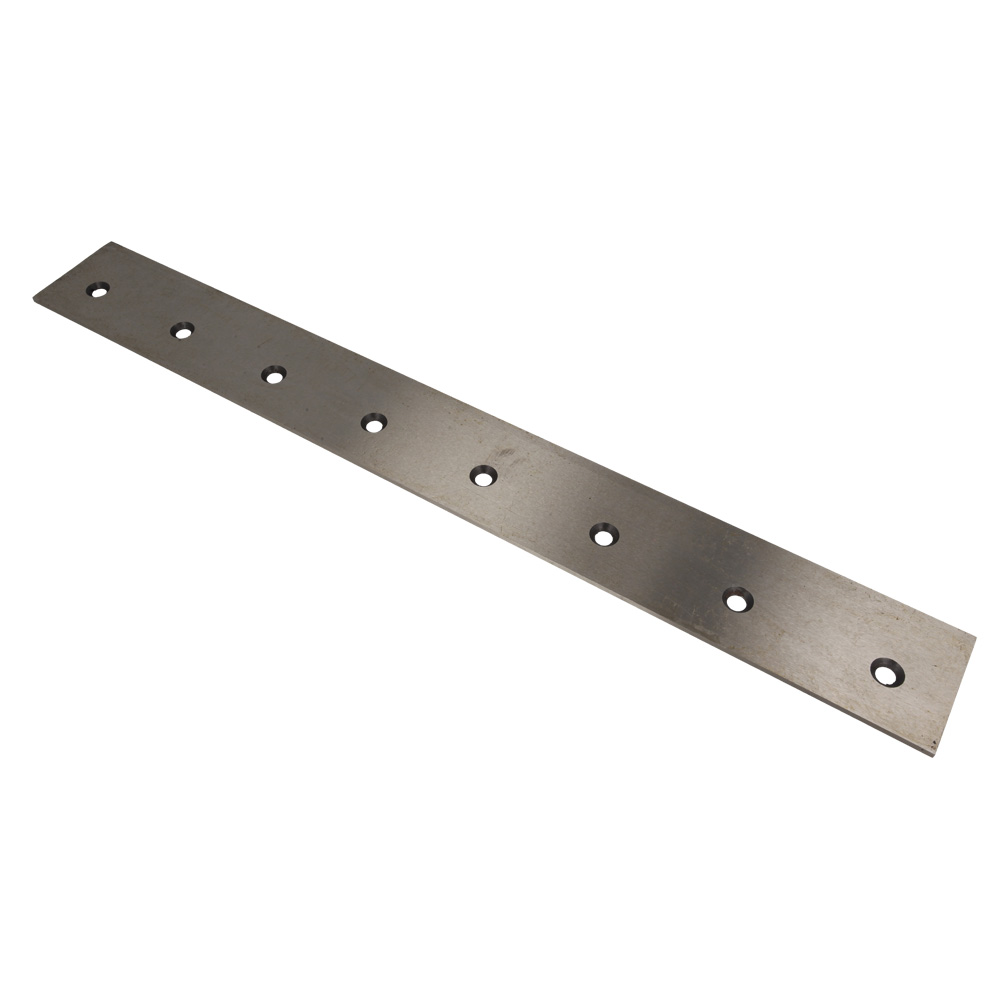

	32		MP032021 Available to backorder	Bottom Blade		£163.44 £136.20
	33		MP008611 In stock	Screw CSK M8x10 Allen Head		£0.96 £0.80
	35		MP503897 Available to backorder	Washer Spg 10		£0.48 £0.40
	36		MP501704 Available to backorder	Washer Flt 10x19x1.6		£0.41 £0.34
	37		MP002561 Available to backorder	Plate- Seal Chaincase		£2.46 £2.05
	40		MP032023 Available to backorder	Housing- Assy Bearing LH		£43.76 £36.47
	42		MP006282 Available to backorder	Bolt Set NF 5.16"x4" Hex		£5.80 £4.83
	44		MP002581 Available to backorder	Spring- Baseplate		£2.14 £1.78
	45		MP503273 Available to backorder	Bearing Ball 17x40x12 6203 2S		£22.61 £18.84
	47		MP005211 Available to backorder	Cover- Dust Cylinder Bearing		£3.97 £3.31
	50		MP501843 Available to backorder	Set Screw M8 x 40		£0.83 £0.69
	51		MP503747 Available to backorder	Washer Spg 8		£0.48 £0.40
	52		MP032002 Available to backorder	Sproket 10T		£34.32 £28.60
	55		MP032045 Available to backorder	Sprocket Assy - 23 Key		£72.96 £60.80
	58		MP032003 Available to backorder	Sprocket 23T		£43.76 £36.47
	60		MP032044 In stock	Chain- 0.23xP 3.8" 76P		£21.19 £17.66
	61		MP731972 In stock	Link- Chain 3.8"		£7.32 £6.10
	62		MP004299 Available to backorder	Chain- 0.205x P 1.2" 59P		£35.81 £29.84
	63		MP731971 Available to backorder	Link- Chain 1.2"		£7.06 £5.88

Description

Masport 500 Petrol Cylinder - Reel Assembly Parts Diagram

Part Number: 019053

Model: 500 - Golf OPC

Engine Model: Intec 60 IC

Model Range: Aug 2010

Serial Number: 7353386
