Masport 500 - 019053 - Aug 2010 7353386 - MSV Handle Assembly

Name: Masport 500 - 019053 - Aug 2010 7353386 - MSV Handle Assembly
SKU: 5000190537353386msvhandle-group
Price: 0.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 500 - 019053 - Aug 2010 7353386 - MSV Handle Assembly

Description

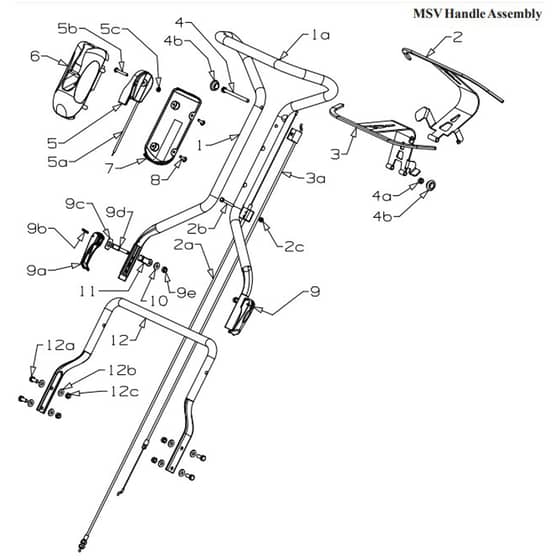

Masport 500 Petrol Cylinder - MSV Handle Assembly Parts Diagram

Part Number: 019053

Model: 500 - Golf OPC

Engine Model: Intec 60 IC

Model Range: Aug 2010

Serial Number: 7353386

Be the first to review this product

0 product questions

	Part No.	Details
1	MP731847 Available to backorder	(1.1a) Handle Upper Assembly R.MWR	£65.08 £54.23
2	MP031990 In stock	(2a) Cable-Clutch Reel Mower	£28.32 £23.60
2	MP503604 Available to backorder	(2b) Screw-Pan M6 x 45	£0.86 £0.72
2	MP579279 Available to backorder	Bail Arm Assy SP MSV	£53.44 £44.53
3	MP581655 In stock	(3a) Cable- Eng OPC Reel Mower	£27.42 £22.85
3	MP979278 Available to backorder	Bail Arm Assy OPC MSV	£56.76 £47.30
4	MP501793 Available to backorder	(4a) Nut-M8 Nyloc	£1.86 £1.55
4	MP503883 Available to backorder	Bolt Hex M8 x 100	£7.34 £6.12
4	MP503882 Available to backorder	(4b) Grommet Blanking 3.4"19mm	£6.42 £5.35
5	MP583458 In stock	(5.5a) Control- Throttle Hsng Wscn	£21.46 £17.88
5	MP501764 Available to backorder	(5c) Nut M6 Nylocx 6 Thck	£0.35 £0.29
6	MP983351 Available to backorder	Mount Throttle Top Plain	£20.30 £16.92
7	MP583340 Available to backorder	Cover Throttle Bottom	£10.66 £8.88
8	MP503650 Available to backorder	Screw. S.T #12 x 11.16"	£1.14 £0.95
9	MP779755 In stock	Cam Lock Assembly	£10.06 £8.38
9	MP503369 Available to backorder	(9b) Pin Tension 5.0 x 22	£0.48 £0.40
9	MP016777 Available to backorder	(9c) Washer Slipper	£0.68 £0.57
9	MP582419 Available to backorder	(9a) Lever- Handle Locking	£4.92 £4.10
10	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.36 £0.30
11	MP581527 Available to backorder	Retainer- Clutch Cable	£0.72 £0.60
12	MP031849 Available to backorder	Handle- Lower 500	£32.62 £27.18
12	MP501597 Available to backorder	(12a) Screw Set M8 x 20	£0.44 £0.37
