Masport 400AL - 583771 - Oct 2006 - Main Assembly

Description

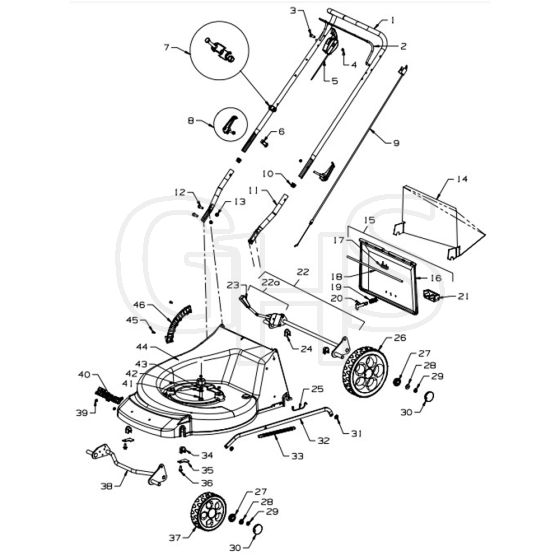

Masport 400AL Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 583771

Model: S18 400 AL

Engine Model: Quattro 40

Model Range: Oct 2006

Serial Number: -

	Part No.	Details
1	MP781265 Available to backorder	Handle-Upper Upturned OPC Blk	£29.20 £24.33
2	MP981740 Available to backorder	Bail Arm Assy OPC Flatd Blkp.C	£20.51 £17.09
3	MP501764 Available to backorder	Nut M6 Hex Nyloc	£0.31 £0.26
4	MP503604 Available to backorder	Screw Pan M 6X 45 POZ ZP	£0.83 £0.69
5	MP583458 In stock	Control-Throttle -Ve.Ch Wescon	£19.93 £16.61
6	MP581527 Available to backorder	Retainer-Control Cable-Handle	£0.72 £0.60
7	MP703856 Available to backorder	Comfort Start Kit	£19.06 £15.88
8	MP980456 In stock	(8c) • Lever-Handle Locking	£11.56 £9.63
8	MP016777 Available to backorder	(8a) • Washer-Slipper S.S	£0.72 £0.60
8	MP503369 Available to backorder	(8b) • Pin.Tension 3.16X 7.8" ZP	£0.48 £0.40
9	MP581656 In stock	Cable-Engine Opc Push On 950	£18.80 £15.67
10	MP503319 Available to backorder	Plug-22Mm Black Plastic	£0.72 £0.60
11	MP980692 Available to backorder	Handle-Lower Stub Black	£9.31 £7.76
13	MP501793 Available to backorder	Nut M 8 Hex Nyloc X 8Thk ZP	£1.92 £1.60
14	MP783470 Available to backorder	Grass Shute Assm (Optional Extr	£159.12 £132.60
15	MP782200 Available to backorder	Flap Assm Plastic	£45.66 £38.05
17	MP581528 Available to backorder	• Spring-Flap	£2.28 £1.90
18	MP581743 Available to backorder	• Wire-Rod Flap Pivot 352 X 6 ZP	£2.86 £2.38
19	MP581106 Available to backorder	• Spring-Flap Latch	£1.09 £0.91
20	MP981650 Available to backorder	• Latch-Flap Barbed ZP	£10.32 £8.60
21	MP580602 Available to backorder	• Handle-Flap	£2.44 £2.03
22	MP783256 Available to backorder	Axel Assm Rear	£39.79 £33.16
22	MP980229 Available to backorder	(22a) • Rod-Height Selector ZP	£13.31 £11.09
23	MP580056 Available to backorder	• Grip-Height Lever 7.9Dia Black	£1.09 £0.91
24	MP580030 In stock	Bush-Pivot Axle	£0.76 £0.63
25	MP580225 Available to backorder	Retainer-Wire Axle	£0.72 £0.60
26	MP579197 Available to backorder	(26a) Wheel Assy-200mm BB Spoke Sil	£34.57 £28.81
26	MP579193 Available to backorder	Wheel Assy-200mm PB 5 Hole Sil	£24.35 £20.29
27	MP551212 Available to backorder	Bearing Wheel	£5.75 £4.79
28	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6 ZP	£0.37 £0.31
29	MP503831 Available to backorder	Nut M 8 Hex Nyloc X 6Thk ZP	£0.72 £0.60
30	MP579194 Available to backorder	Hub Cap-Button 5 Hole PB -Silver	£0.79 £0.66
30	MP579198 Available to backorder	(30a) Hub Cap-Button Spoked-Silver	£0.83 £0.69
31	MP501365 Available to backorder	Clip-Starlock 5.16"	£0.48 £0.40
32	MP580404 Available to backorder	Rod Assy-Connecting 150Mm ZP	£16.54 £13.78
33	MP581463 Available to backorder	Spring-Counter Balance Non Sp	£7.09 £5.91
35	MP980564 Available to backorder	Plate-Retainer Axle Front	£0.83 £0.69
36	MP501599 Available to backorder	Screw S.T 1.4" x 5.8"	£1.51 £1.26
37	MP579191 Available to backorder	Wheel Assy-150mm PB 5 Hole Sil	£16.08 £13.40
37	MP579195 Available to backorder	(37a) Wheel Assy-150mm BB Spoke Sil	£25.84 £21.53
38	MP983246 Available to backorder	Axle Assy-Front 150Mm Thrd ZP	£32.15 £26.79
39	MP503150 Available to backorder	Clip-Starlock 5 Dia	£0.48 £0.40
40	MP581240 In stock	“Nameplate Masport Blk.White	£7.14 £5.95
41	MP580453 Available to backorder	Screw.S.T 3.8x1-1.8 UNCHWHTTZ	£2.23 £1.86
43	MP503747 Available to backorder	Washer Spring 8mm	£0.48 £0.40
44	MP779371 Available to backorder	Housing-Assy Euro Titanium	£255.12 £212.60
46	MP580025 Available to backorder	Quadrant-Height Selector	£6.64 £5.53
