Masport 350ST - 569816 - Mar 2009 > 7198877 - 460mm Quick Cut Blade Assembly

Name: Masport 350ST - 569816 - Mar 2009 > 7198877 - 460mm Quick Cut Blade Assembly
SKU: 350st5698167198877460mmquickcutblade-group
Price: 0.26 GBP
Availability: InStock

Part No. 350st5698167198877460mmquickcutblade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 350ST - 569816 - Mar 2009 > 7198877 - 460mm Quick Cut Blade Assembly

Description

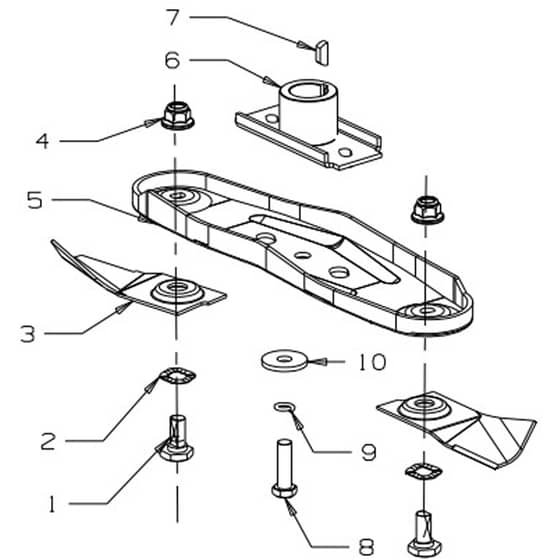

Masport 350ST Petrol Power Drive - 460mm Quick Cut Blade Assembly Parts Diagram

Part Number: 569816

Model: 350 ST SP Combo

Engine Model: B & S Series 500

Model Range: Mar 2009

Serial Number: > 7198877

	Part No.	Details
1	MP581707 In stock	Bolt-Blade	£2.41 £2.01
2	MP580693 In stock	Washer Wavy 13.4 x 24.2	£0.37 £0.31
3	MP780658 Available to backorder	Blade Quick Cut - 460mm	£17.70 £14.75
4	MP503672 In stock	Nut Flange Nyloc M10	£0.36 £0.30
5	MP980653 Available to backorder	Carrier Blade Quick Cut	£31.19 £25.99
6	MP014173 In stock	Driver Assy-Blade - 7.8	£25.37 £21.14
7	MP500636 Available to backorder	Key Woodruff - 5.8" x 5.32" x 1.4"	£1.40 £1.17
8	MP581610 In stock	Screw Set NF 3.8" x 1.25 NYG8	£2.11 £1.76
9	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
10	MP503667 Available to backorder	Washer Flat 9.75 x 30 x 4	£1.14 £0.95
