Masport 350ST - 465806 - Apr 2020 > 8445824 - Wheel Assembly

Name: Masport 350ST - 465806 - Apr 2020 > 8445824 - Wheel Assembly
SKU: 350st4658068445824wheel-group
Price: 0.31 GBP
Availability: InStock

Part No. 350st4658068445824wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 350ST - 465806 - Apr 2020 > 8445824 - Wheel Assembly

Description

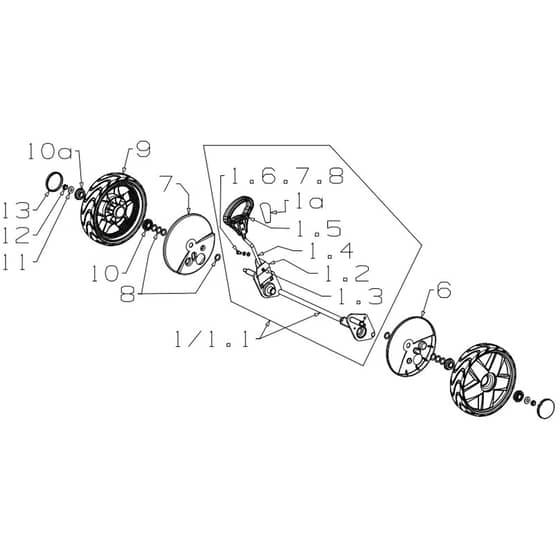

Masport 350ST Petrol Power Drive - Wheel Assembly Parts Diagram

Part Number: 465806

Model: 350ST SP 2’n1 OPC 19

Engine Model: B&S Series 500E

Model Range: Apr 2020

Serial Number: > 8445824

	Part No.	Details
1	MP568770 Available to backorder	Rod-Height Selector 18”.21” V2	£7.86 £6.55
1	MP503373 Available to backorder	Rivet- F.HD 3.16” x 27.64”	£0.94 £0.78
1	MP580649 Available to backorder	Spring Leaf	£5.44 £4.53
1	MP581729 Available to backorder	(1a) Knob- Height Lever MSV	£3.00 £2.50
1	MP765496 Available to backorder	Axle Assy Rear Drive 18” MSV	£60.08 £50.07
2	MP501330 Available to backorder	Washer Flat 5 x 10 x 1.0	£1.14 £0.95
2	MP501765 Available to backorder	Washer Spg 5	£0.48 £0.40
2	MP501059 Available to backorder	Screw Pan M5 x 12	£0.71 £0.59
2	MP568771 Available to backorder	Handle- Height Lever Adjust V2	£10.60 £8.83
6	MP567597 Available to backorder	Cover Dust RH + LH 250 ST SP	£4.74 £3.95
8	MP503301 Available to backorder	Washer. Flat 1.2 x 3.4 x 18G	£3.23 £2.69
9	MP567568 Available to backorder	Wheel Assy-200 SP Spoked Silver	£38.14 £31.78
10	MP551212 Available to backorder	(10a) Bearing-Wheel	£5.75 £4.79
11	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
12	MP503831 Available to backorder	Nut M8 Hex Nyloc x 6mm thick	£0.72 £0.60
13	MP579198 Available to backorder	Hub Cap-Button Spoked Silver	£0.83 £0.69
