Masport 300ST - 583785 - Main Assembly

Name: Masport 300ST - 583785 - Main Assembly
SKU: 300st583785main-group
Price: 0.26 GBP
Availability: InStock

Part No. 300st583785main-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

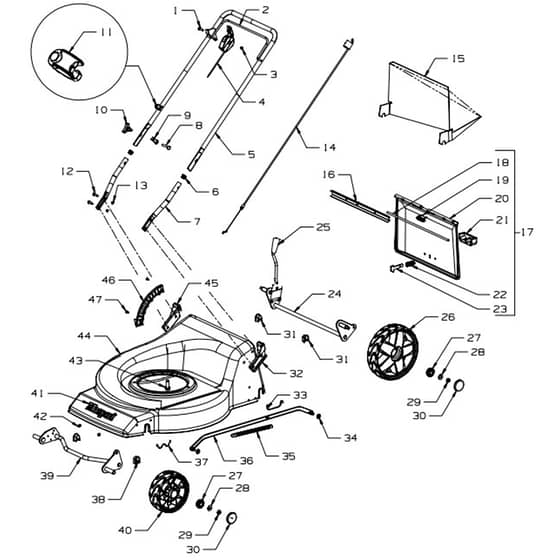

Masport 300ST Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 583785

Model: S18 300 ST

Engine Model: B&S Classic 35

Model Range: -

Serial Number: -

	Part No.	Details
1	MP503604 Available to backorder	Screw Pan M6 x 45	£0.83 £0.69
2	MP981740 Available to backorder	(2a) Bail-Handle Upturned	£20.51 £17.09
2	MP583034 Available to backorder	Bail-Handle Flat	£17.81 £14.84
3	MP501764 Available to backorder	Nut Nyloc M6	£0.31 £0.26
4	MP583458 In stock	Control-Throttle +Ve N.Ch	£19.93 £16.61
5	MP781265 Available to backorder	(5a) Upper-Handle Upturned - Bk.	£29.20 £24.33
6	MP503319 Available to backorder	Plug-Plastic 22mm - Black	£0.72 £0.60
7	MP980692 Available to backorder	Handle-Lower "Stub" - Black	£9.31 £7.76
8	MP574218 Available to backorder	Bolt SPH M8 x 53 x 35	£1.66 £1.38
9	MP581527 Available to backorder	Retainer-Control Cable Handle	£0.72 £0.60
10	MP574230 Available to backorder	Knob-Plastic M8 assm	£4.28 £3.57
11	MP782546 Available to backorder	Kit - Comfort Start	£16.08 £13.40
13	MP501793 Available to backorder	Nut Nyloc M8 Hex ZP	£1.92 £1.60
14	MP581656 In stock	Cable-Engine - OPC Push On	£18.80 £15.67
15	MP783470 Available to backorder	Grass Defector (Optional)	£159.12 £132.60
16	MP583151 Available to backorder	Dust Seal Flap-plastic	£2.48 £2.07
17	MP782200 Available to backorder	Flap Assy-Rear Plastic	£45.66 £38.05
18	MP581743 Available to backorder	• Wire-6mm x 352mm Flap Pivot	£2.86 £2.38
19	MP581349 Available to backorder	• Spring-Flap	£2.48 £2.07
21	MP580602 Available to backorder	• Handle-Flap	£2.44 £2.03
22	MP581106 Available to backorder	• Spring-Latch Flap	£1.09 £0.91
23	MP981650 Available to backorder	• Latch-Flap Barbed	£10.32 £8.60
25	MP580056 Available to backorder	• Grip Height-Lever	£1.09 £0.91
26	MP579197 Available to backorder	Wheel Assy-Rear 200mm	£34.57 £28.81
27	MP551212 Available to backorder	• Bearing-Wheel (2 per Wheel)	£5.75 £4.79
28	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
29	MP503831 Available to backorder	Nut-Nyloc M8	£0.72 £0.60
30	MP579198 Available to backorder	Hub Cap-Button	£0.83 £0.69
31	MP580668 Available to backorder	Bush-Pivot Rear Axle	£0.72 £0.60
32	MP980666 Available to backorder	Bracket-Flap LH	£4.82 £4.02
33	MP580225 Available to backorder	Retainer-clip Rear axle	£0.72 £0.60
34	MP501365 Available to backorder	Clip-Starlock 5.16"	£0.48 £0.40
35	MP581463 Available to backorder	Spring-Counter Balance	£7.09 £5.91
36	MP580404 Available to backorder	Rod Assy-Connecting 150mm	£16.54 £13.78
37	MP529674 In stock	Retainer-Clip "W" Front axle	£0.50 £0.42
38	MP580030 In stock	Bush-Pivot Front Axle	£0.76 £0.63
39	MP983246 Available to backorder	Axle-Front 150mm	£32.15 £26.79
40	MP579195 Available to backorder	Wheel Assy-Front 150mm	£25.84 £21.53
41	MP581240 In stock	Nameplate. "Masport"	£7.14 £5.95
42	MP503150 Available to backorder	Clip-Starlock 5 Dia	£0.48 £0.40
43	MP580453 Available to backorder	Screw Motor S.T 3. 8" x 1 1.8"	£2.23 £1.86
45	MP980667 Available to backorder	Bracket-Flap RH	£4.82 £4.02
46	MP580025 Available to backorder	Quadrant-Height Selector	£6.64 £5.53
