Masport 300ST - 583785 - 460mm Quick Cut Blade Assembly

Name: Masport 300ST - 583785 - 460mm Quick Cut Blade Assembly
SKU: 300st583785460mmquickcutblade-group
Price: 0.26 GBP
Availability: InStock

Part No. 300st583785460mmquickcutblade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 300ST - 583785 - 460mm Quick Cut Blade Assembly

Description

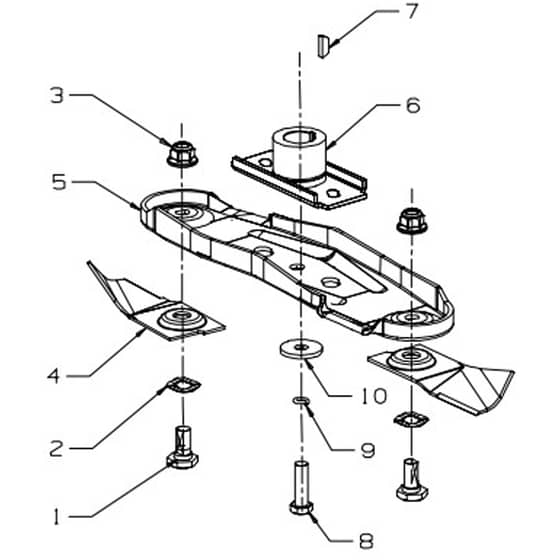

Masport 300ST Petrol Push Rotary Mower - 460mm Quick Cut Blade Assembly Parts Diagram

Part Number: 583785

Model: S18 300 ST

Engine Model: B&S Classic 35

Model Range: -

Serial Number: -

	Part No.	Details
1	MP581707 In stock	• Bolt-Blade	£2.41 £2.01
2	MP580693 In stock	• Washer Wavy 13.4x24.2x.51	£0.37 £0.31
3	MP780658 Available to backorder	• Blade QuickCut - 460mm	£17.70 £14.75
4	MP503672 In stock	• Nut Flange Nyloc M10	£0.36 £0.30
5	MP980653 Available to backorder	Carrier-Blade	£31.19 £25.99
6	MP014173 In stock	Driver Assy-Blade - 22mm Shaft	£25.37 £21.14
6	MP031640 Available to backorder	((6a)) Driver Assy-Blade - 25mm Shaft	£21.84 £18.20
7	MP500636 Available to backorder	Key Woodruff - 5.8" x 5.32" x 1.4"	£1.40 £1.17
7	MP503363 Available to backorder	((7a)) Key Woodruff - 5.8" x 3.16" x 1.4"	£0.41 £0.34
8	MP581610 In stock	Screw Set NF 3.8" x 1.25	£2.11 £1.76
9	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26

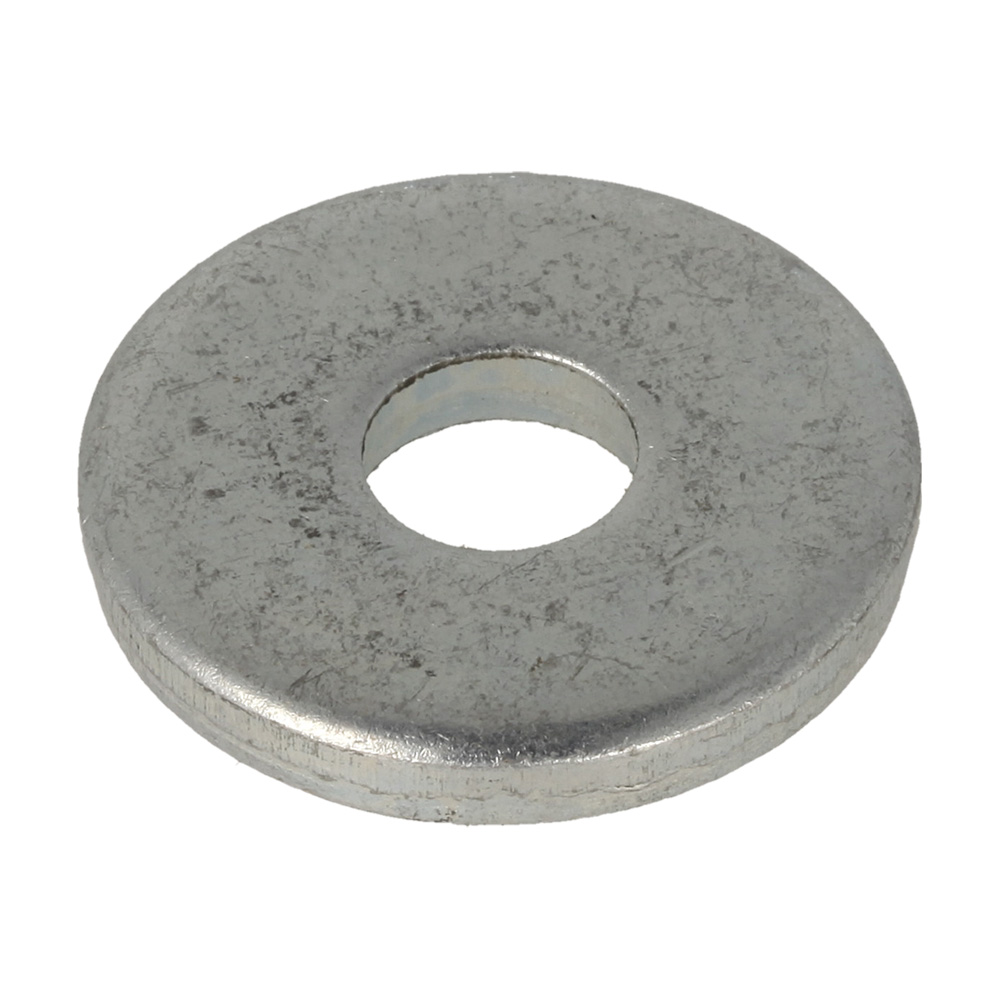

10	MP503855 Available to backorder	Washer Flat 9.75 x 30 x 4	£1.66 £1.38
