Masport 300ST - 579805 - Main Assembly

Name: Masport 300ST - 579805 - Main Assembly
SKU: 300st579805main-group
Price: 0.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

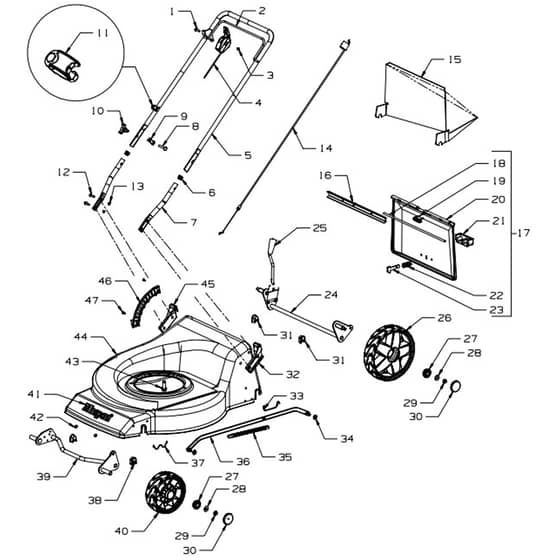

Masport 300ST Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 579805

Model: S18 300 ST

Engine Model: B&S XTS 50

Model Range: -

Serial Number: -

Be the first to review this product

0 product questions

	Part No.	Details
-30	MP579198 Available to backorder	Hub Cap-Button	£0.86 £0.72
-29	MP503831 Available to backorder	Nut-Nyloc M8	£0.72 £0.60
-28	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.36 £0.30
-27	MP551212 Available to backorder	• Bearing-Wheel (2 per Wheel)	£5.56 £4.63
1	MP503604 Available to backorder	Screw Pan M6 x 45	£0.86 £0.72
2	MP981740 Available to backorder	(2a) Bail-Handle Upturned	£21.30 £17.75
2	MP583034 Available to backorder	Bail-Handle Flat	£18.54 £15.45
3	MP501764 Available to backorder	Nut Nyloc M6	£0.35 £0.29
4	MP583458 In stock	Control-Throttle +Ve N.Ch	£21.46 £17.88

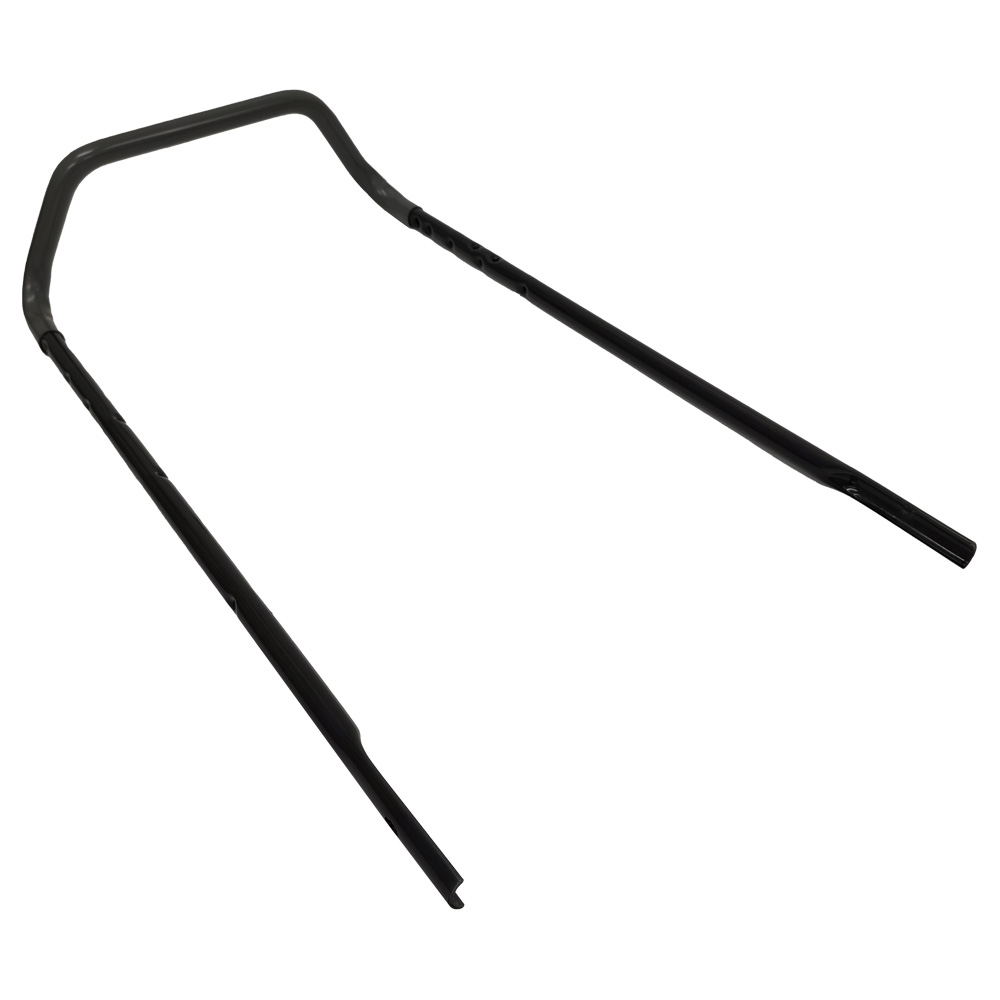

5	MP781265 Available to backorder	(5a) Upper-Handle Upturned - Bk.	£28.22 £23.52
6	MP503319 Available to backorder	Plug-Plastic 22mm - Black	£0.72 £0.60
7	MP980692 Available to backorder	Handle-Lower "Stub" - Black	£13.10 £10.92
8	MP574218 Available to backorder	Bolt SPH M8 x 53 x 35	£1.70 £1.42
9	MP581527 Available to backorder	Retainer-Control Cable Handle	£0.72 £0.60
10	MP574230 In stock	Knob-Plastic M8 assm	£4.32 £3.60
11	MP782546 Available to backorder	Kit - Comfort Start	£16.68 £13.90
13	MP501793 Available to backorder	Nut Nyloc M8 Hex ZP	£1.86 £1.55
14	MP581656 Available to backorder	Cable-Engine - OPC Push On	£17.54 £14.62
15	MP783470 Available to backorder	Grass Defector (Optional)	£171.08 £142.57
16	MP583151 Available to backorder	Dust Seal Flap-plastic	£2.60 £2.17
17	MP782200 Available to backorder	Flap Assy-Rear Plastic	£45.50 £37.92
18	MP581743 Available to backorder	• Wire-6mm x 352mm Flap Pivot	£2.98 £2.48
19	MP581349 Available to backorder	• Spring-Flap	£2.60 £2.17
21	MP580602 Available to backorder	• Handle-Flap	£2.82 £2.35
22	MP581106 Available to backorder	• Spring-Latch Flap	£1.14 £0.95
23	MP981650 Available to backorder	• Latch-Flap Barbed	£10.70 £8.92
25	MP580056 Available to backorder	• Grip Height-Lever	£1.14 £0.95
26	MP579197 Available to backorder	Wheel Assy-Rear 200mm	£35.92 £29.93
31	MP580668 Available to backorder	Bush-Pivot Rear Axle	£0.72 £0.60
32	MP980666 Available to backorder	Bracket-Flap LH	£4.60 £3.83
33	MP580225 Available to backorder	Retainer-clip Rear axle	£0.72 £0.60
34	MP501365 Available to backorder	Clip-Starlock 5.16"	£0.46 £0.38
35	MP581463 Available to backorder	Spring-Counter Balance	£6.84 £5.70
36	MP580404 Available to backorder	Rod Assy-Connecting 150mm	£15.80 £13.17
37	MP529674 In stock	Retainer-Clip "W" Front axle	£0.46 £0.38
38	MP580030 In stock	Bush-Pivot Front Axle	£0.70 £0.58
39	MP983246 Available to backorder	Axle-Front 150mm	£32.02 £26.68
40	MP579195 Available to backorder	Wheel Assy-Front 150mm	£24.96 £20.80
41	MP581240 Available to backorder	Nameplate. "Masport"	£7.08 £5.90
42	MP503150 Available to backorder	Clip-Starlock 5 Dia	£0.52 £0.43
43	MP580453 Available to backorder	Screw Motor S.T 3. 8" x 1 1.8"	£2.32 £1.93
45	MP980667 Available to backorder	Bracket-Flap RH	£4.60 £3.83
46	MP580025 Available to backorder	Quadrant-Height Selector	£6.42 £5.35
