Masport 300AL - 483798 - Oct 2015 > 7960000 - Handle

Name: Masport 300AL - 483798 - Oct 2015 > 7960000 - Handle
SKU: 300al4837987960000handle-group
Price: 0.26 GBP
Availability: InStock

Part No. 300al4837987960000handle-group

Description

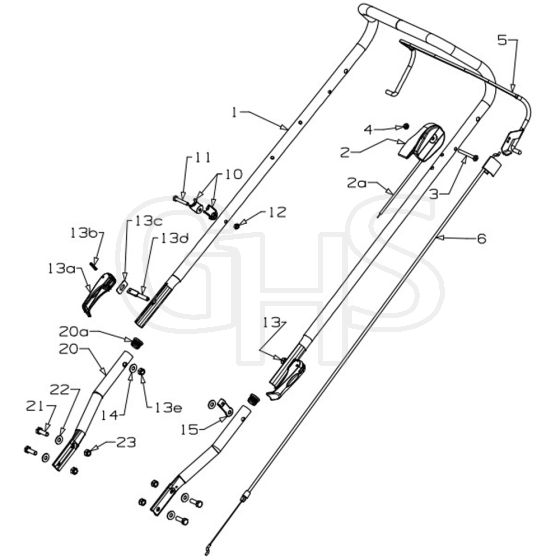

Masport 300AL Petrol Push Rotary Mower - Handle Parts Diagram

Part Number: 483798

Model: S18 300 AL 2'n1

Engine Model: B&S Series 450E

Model Range: Oct 2015

Serial Number: > 7960000

	Part No.	Details
1	MP781265 Available to backorder	Handle & Sleeve Assy Black	£29.20 £24.33
2	MP583458 In stock	(2.2a) Throttle Cntrl & Cable Wescon	£19.93 £16.61
3	MP503604 Available to backorder	Screw Pan M6 x 45 Poz	£0.83 £0.69
4	MP501764 Available to backorder	Nut Nyloc M6 Hex	£0.31 £0.26
5	MP981740 Available to backorder	Bail Arm Assy OPC Black	£20.51 £17.09
6	MP581656 In stock	Cable- Engine OPC Push On	£18.80 £15.67
10	MP703856 Available to backorder	Comfort Start Kit	£19.06 £15.88
11	MP503794 Available to backorder	Screw Set M6 x 40 Hex	£0.31 £0.26
13	MP779755 Available to backorder	Cam Lock Assy (1 per)	£10.78 £8.98
13	MP582419 Available to backorder	(13a) Lever- Handle Locking MSV	£4.74 £3.95
13	MP501793 Available to backorder	(13e) Nut M8 Hex Nylock 8mm Thick	£1.92 £1.60
13	MP503369 Available to backorder	(13b) Pin Tension 5 x 22	£0.48 £0.40
13	MP016777 Available to backorder	(13c) Washer- Slipper S.S	£0.72 £0.60
14	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
15	MP581527 Available to backorder	Retainer-Control Cable Handle	£0.72 £0.60
20	MP980692 Available to backorder	Handle-Lower Stub	£9.31 £7.76
20	MP503319 Available to backorder	(20a) Plug- 22mm Black Plastic	£0.72 £0.60
21	MP501685 Available to backorder	Screw Set-M8 x 30 Hex ZP	£0.79 £0.66
