Masport 300AL - 483773 - Nov 2007 > 7087497 - Handle

Name: Masport 300AL - 483773 - Nov 2007 > 7087497 - Handle
SKU: 300al4837737087497handle-group
Price: 0.26 GBP
Availability: InStock

Part No. 300al4837737087497handle-group

Description

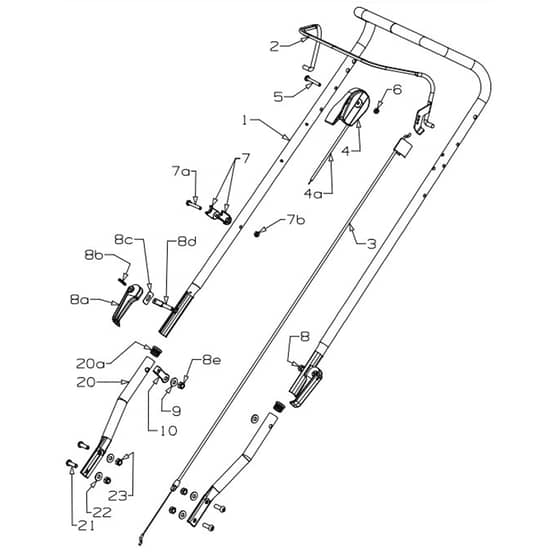

Masport 300AL Petrol Push Rotary Mower - Handle Parts Diagram

Part Number: 483773

Model: 300AL OPC 07

Engine Model: B&S Classic 450

Model Range: Nov 2007

Serial Number: > 7087497

	Part No.	Details
1	MP781265 Available to backorder	Handle & Sleeve OPC.PVC.CHR	£29.20 £24.33
2	MP981740 Available to backorder	Bail Arm Assy OPC Red	£20.51 £17.09
3	MP581656 In stock	Cable- Engine OPC Push-On	£18.80 £15.67
4	MP583458 In stock	(4.4a) Throttle Ctrl & Cable Wescon	£19.93 £16.61
5	MP503604 Available to backorder	Screw Pan M6 x 45 Poz	£0.83 £0.69
6	MP501764 Available to backorder	Nut M6 Hex Nyloc x 6mm thick	£0.31 £0.26
7	MP703856 Available to backorder	Comfort Start Kit	£19.06 £15.88
7	MP503794 Available to backorder	(7a) Screw Set M6 x 40	£0.31 £0.26
8	MP779755 Available to backorder	Cam Lock Assy (1 per)	£10.78 £8.98
8	MP016777 Available to backorder	(8c) Washer- Slipper SS	£0.72 £0.60
8	MP582419 Available to backorder	(8a) Lever- Handle Locking MSV	£4.74 £3.95
8	MP501793 Available to backorder	(8e) Nut M8 Hex Nylock x 8mm thick	£1.92 £1.60
8	MP503369 Available to backorder	(8b) Pin Tension 5 x 22	£0.48 £0.40
9	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
10	MP581527 Available to backorder	Retainer-Control Cable Handle	£0.72 £0.60
20	MP503319 Available to backorder	(20a) Plug- 22mm Black Plastic	£0.72 £0.60
20	MP980692 Available to backorder	Handle- Lower Stub	£9.31 £7.76
