Masport 300AL - 465743 B - Sept 2018 8306648 - 8399401 - Deck

Description

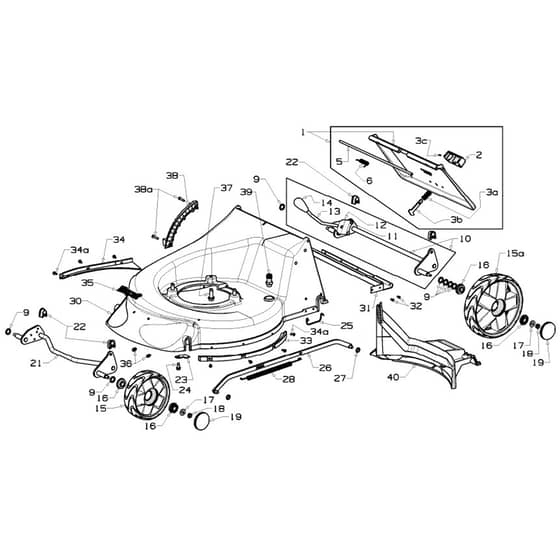

Masport 300AL Petrol Push Rotary Mower - Deck Parts Diagram

Part Number: 465743 B

Model: 300AL 2’n1 OPC 19

Engine Model: Loncin LC1P61FE OPC 123cc

Model Range: Sept 2018

Serial Number: 8306648 - 8399401

	Part No.	Details
1	MP782200 Available to backorder	Flap Assembly– Plastic	£45.66 £38.05
2	MP580602 Available to backorder	Handle- Flap	£2.44 £2.03
3	MP981650 Available to backorder	(3b) Latch- Flap Barbed	£10.32 £8.60
3	MP581106 Available to backorder	(3a) Spring- Flap Latch	£1.09 £0.91
6	MP581528 Available to backorder	Spring-Flap Stl 18".20"	£2.28 £1.90
9	MP503301 Available to backorder	Washer- Wheel Spacing	£3.23 £2.69
10	MP969398 Available to backorder	Axle Assy-Rear Complete	£39.79 £33.16
11	MP503373 Available to backorder	Rivet- F.HD 3.16 x 27.64"	£0.94 £0.78
12	MP580649 Available to backorder	Spring- Leaf	£5.44 £4.53
13	MP973681 Available to backorder	Rod- Height Selector	£2.86 £2.38
14	MP581729 Available to backorder	Knob- Height Lever Adjust MSV	£3.00 £2.50
15	MP579197 Available to backorder	(15a) Wheel Assy-200mm Spoked Slvr	£34.57 £28.81
15	MP579195 Available to backorder	Wheel Assy-150mm Spoked Slvr	£25.84 £21.53
16	MP551212 Available to backorder	Bearing- Wheel Ball Type	£5.75 £4.79
17	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
18	MP503831 Available to backorder	Nut M8 Hex Nyloc x 6mm thick	£0.72 £0.60
19	MP579198 Available to backorder	Hub Cap Button Spkd Slvr	£0.83 £0.69
21	MP983246 Available to backorder	Axle Assy- Front 150mm	£32.15 £26.79
22	MP580030 In stock	Bush-Pivot Front Axle	£0.76 £0.63
23	MP980564 Available to backorder	Retainer-Axle Front Plate	£0.83 £0.69
24	MP501599 Available to backorder	Screw. S.Tapping 1.4" x 5.8"	£1.51 £1.26
25	MP580225 Available to backorder	Retainer-Axle Rear ALI	£0.72 £0.60
26	MP980404 Available to backorder	Rod Assy-Connecting 150mm	£16.08 £13.40
27	MP501365 Available to backorder	Clip– Starlock 5.16”	£0.48 £0.40
28	MP581463 Available to backorder	Spring-Counter Balance	£7.09 £5.91
31	MP583267 Available to backorder	Brace-Rear Stiffener	£14.46 £12.05
33	MP581524 Available to backorder	Deflector-Air L.H Plastic	£8.34 £6.95
34	MP581525 Available to backorder	Deflector-Air R.H Plastic	£8.28 £6.90
34	MP503630 Available to backorder	(34a) Screw. S.Tapping 10 x .4 Typ B	£0.86 £0.72
35	MP567406 Available to backorder	Name Plate "MASPORT"	£5.80 £4.83
36	MP503150 Available to backorder	Clip- Starlock 5mm dia	£0.48 £0.40
37	MP580453 Available to backorder	Screw S.T 3.8" x 1-1.8" UNC	£2.23 £1.86
38	MP580025 Available to backorder	Quadrant- Height Selector	£6.64 £5.53
39	MP503783 Available to backorder	Cyclowash- Fitting	£4.46 £3.72
40	MP583105 Available to backorder	Insert– Mulching 18”	£15.23 £12.69
