Masport 250ST - 579894 - Dec 2007 - 460mm Bar-Blade Assembly

Description

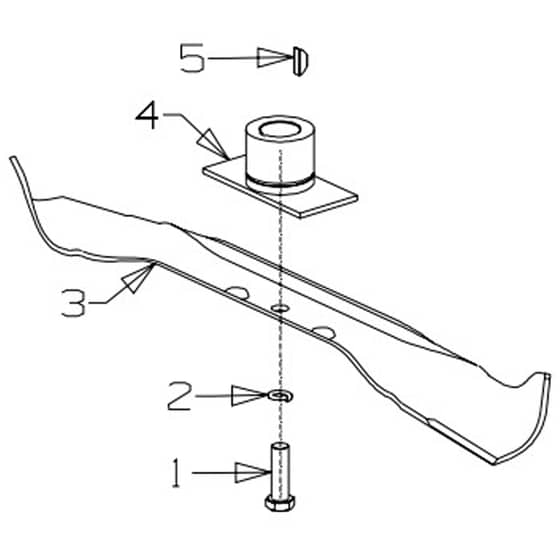

Masport 250ST Petrol Push Rotary Mower - 460mm Bar-Blade Assembly Parts Diagram

Part Number: 579894

Model: S18 250 ST

Engine Model: B & S - XM 50

Model Range: Dec 2007

Serial Number: -

	Part No.	Details
1	MP581610 In stock	Screw Set NF 3.8" x 1.25	£2.11 £1.76
2	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
3	MP911181 In stock	Bar Blade 460mm	£31.96 £26.63
4	MP911106 Available to backorder	Driver Assy-Blade - 22mm Shaft	£23.57 £19.64
4	MP980494 Available to backorder	(4a) Driver Assy-Blade - 25mm Shaft	£19.61 £16.34
5	MP503363 Available to backorder	(5a) Key Woodruff - 5.8" x 3.16" x 1.4"	£0.41 £0.34
5	MP500636 Available to backorder	Key Woodruff - 5.8" x 5.32" x 1.4"	£1.40 £1.17
