Masport 250ST - 573942 - Mar 2009 - Main Assembly

Name: Masport 250ST - 573942 - Mar 2009 - Main Assembly
SKU: 250st573942main-group
Price: 0.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 250ST - 573942 - Mar 2009 - Main Assembly

Description

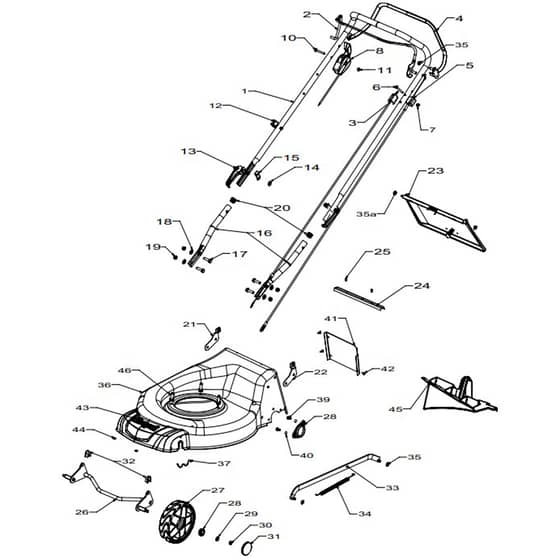

Masport 250ST Petrol Power Drive - Main Assembly Parts Diagram

Part Number: 573942

Model: 350 ST SP Combo

Engine Model: B & S Series 500

Model Range: Mar 2009

Serial Number: -

Be the first to review this product

0 product questions

	Part No.	Details
1	MP781265 Available to backorder	Handle-Upper Upturned - Black	£28.22 £23.52
2	MP981740 Available to backorder	Bail Arm Assy OPC Flatnd	£21.30 £17.75
3	MP581656 Available to backorder	Cable- Engine OPC Push	£17.54 £14.62
4	MP982161 Available to backorder	Bail Arm Assy SP	£27.36 £22.80
5	MP765435 In stock	Cable-Clutch ThumbWheel G.box	£28.18 £23.48
6	MP503604 Available to backorder	Screw Pan M6 x 45	£0.86 £0.72
7	MP501764 Available to backorder	Nut Nyloc M6	£0.35 £0.29
8	MP583458 In stock	Control-Throttle +Ve	£21.46 £17.88
12	MP703856 Available to backorder	Comfort Start Kit	£19.80 £16.50
13	MP779755 In stock	Cam Lock Assy	£10.06 £8.38
14	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.36 £0.30
15	MP581527 Available to backorder	Retainer- Clutch Cable	£0.72 £0.60
16	MP980692 Available to backorder	Handle-Lower Stub - Black	£13.10 £10.92
19	MP501793 Available to backorder	Nut Nyloc M8	£1.86 £1.55
20	MP503319 Available to backorder	Plug- 22mm Plastic	£0.72 £0.60
23	MP782200 Available to backorder	Flap Assy Plastic	£45.50 £37.92
24	MP583151 Available to backorder	Dust Seal- Flap	£2.60 £2.17
26	MP983247 Available to backorder	Axle Assy Front 175mm	£33.96 £28.30
27	MP579196 Available to backorder	Wheel Assy-175mm BB Spoked	£30.90 £25.75
28	MP551212 Available to backorder	Bearing- Wheel	£5.56 £4.63
30	MP503831 Available to backorder	Nut- Nyloc M8	£0.72 £0.60
31	MP579198 Available to backorder	Hub Cap Button Spoked - Silver	£0.86 £0.72
32	MP580030 In stock	Bush-Pivot Front Axle	£0.70 £0.58
34	MP581463 Available to backorder	Spring-Counter Balance	£6.84 £5.70
35	MP503574 Available to backorder	(35a) Clip- Starlock 6mm	£1.48 £1.23
35	MP501365 Available to backorder	Clip-Starlock 5.16"	£0.46 £0.38
36	MP773134 Available to backorder	Housing- Stl 18" XF FS SP Ttnm	£178.76 £148.97
37	MP529674 In stock	Retainer-Axle W Front	£0.46 £0.38
38	MP581178 Available to backorder	Retainer-Axle Rear 600 SP	£7.74 £6.45
39	MP501959 Available to backorder	Screw Set M6x12 Hex	£0.38 £0.32
41	MP573131 Available to backorder	Tunnel- Gbox Cover 18" ST	£17.54 £14.62
42	MP503630 Available to backorder	Screw S.T 10x0.4	£0.90 £0.75
43	MP581240 Available to backorder	Nameplate	£7.08 £5.90
44	MP503150 Available to backorder	Clip-Starlock 5 Dia	£0.52 £0.43
45	MP573278 Available to backorder	Insert- Mulching 18" ST SP	£25.12 £20.93
46	MP580453 Available to backorder	Screw S.T 3. 8" x 1 1.8"	£2.32 £1.93
