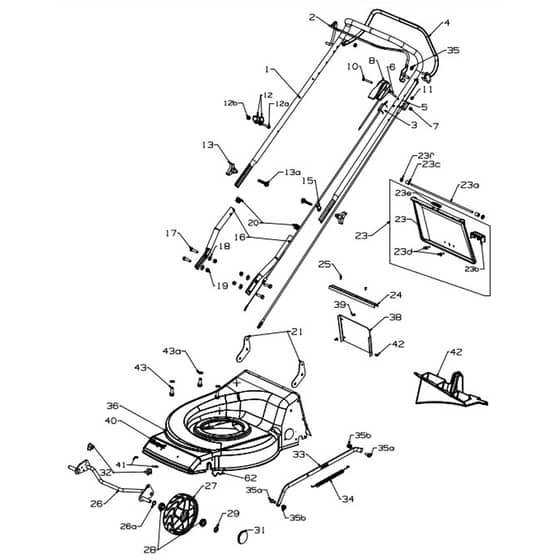

Masport 250ST Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 478966

Model: 250 ST SP Combo

Engine Model: B & S Series 500

Model Range: -

Serial Number: -

Be the first to review this product

0 product questions

	Part No.	Details
1	MP781265 Available to backorder	Handle-Upper Assy	£28.22 £23.52
2	MP981740 Available to backorder	Bail Arm Assy OPC Flatnd	£21.30 £17.75
4	MP982161 Available to backorder	Bail Arm Assy SP	£27.36 £22.80
5	MP765434 In stock	Cable-Clutch ThumbWheel G.box	£25.26 £21.05
6	MP503604 Available to backorder	Screw Pan M6 x 45	£0.86 £0.72
7	MP501764 Available to backorder	Nut Nyloc M6	£0.35 £0.29
8	MP579313 Available to backorder	(8a) Cable Throttle Inner Outter	£18.64 £15.53
8	MP583458 In stock	Control-Throttle +Ve	£21.46 £17.88
12	MP503794 Available to backorder	(12a) Screw Set M6 x 40 HT4.6	£0.35 £0.29
12	MP782546 Available to backorder	Guide Rope Alloy	£16.68 £13.90
13	MP574218 Available to backorder	(13a) Bolt SPH M8x53x35	£1.70 £1.42
13	MP574230 In stock	Knob Plastic M8	£4.32 £3.60
15	MP581527 Available to backorder	Retainer- Clutch Cable	£0.72 £0.60
16	MP980692 Available to backorder	Handle-Lower Stub - Black	£13.10 £10.92
18	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.36 £0.30
19	MP501793 Available to backorder	Nut Nyloc M8	£1.86 £1.55
20	MP503319 Available to backorder	Plug- 22mm Plastic	£0.72 £0.60
21	MP567585 Available to backorder	Bracket Flap Fab Catcher	£3.56 £2.97
23	MP779732 Available to backorder	(23a) Wire Flap Pivot 352 x 6	£9.04 £7.53
23	MP503650 Available to backorder	(23d) Screw.S.T45x11.16"UNC	£1.14 £0.95
23	MP580602 Available to backorder	(23b) Handle Flap	£2.82 £2.35
23	MP764117 Available to backorder	Flap Assy Plastic	£21.40 £17.83
23	MP581349 Available to backorder	(23e) Spring Flap	£2.60 £2.17
23	MP503574 Available to backorder	(23f) Clip-Starlock 6 Dia	£1.48 £1.23
23	MP579733 Available to backorder	(23c) Spacer Flap	£0.38 £0.32
24	MP583151 Available to backorder	Dust Seal- Flap	£2.60 £2.17
26	MP567577 Available to backorder	Axle Assy Front 18" SP	£29.14 £24.28
26	MP503301 Available to backorder	(26a) Washer. FLT 1.2x3.4x18g	£3.36 £2.80
27	MP579196 Available to backorder	Wheel Assy-175mm BB Spoked	£30.90 £25.75
28	MP551212 Available to backorder	Bearing- Wheel	£5.56 £4.63
29	MP503236 Available to backorder	Clip-Starlock 1.2"	£2.10 £1.75
31	MP579198 Available to backorder	Hub Cap Button Spoked - Silver	£0.86 £0.72
32	MP580030 In stock	Bush-Pivot Front Axle	£0.70 £0.58
33	MP567574 Available to backorder	Rod Assy-Connecting 18"SP	£17.42 £14.52
34	MP581463 Available to backorder	Spring-Counter Balance	£6.84 £5.70
35	MP501597 Available to backorder	(35a) Screw Set M8x20 Hex ZP	£0.44 £0.37
35	MP501365 Available to backorder	Clip-Starlock 5.16"	£0.46 £0.38
36	MP767569 Available to backorder	Housing-Assy Stl 18" ODSQFSSP	£182.90 £152.42
37	MP529674 In stock	Retainer-Axle W Front	£0.46 £0.38
38	MP573131 Available to backorder	Tunnel- Gbox Cover 18" ST	£17.54 £14.62
39	MP503630 Available to backorder	Screw S.T 10x0.4	£0.90 £0.75
40	MP581240 Available to backorder	Nameplate	£7.08 £5.90
41	MP503150 Available to backorder	Clip-Starlock 5 Dia	£0.52 £0.43
42	MP573278 Available to backorder	Insert- Mulching 18" ST SP	£25.12 £20.93
43	MP501704 Available to backorder	(43a) Washer Flt 10x19x1.6	£0.44 £0.37
43	MP580453 Available to backorder	Screw S.T 3. 8" x 1 1.8"	£2.32 £1.93
