Masport 250ST - 464791 - Nov 2014 > 7881481 - Wheel Assembly

Name: Masport 250ST - 464791 - Nov 2014 > 7881481 - Wheel Assembly
SKU: 250st4647917881481wheel-group
Price: 0.69 GBP
Availability: InStock

Part No. 250st4647917881481wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 250ST - 464791 - Nov 2014 > 7881481 - Wheel Assembly

Description

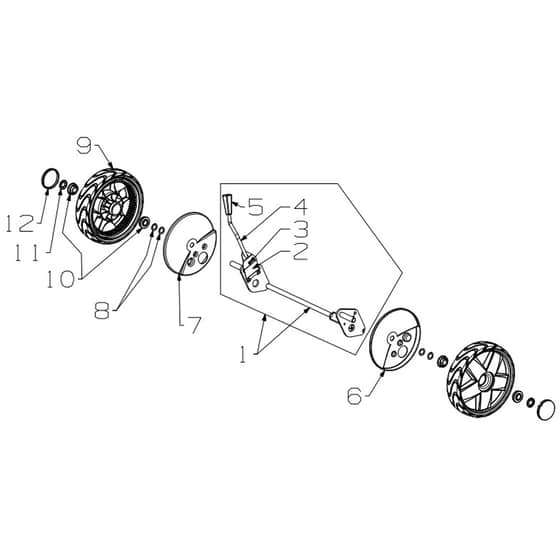

Masport 250ST Petrol Power Drive - Wheel Assembly Parts Diagram

Part Number: 464791

Model: 250 ST SP Combo

Engine Model: 250 ST SP Combo

Model Range: Nov 2014

Serial Number: > 7881481

	Part No.	Details
1	MP767578 Available to backorder	Axle Assy Rear Drive 18"SP	£61.63 £51.36
2	MP580649 Available to backorder	Spring Leaf	£5.44 £4.53
3	MP503373 Available to backorder	Rivet-F.HD3.16"x27.64"	£0.94 £0.78
4	MP980733 Available to backorder	Rod-Height Selector ZP	£4.43 £3.69
5	MP580056 Available to backorder	Grip Height Lever 7.9	£1.09 £0.91
6	MP567597 Available to backorder	Cover Dust RH + LH 250 ST SP	£4.74 £3.95
8	MP503301 Available to backorder	Washer. FLT 1.2 x3.4x18G	£3.23 £2.69
9	MP567568 Available to backorder	Wheel Assy-200mm SP	£38.14 £31.78
10	MP551212 Available to backorder	Bearing-Wheel Plastic	£5.75 £4.79
11	MP503236 Available to backorder	Clip-Starlock 1.2"	£2.03 £1.69
12	MP579198 Available to backorder	Hub Cap-Button spoked	£0.83 £0.69
