Masport 250ST - 464791 - Nov 2014 > 7881481 - Deck

Name: Masport 250ST - 464791 - Nov 2014 > 7881481 - Deck
SKU: 250st4647917881481deck-group
Price: 0.34 GBP
Availability: InStock

Part No. 250st4647917881481deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 250ST - 464791 - Nov 2014 > 7881481 - Deck

Description

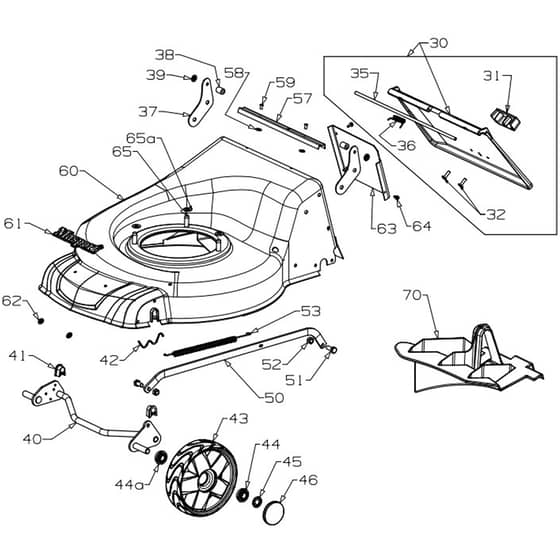

Masport 250ST Petrol Power Drive - Deck Parts Diagram

Part Number: 464791

Model: 250 ST SP Combo

Engine Model: 250 ST SP Combo

Model Range: Nov 2014

Serial Number: > 7881481

	Part No.	Details
30	MP764117 Available to backorder	Flap- Assy plastic fxd Hndl blk	£20.59 £17.16
31	MP580602 Available to backorder	Handle - Flap	£2.44 £2.03
32	MP503650 Available to backorder	Screw. S.T 12x11.16" UNC	£0.86 £0.72
35	MP779732 Available to backorder	Wire-Flap Pivot 6mm x 377mm	£8.71 £7.26
36	MP581349 Available to backorder	Spring-Flap ST Deck	£2.48 £2.07
37	MP567585 Available to backorder	Bracket Flap Fab Catcher	£3.46 £2.88
38	MP579733 Available to backorder	Spacer Flap	£0.48 £0.40
39	MP503574 Available to backorder	Clip- Starlock 6mm dia	£1.40 £1.17
40	MP567577 Available to backorder	Axle-Front 18" SP	£28.03 £23.36
41	MP580030 In stock	Bush-Pivot Front Axle	£0.76 £0.63
42	MP529674 In stock	Retainer-Axle W Front	£0.50 £0.42
43	MP579196 Available to backorder	Wheel Assy-175mm Spkd Silv	£29.75 £24.79
44	MP551212 Available to backorder	Bearing- Wheel	£5.75 £4.79
44	MP579694 Available to backorder	(44a) Bearing- Wheel Plastic	£0.72 £0.60
45	MP503236 Available to backorder	Clip- Starlock 1.2"	£2.03 £1.69
46	MP579198 Available to backorder	Hub Cap Button Spkd Silv	£0.83 £0.69
50	MP567574 Available to backorder	Rod- Connecting 18" SP	£16.76 £13.97
51	MP501597 Available to backorder	Screw Set M8 x 20 Hex	£0.41 £0.34
52	MP501793 Available to backorder	Nut Nyloc M8	£1.92 £1.60
53	MP581463 Available to backorder	Spring-Counter Balance Non-SP	£7.09 £5.91
57	MP583151 Available to backorder	Dust Seal- Flap	£2.48 £2.07
60	MP767569 Available to backorder	Hsng-Assy Stl18"ODSQ SP TTNM	£170.16 £141.80
61	MP581240 In stock	Nameplate MASPORT	£7.14 £5.95
62	MP503150 Available to backorder	Clip-Starlock 5 Dia	£0.48 £0.40
63	MP573131 Available to backorder	Tunnel- Gbox Cover 18" ST	£16.84 £14.03
64	MP503630 Available to backorder	Screw S.T 10x0.4	£0.86 £0.72
64	MP501704 Available to backorder	(64a) Washer 10 x 19 x 1.6	£0.41 £0.34
65	MP580453 Available to backorder	Screw S.T 3. 8" x 1 1.8"	£2.23 £1.86
70	MP573278 Available to backorder	Insert- Mulching 18" ST SP	£24.19 £20.16
