Masport 21 - 957946 - Oct 2011 7494485 - Main Assembly

Description

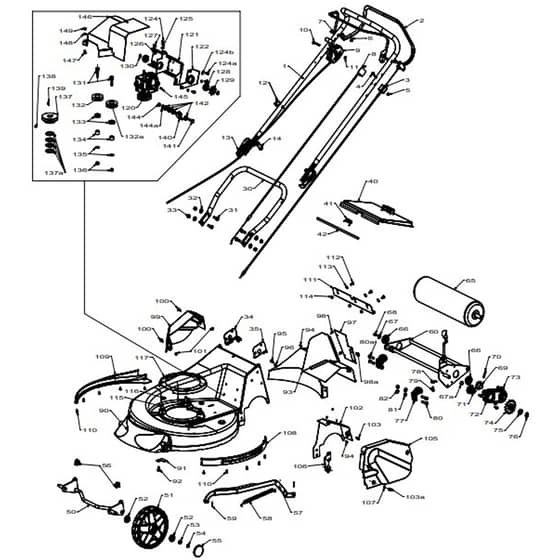

Masport 21 Petrol Rotarola - Main Assembly Parts Diagram

Part Number: 957946

Model: Rotarola AL SP

Engine Model: Honda GCV 160E

Model Range: Oct 2011

Serial Number: 7494485

Be the first to review this product

0 product questions

	Part No.	Details
1	MP781265 Available to backorder	Handle & Sleeve Assy- OPC SP	£28.22 £23.52
2	MP982161 Available to backorder	Bail Arm Assy SP	£27.36 £22.80
3	MP765435 In stock	Cable- Clutch Thumb Wheel	£28.18 £23.48
4	MP503604 Available to backorder	Screw Pan M6x45 Poz ZP	£0.86 £0.72
5	MP501764 Available to backorder	Nut M6 Nylocx 6 Thck	£0.35 £0.29
6	MP501365 Available to backorder	Clip- Starlock 5.16"	£0.46 £0.38
7	MP981740 Available to backorder	Bail Arm Assy OPC Flatnd	£21.30 £17.75
8	MP583395 In stock	Cable- Engine OPC Push On	£18.82 £15.68
9	MP583460 In stock	Control- Throttle Capro "T"	£23.98 £19.98
10	MP503508 Available to backorder	Screw Pan M6x55 Poz ZP	£1.14 £0.95
12	MP703856 Available to backorder	Comfort Start Kit	£19.80 £16.50
13	MP779755 In stock	Cam Lock Assy	£10.06 £8.38
14	MP581527 Available to backorder	Retainer- Clutch Cable	£0.72 £0.60
30	MP973125 Available to backorder	Handle- Lower "U" 19"	£28.74 £23.95
32	MP501606 Available to backorder	Washer Flt 8x19x1.6	£0.36 £0.30
33	MP501793 Available to backorder	Nut M8 Nylocx 8 Thck	£1.86 £1.55
34	MP573438 Available to backorder	Bracket- RH 19.21" AL Aero	£17.98 £14.98
35	MP573437 Available to backorder	Bracket- LH 19.21" AL Aero	£17.98 £14.98
40	MP973862 Available to backorder	Flap Assy- Steel Latched 19.21"	£39.80 £33.17
41	MP583343 Available to backorder	Spring Flap 19"	£2.16 £1.80
50	MP983305 Available to backorder	Axle Assy Front 200mm Thrd	£31.54 £26.28
51	MP579197 Available to backorder	Wheel Assy- 200mm BB Spkd	£35.92 £29.93
52	MP551212 Available to backorder	Bearing- Wheel Ball Type	£5.56 £4.63
54	MP503831 Available to backorder	Nut M8 Hex Nyloc 6 Thck	£0.72 £0.60
55	MP579198 Available to backorder	Hub Cap Button Spkd Slv	£0.86 £0.72
56	MP580030 In stock	Bush- Pivot Axle	£0.70 £0.58

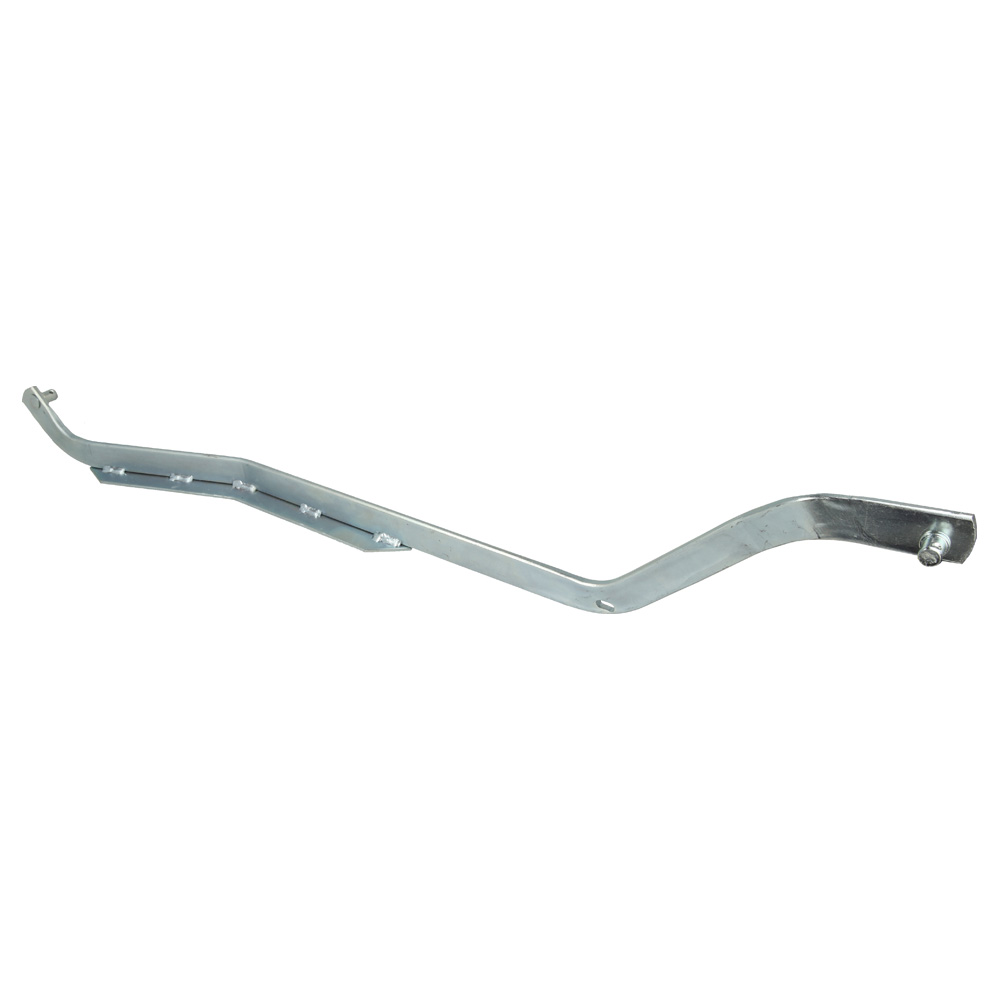

57	MP557346 Available to backorder	Rod Assy Connecting 21" SP RR	£20.60 £17.17
58	MP573844 Available to backorder	Spring Counter Balance SP RR	£7.64 £6.37
59	MP501056 Available to backorder	Pin Cotter 2.3Dia x 16	£0.48 £0.40
60	MP768787 Available to backorder	Frame Assy Rear 21" SP RR	£62.62 £52.18
65	MP557358 Available to backorder	Roller Assy Steel 21" RR SP	£186.70 £155.58
66	MP503820 Available to backorder	Brg Ball 15x35x11 6202NR2RS	£23.14 £19.28
67	MP503301 Available to backorder	(67a) Washer Flt 1.2x3.4x18G	£3.36 £2.80
68	MP501959 Available to backorder	Screw Set M6x12 Hex	£0.38 £0.32
69	MP557278 Available to backorder	Sprocket- 9T Driven	£43.26 £36.05
70	MP503042 Available to backorder	Pin Tension 4.0x30	£0.68 £0.57
71	MP957212 Available to backorder	Sprocket- 9T Drive	£36.02 £30.02
72	MP557209 In stock	Cover- Chain RR	Was £7.64 £6.37 Special Price £5.27 £4.39

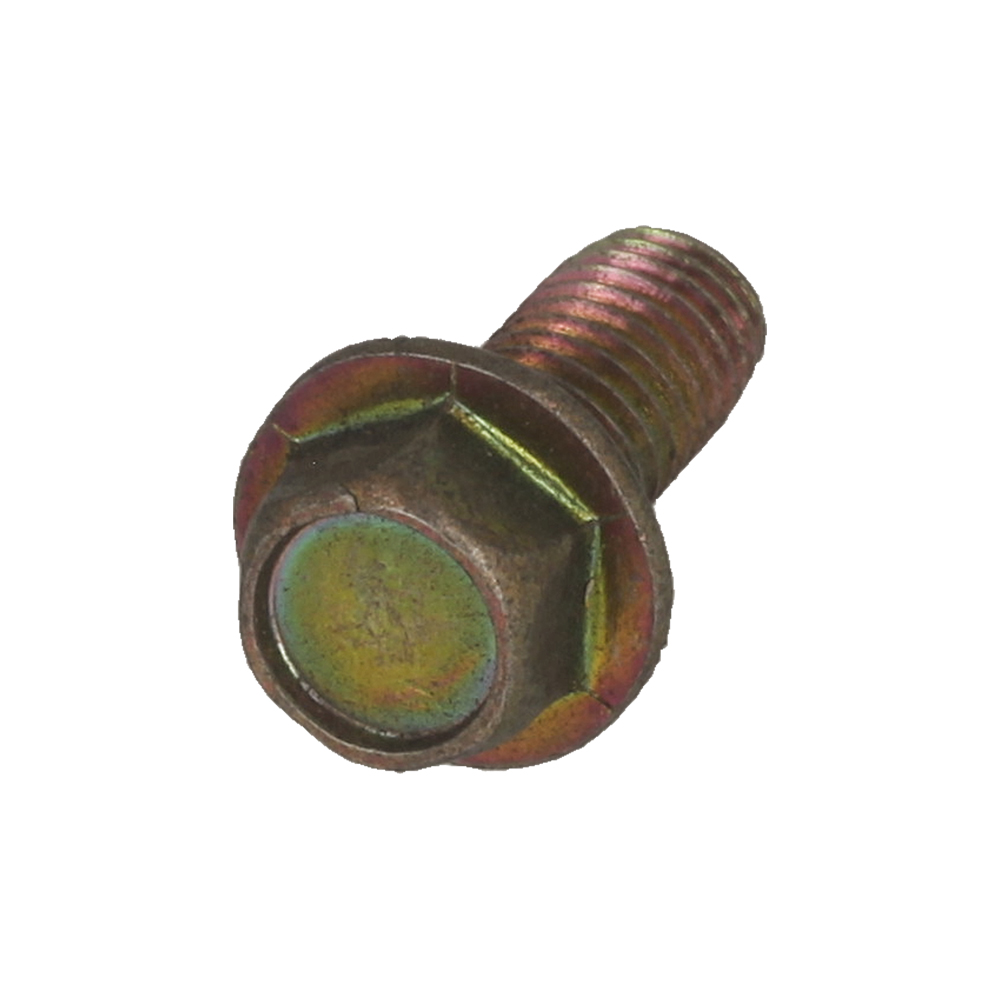

73	MP503146 Available to backorder	Screw S.T M6x15 Hex	£1.58 £1.32
74	MP557307 Available to backorder	Sprocket Intermediate	£56.16 £46.80
75	MP500858 Available to backorder	Washer Flt 1.2x1.0x.062	£0.44 £0.37
76	MP503293 In stock	Circlip 1.2" Ext	£1.30 £1.08

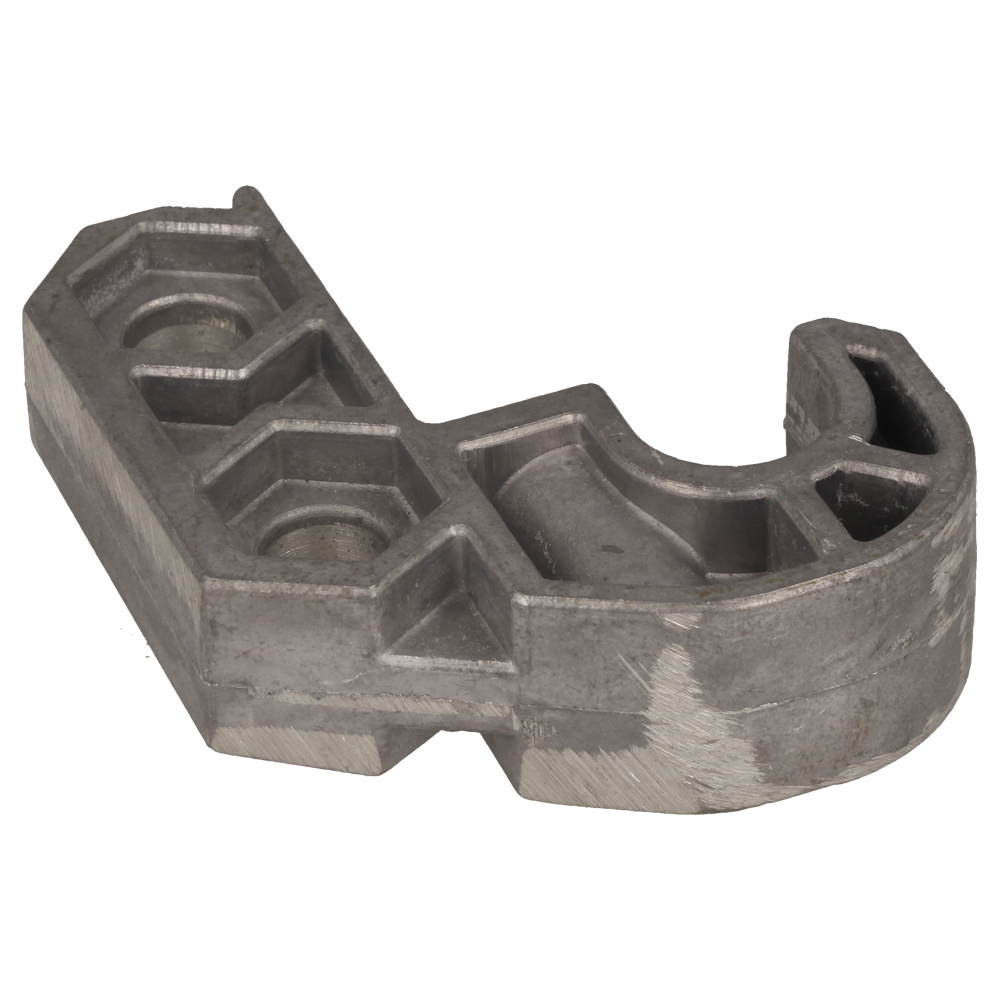

77	MP557338 Available to backorder	Bracket- Mounting	£8.28 £6.90

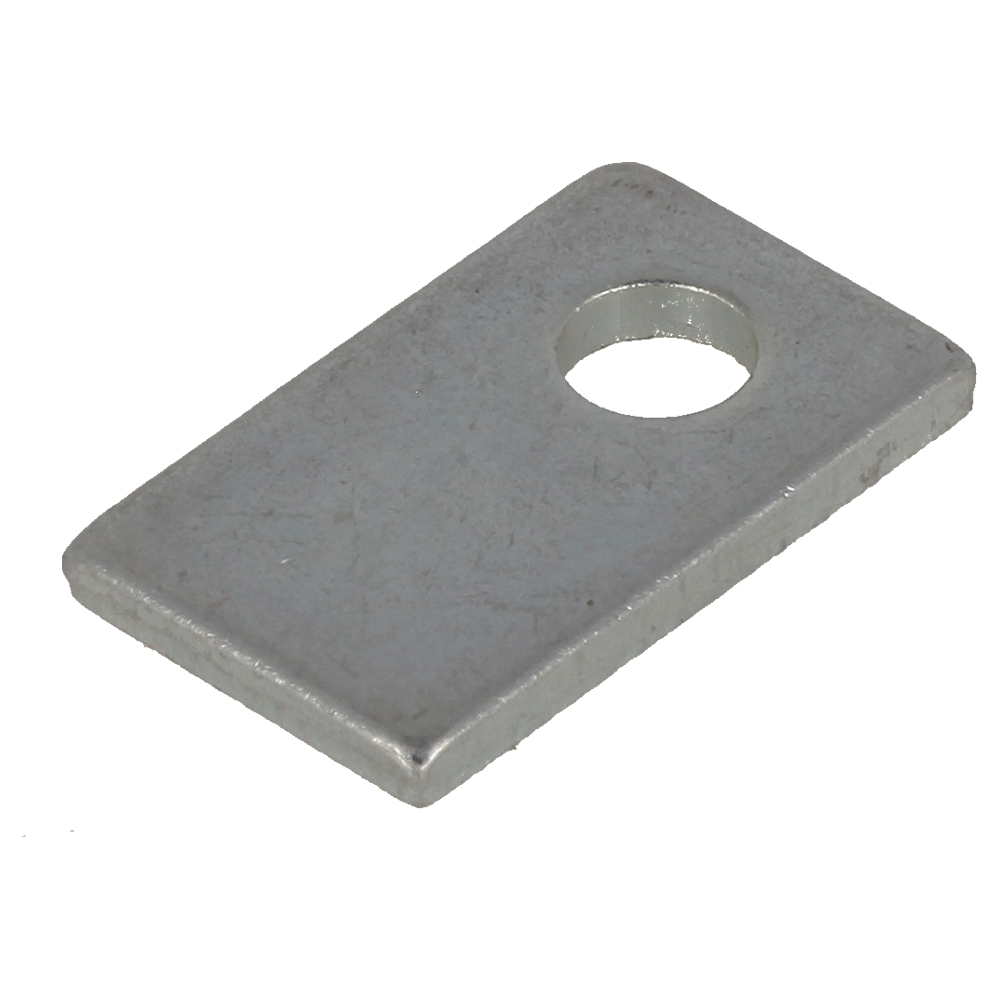

78	MP557340 Available to backorder	Plate- Retainer Bracket	£3.52 £2.93
80	MP501685 Available to backorder	(80a) Screw Set M8x30 Hex	£0.80 £0.67
80	MP501716 Available to backorder	Screw Set M8x35 Hex	£1.48 £1.23
81	MP501744 Available to backorder	Washer Flt 8x17x1.6	£0.48 £0.40
90	MP757328 Available to backorder	Hsg Assy- Ali 21" RR FS SP Ttnm	£358.80 £299.00
91	MP983315 Available to backorder	Plate- Retainer Front Axle 19"	£0.96 £0.80
92	MP501599 Available to backorder	Screw S.T 1.4x5.8 Hex	£1.58 £1.32
93	MP957369 Available to backorder	Tunnel Assy 21" SP RR	£97.58 £81.32
94	MP503318 Available to backorder	Rivet- Pop 4.8x7.9	£0.44 £0.37
95	MP501702 Available to backorder	Screw Set M6x16 Hex	£0.44 £0.37
97	MP957354 Available to backorder	Tunnel- GBox Cover 21" RR SP Ali	£17.68 £14.73
98	MP503630 Available to backorder	Screw S.T 10x.4 TYP B HWH	£0.90 £0.75

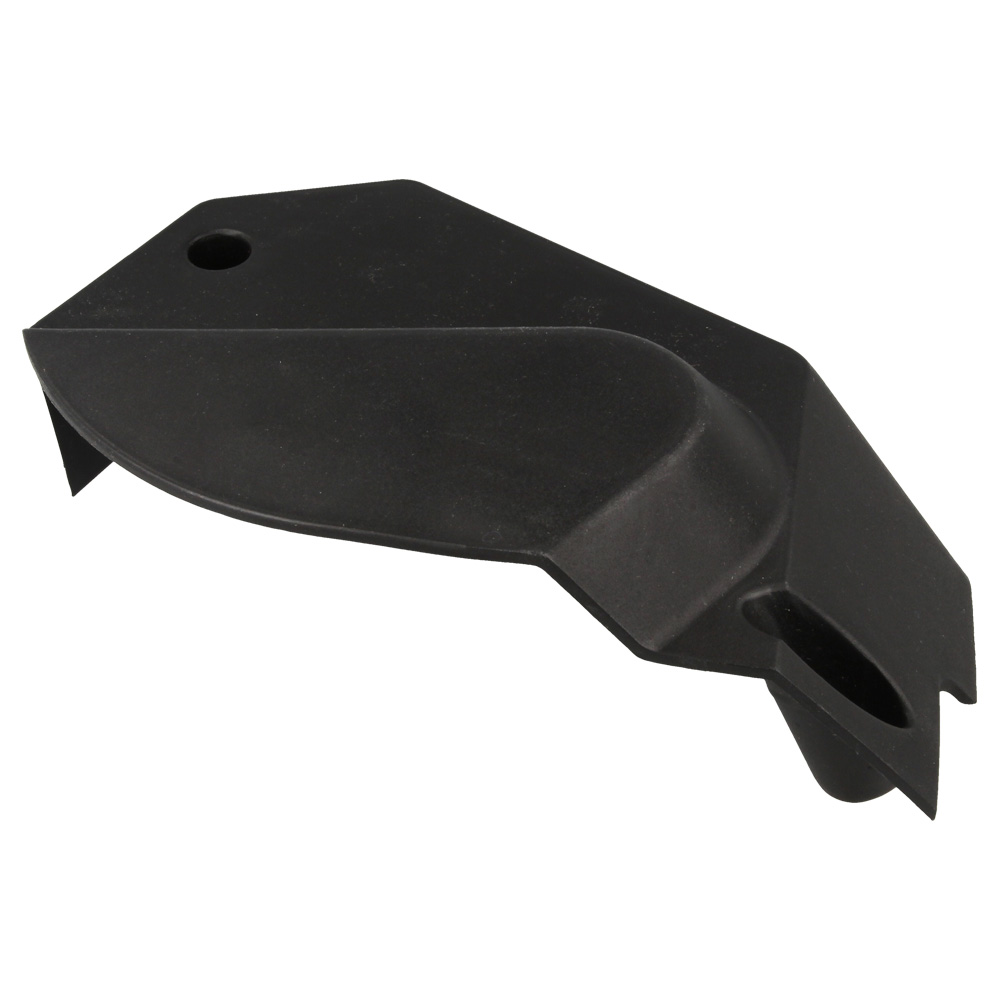

99	MP557331 Available to backorder	Cover- Side RH 21" RR Plastic	£15.48 £12.90
100	MP503331 Available to backorder	Screw Pan M6x16	£1.24 £1.03
102	MP957361 Available to backorder	Quadrant.Side Support Assy	£42.10 £35.08
103	MP503591 Available to backorder	(103a) Screw Pan M6x12	£0.35 £0.29

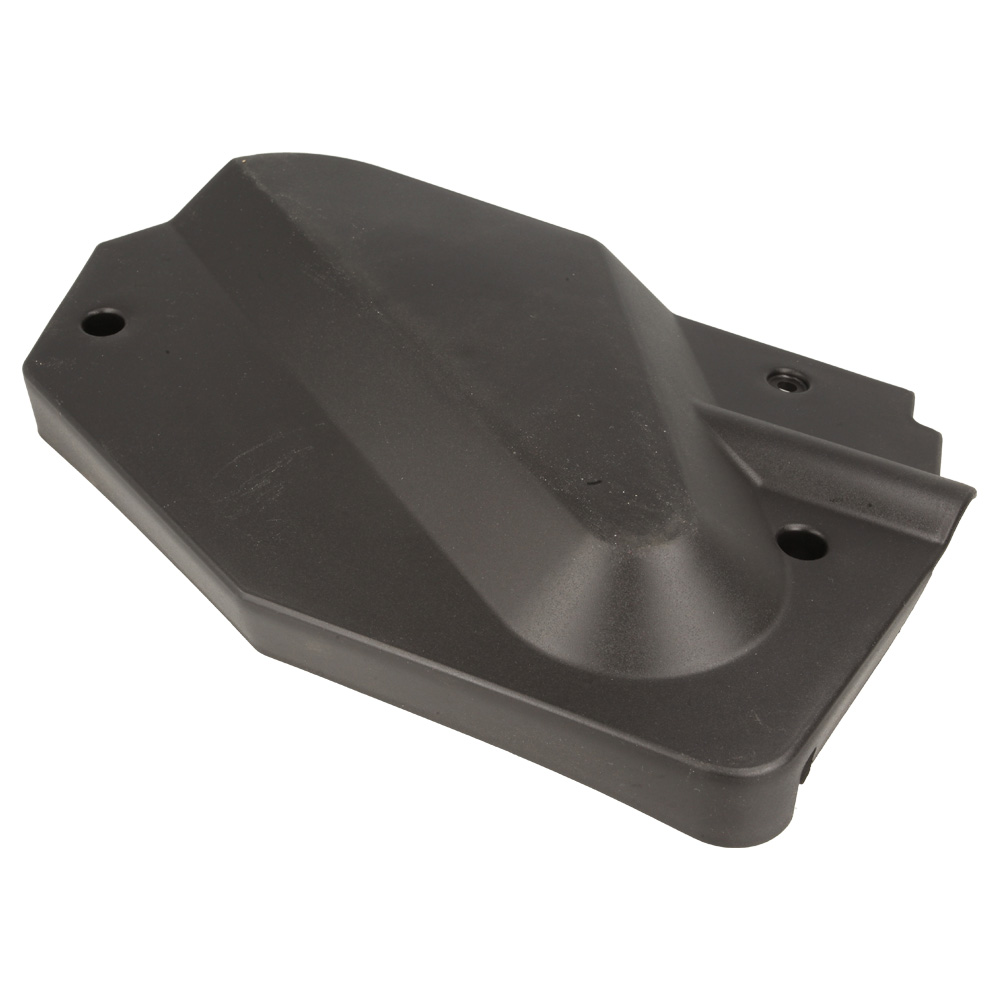

105	MP557362 Available to backorder	Cover- Side LH 21" RR Plastic	£18.36 £15.30
106	MP957347 Available to backorder	Cover- Support Bracket	£14.52 £12.10
108	MP579742 Available to backorder	Skirt- Side LH 540	£11.66 £9.72
109	MP957352 Available to backorder	Skirt- Side RH 21" RR	£17.64 £14.70
110	MP503834 Available to backorder	Screw S.T M4x10 Washer Hex	£0.38 £0.32
111	MP571048 Available to backorder	Hook19.21" Aero	£19.24 £16.03
113	MP501703 Available to backorder	Washer Flt 6x14x1.2	£0.48 £0.40
115	MP580453 Available to backorder	Screw S.T 3.8x1-1.8 UNC TRIBLK	£2.32 £1.93
116	MP583542 Available to backorder	Spacer Flt 10.5 x 22 x 6	£3.46 £2.88
117	MP569037 Available to backorder	Ring Safety Black	£18.80 £15.67

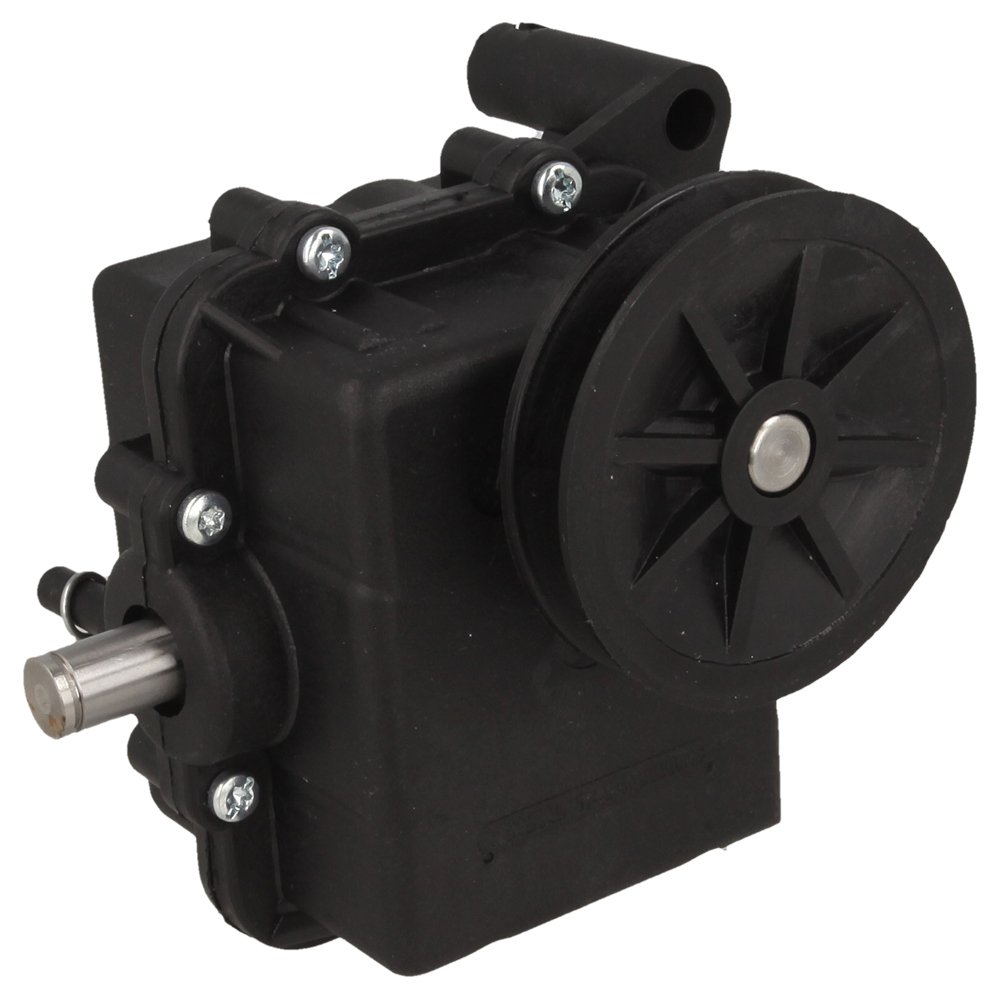

120	MP557268 Available to backorder	Gearbox- Rotarola	£112.80 £94.00
121	MP957364 Available to backorder	Gearbox- Support Assy RH	£54.66 £45.55
122	MP757281 Available to backorder	Support Assy- Gearbox LH	£32.22 £26.85
126	MP501597 Available to backorder	Screw Set M8x20 Hex	£0.44 £0.37
128	MP501213 Available to backorder	Brg Ball 12x32x10 6201 2RS	£16.70 £13.92

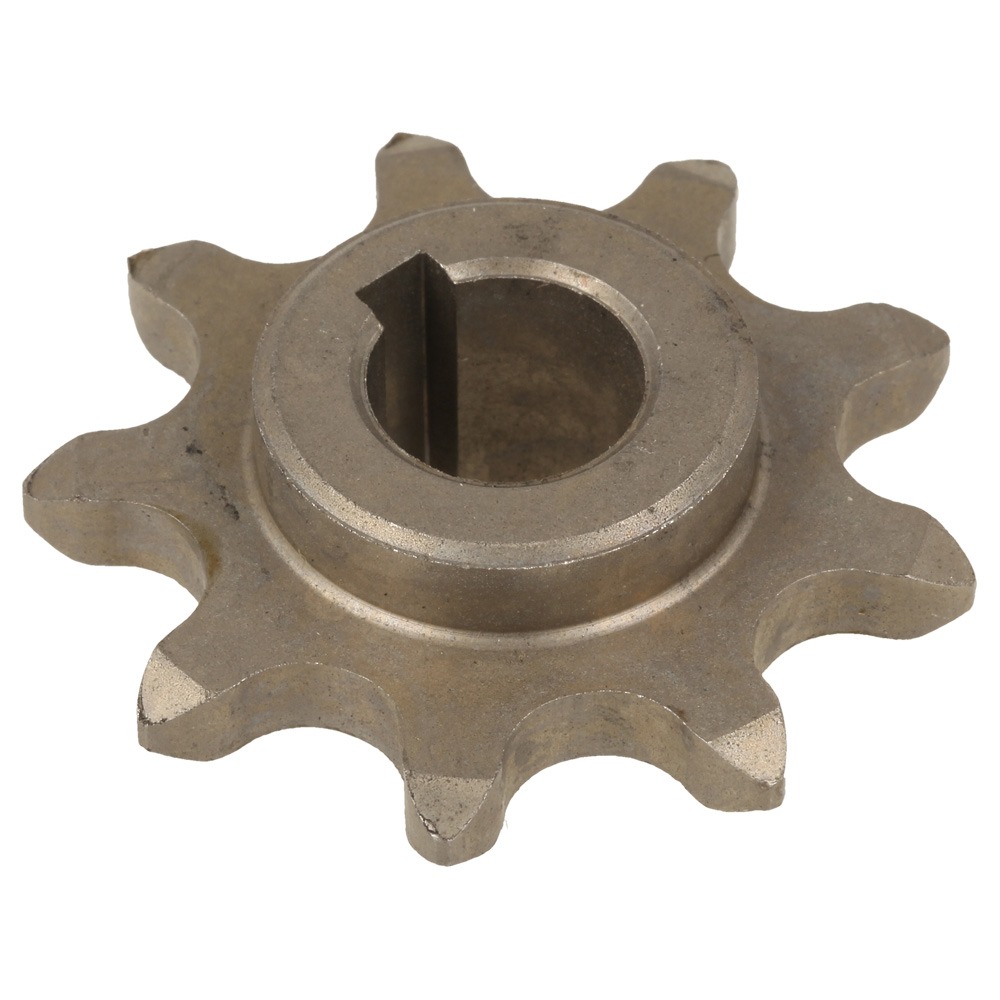

129	MP557306 In stock	Sprocket- 9T G.B Out	£44.62 £37.18
130	MP503759 In stock	Circlip 12 Ext	£0.48 £0.40

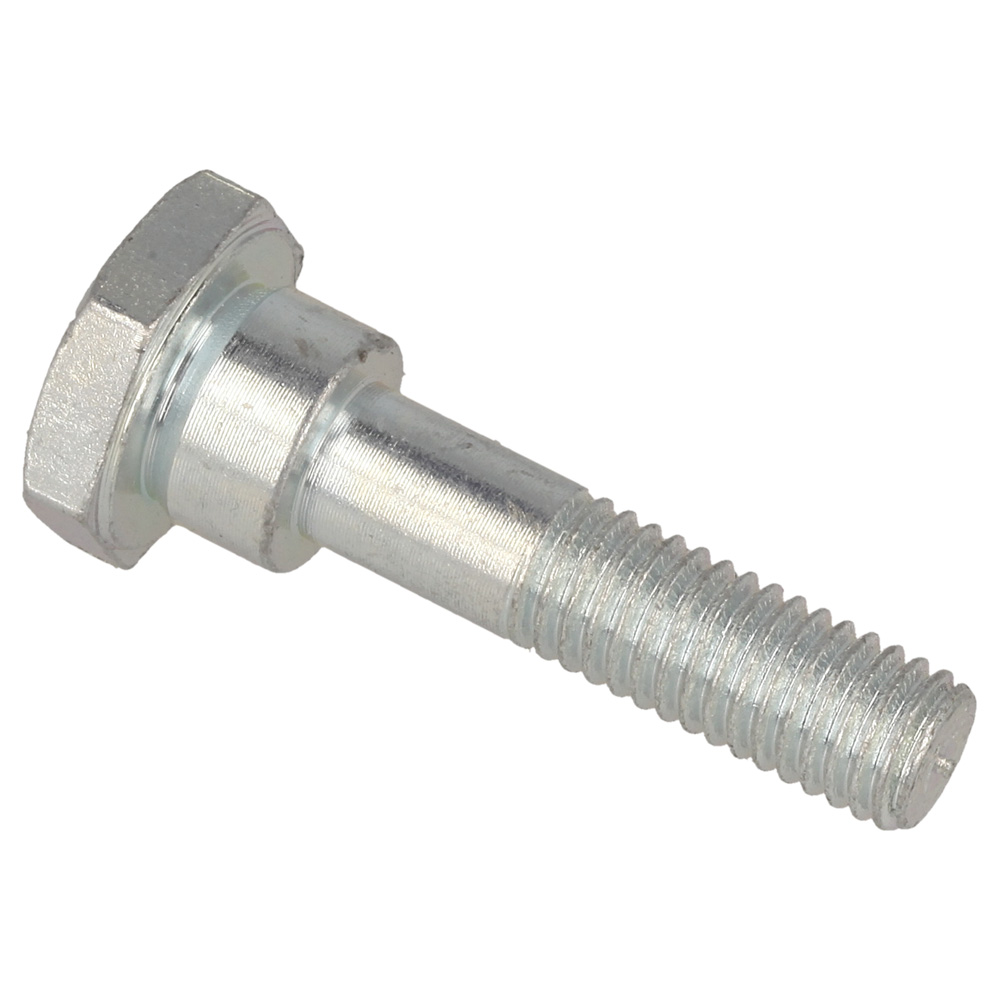

131	MP573874 Available to backorder	Stud- Pulley 21" RR	£5.72 £4.77

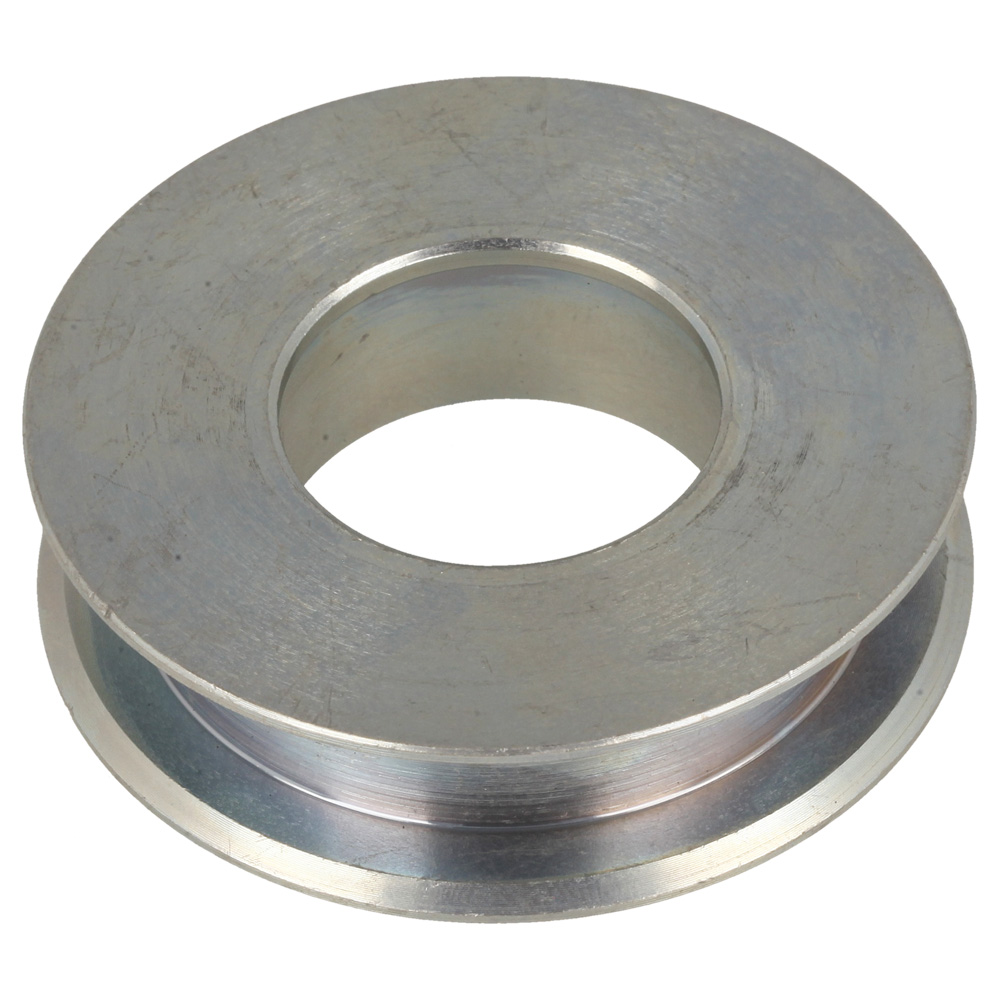

132	MP557355 Available to backorder	(132a) Pulley- Idler	£20.30 £16.92

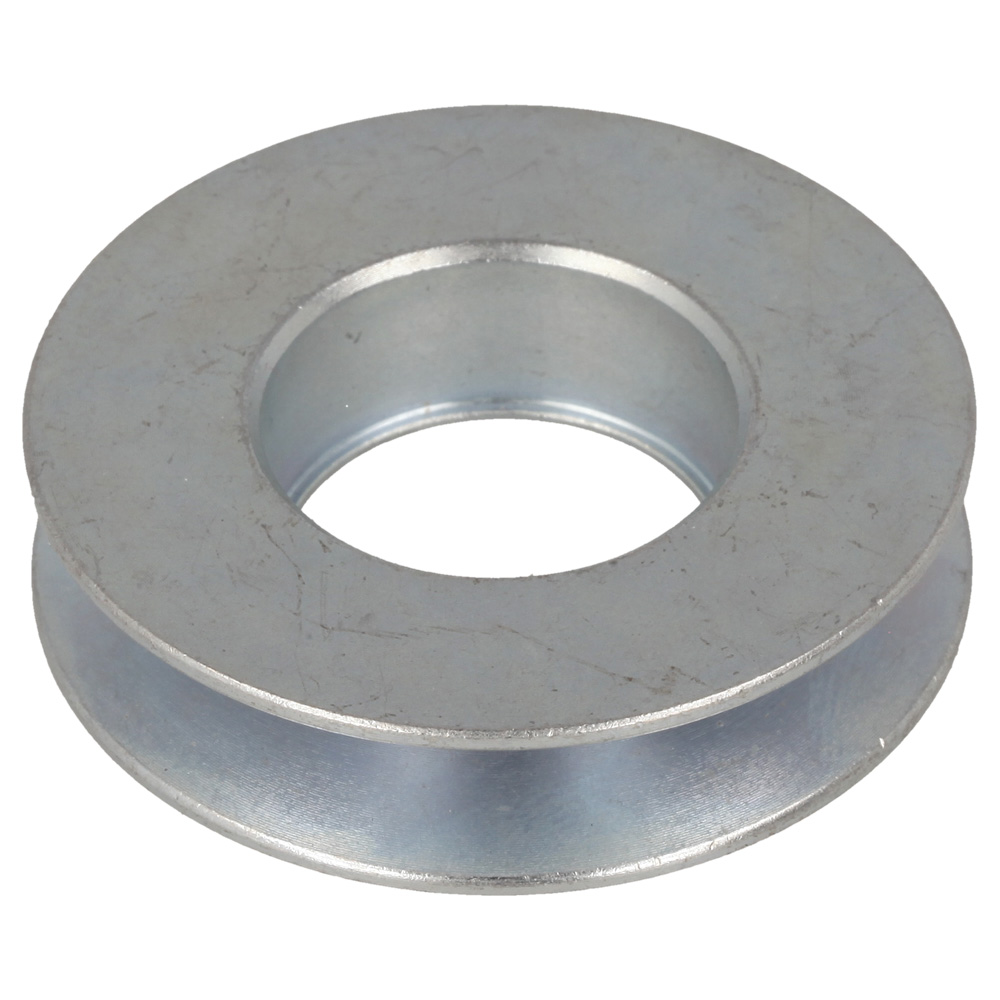

132	MP557316 Available to backorder	Pulley- V Idler	£25.24 £21.03

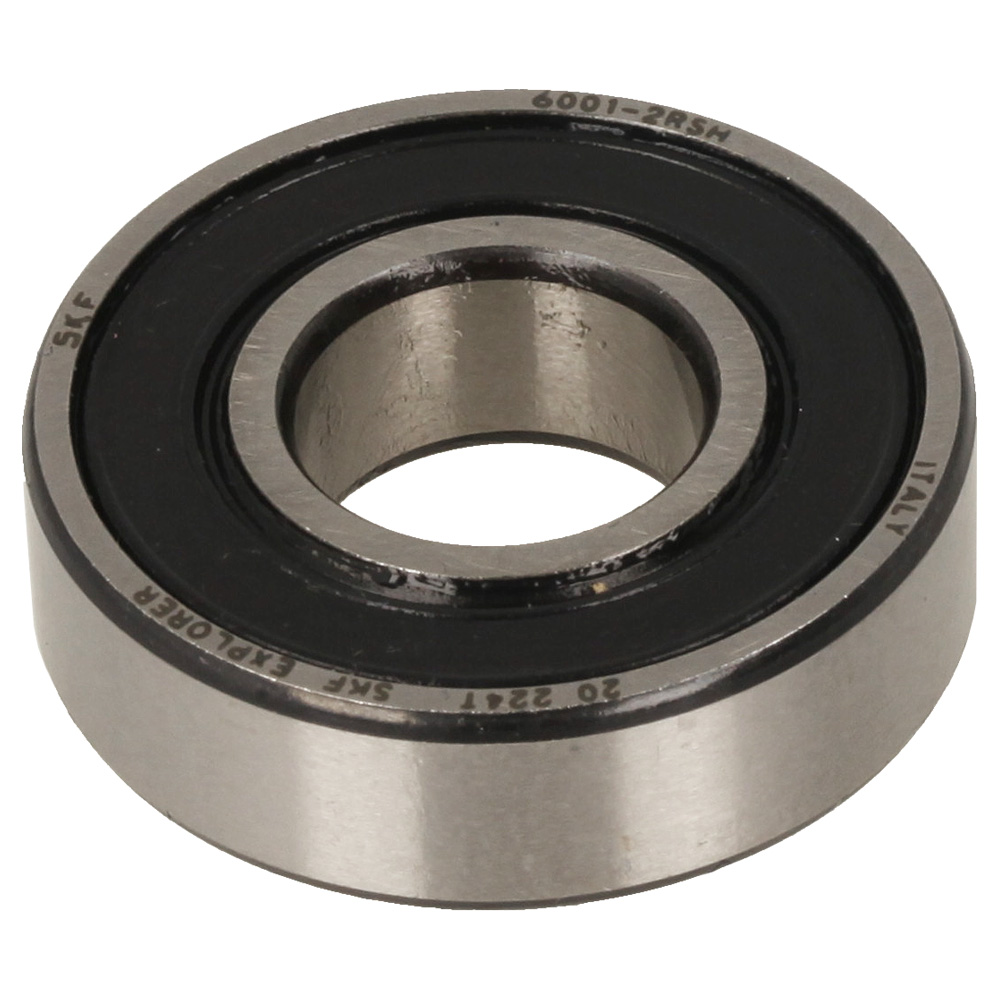

133	MP503901 In stock	Brg Ball 12x28x8 6001 2RSH	£18.78 £15.65
134	MP573875 Available to backorder	Spacer 21" RR	£24.16 £20.13
137	MP569552 Available to backorder	(137a) Spacer- Pulley Eng 25x42x2	£3.52 £2.93
138	MP503386 Available to backorder	Screw Grb M8x8	£0.44 £0.37

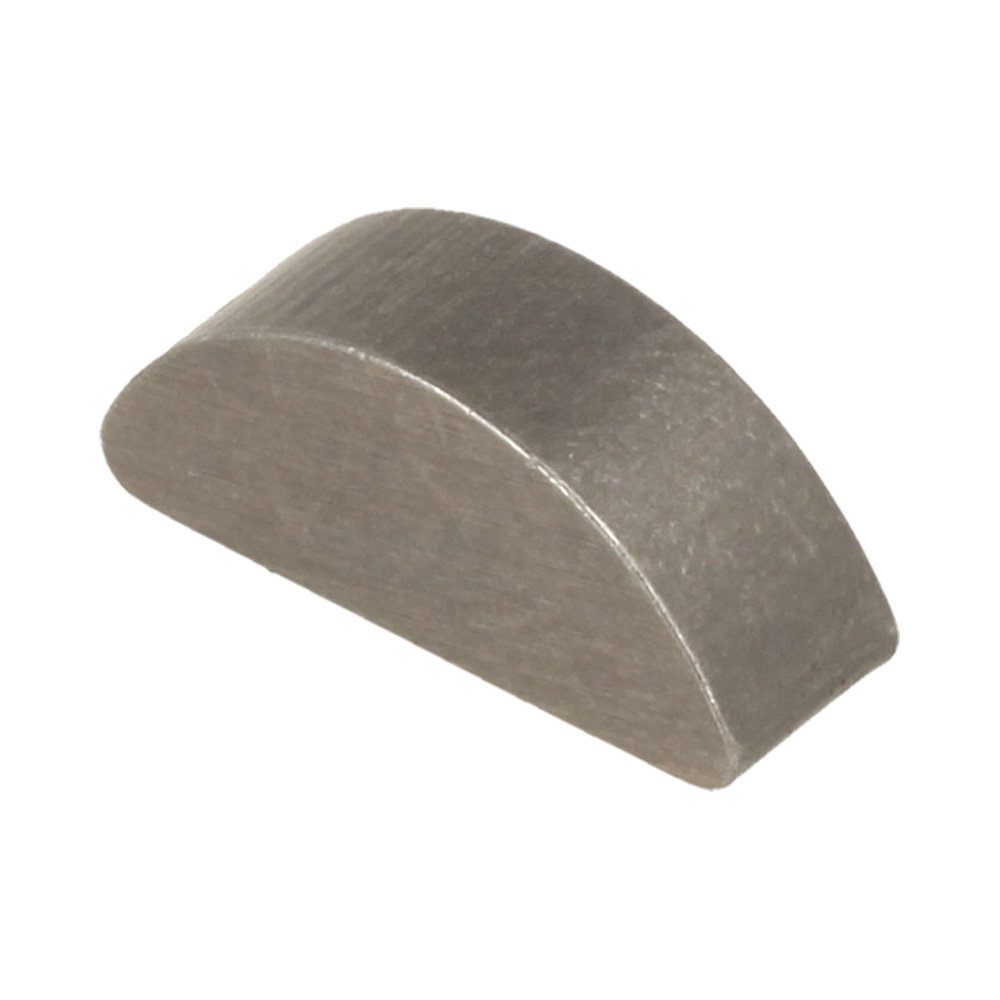

139	MP503363 Available to backorder	Key Woodruff 5.8x3.16x1.4	£0.44 £0.37
140	MP002844 Available to backorder	Adjuster Chain	£3.18 £2.65
145	MP503873 Available to backorder	Key 4 x 4 x 12	£0.80 £0.67
146	MP957345 Available to backorder	Cover Assy Belt	£52.82 £44.02
