Description

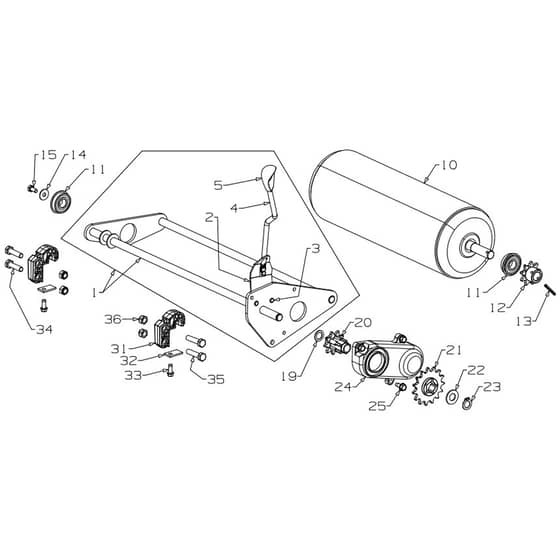

Masport 21 Petrol Rotarola - Roller Assembly Parts Diagram

Part Number: 457951

Model: S21 AL Rotarola SP

Engine Model: B&S Series 675EXi

Model Range: Oct 2015

Serial Number: > 7974000

Ref. Img. Part No. Details
  1 Frame Assy- Rear 21
Frame Assy- Rear 21
MP768787
Available to backorder
Frame Assy- Rear 21" SP RR
£62.62 £52.18

  2 Spring- Leaf 2mm
Spring- Leaf 2mm
MP573849
Available to backorder
Spring- Leaf 2mm
£6.24 £5.20

  3 Rivet- F.HD 3.16
Rivet- F.HD 3.16
MP503373
Available to backorder
Rivet- F.HD 3.16" x 27.64"
£0.96 £0.80

  4 Rod- Height Selector R.R
Rod- Height Selector R.R
MP564355
Available to backorder
Rod- Height Selector R.R
£7.74 £6.45

  5 Knob- Height Lever MSV
Knob- Height Lever MSV
MP581729
Available to backorder
Knob- Height Lever MSV
£3.12 £2.60

  10 Roller Assy Steel 21
Roller Assy Steel 21
MP557358
Available to backorder
Roller Assy Steel 21" RR SP
£186.70 £155.58

  11 Brg Ball 15x35x11 6202NR2RS
Brg Ball 15x35x11 6202NR2RS
MP503820
Available to backorder
Brg Ball 15x35x11 6202NR2RS
£23.14 £19.28

  12 Sprocket- 9T Driven
Sprocket- 9T Driven
MP557278
Available to backorder
Sprocket- 9T Driven
£43.26 £36.05

  13 Pin Tension 4.0x30
Pin Tension 4.0x30
MP503042
Available to backorder
Pin Tension 4.0x30
£0.68 £0.57

  15 Screw Set M6 x 12 Hex
Screw Set M6 x 12 Hex
MP501959
Available to backorder
Screw Set M6 x 12 Hex
£0.38 £0.32

  19 Washer Flt 1.2 x 3.4 x 18g
Washer Flt 1.2 x 3.4 x 18g
MP503301
Available to backorder
Washer Flt 1.2 x 3.4 x 18g
£3.36 £2.80

  20 Sprocket Assy- 9 Tooth
Sprocket Assy- 9 Tooth
MP957212
Available to backorder
Sprocket Assy- 9 Tooth
£36.02 £30.02

  21 Sprocket- Intermediate
Sprocket- Intermediate
MP557307
Available to backorder
Sprocket- Intermediate
£56.16 £46.80

  22 Washer Flat 1.2 x 1.0 x .062
Washer Flat 1.2 x 1.0 x .062
MP500858
Available to backorder
Washer Flat 1.2 x 1.0 x .062
£0.44 £0.37

  23 Circlip 1.2
Circlip 1.2
MP503293
In stock
Circlip 1.2" Ext
£1.30 £1.08

  24 Cover- Chain Rotarola
Cover- Chain Rotarola
MP557209
In stock
Cover- Chain Rotarola
Was £7.64 £6.37 Special Price £5.27 £4.39

  25 Screw. S.Tapping 1.4 x 5.8
Screw. S.Tapping 1.4 x 5.8
MP501599
Available to backorder
Screw. S.Tapping 1.4 x 5.8
£1.58 £1.32

  31 Bracket- Mounting Ali
Bracket- Mounting Ali
MP557338
Available to backorder
Bracket- Mounting Ali
£8.28 £6.90

  32 Plate- Retaining Bkt
Plate- Retaining Bkt
MP557340
Available to backorder
Plate- Retaining Bkt
£3.52 £2.93

  34 Screw Set M8 x 30 Hex
Screw Set M8 x 30 Hex
MP501685
Available to backorder
Screw Set M8 x 30 Hex
£0.80 £0.67

  35 Screw Set M8 x 35 Hex
Screw Set M8 x 35 Hex
MP501716
Available to backorder
Screw Set M8 x 35 Hex
£1.48 £1.23

  36 Nut M8 Nylock x 8mm Thick
Nut M8 Nylock x 8mm Thick
MP501793
Available to backorder
Nut M8 Nylock x 8mm Thick
£1.86 £1.55


Description

Masport 21 Petrol Rotarola - Roller Assembly Parts Diagram

Part Number: 457951

Model: S21 AL Rotarola SP

Engine Model: B&S Series 675EXi

Model Range: Oct 2015

Serial Number: > 7974000
