Masport 21 - 457944 - Oct 2009 7264646 - Handle Assembly

Name: Masport 21 - 457944 - Oct 2009 7264646 - Handle Assembly
SKU: 214579447264646handle-group
Price: 0.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 21 - 457944 - Oct 2009 7264646 - Handle Assembly

Description

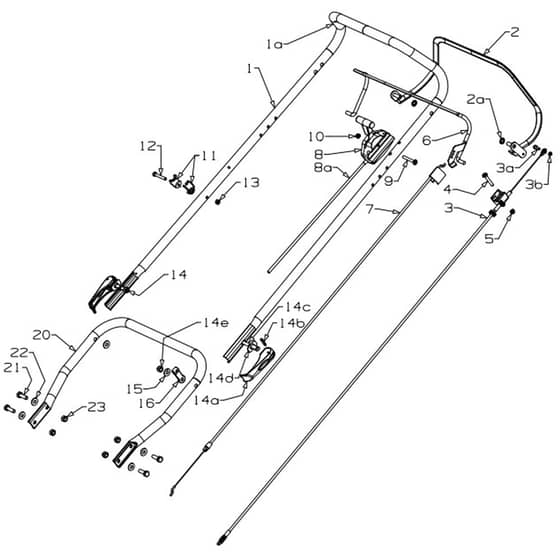

Masport 21 Petrol Rotarola - Handle Assembly Parts Diagram

Part Number: 457944

Model: RotaRola AL SP OPC

Engine Model: B&S Series 675

Model Range: Oct 2009

Serial Number: 7264646

Be the first to review this product

0 product questions

	Part No.	Details
1	MP764430 Available to backorder	(1.1a) Handle & Sleeve Sft.Blk	£61.86 £51.55
2	MP501365 Available to backorder	(2a) Clip- Starlock 5.16”	£0.46 £0.38
2	MP982161 Available to backorder	Bail Arm Assy SP Red	£27.36 £22.80
3	MP502238 Available to backorder	(3b) Nut M5 Hex Nyloc x 5mm thick	£0.48 £0.40
3	MP765435 In stock	Cable- Clutch Thumb Wheel	£28.18 £23.48
3	MP502237 In stock	(3a) Bolt Hex F.Head Shouldered M5	Was £15.32 £12.77 Special Price £10.57 £8.81
4	MP503604 Available to backorder	Screw Pan M6 x 45	£0.86 £0.72
5	MP501764 Available to backorder	Nut M6 Nyloc x 6mm thick	£0.35 £0.29
6	MP981740 Available to backorder	Bail Arm Assy OPC Red	£21.30 £17.75
7	MP583395 In stock	Cable- Engine OPC Push On	£18.82 £15.68
7	MP579782 In stock	Cable- Engine OPC Push On	£15.80 £13.17
8	MP582506 Available to backorder	(8.8b) Throttle Ctrl & Cable Capro “T”	£27.24 £22.70
9	MP503508 Available to backorder	Screw Pan M6 x 55	£1.14 £0.95
11	MP703856 Available to backorder	Comfort Start Kit	£19.80 £16.50
12	MP503794 Available to backorder	Screw Set M6 x 40 Hex	£0.35 £0.29
14	MP016777 Available to backorder	(14d) Washer Slipper SS	£0.68 £0.57
14	MP779755 In stock	Cam Lock Assembly (1 per)	£10.06 £8.38
14	MP503369 Available to backorder	(14b) Pin Tension 5.0 x 22	£0.48 £0.40
14	MP582419 Available to backorder	(14a) Lever- Handle Locking MSV	£4.92 £4.10
14	MP501793 Available to backorder	(14e) Nut M8 Hex Nyloc x 8mm thick	£1.86 £1.55
15	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.36 £0.30
16	MP581527 Available to backorder	Retainer- Clutch Cable	£0.72 £0.60
20	MP973125 Available to backorder	Handle- Lower “U” 19”	£32.10 £26.75
