Masport 21 - 457944 - Oct 2009 7264646 - Deck Assembly

Description

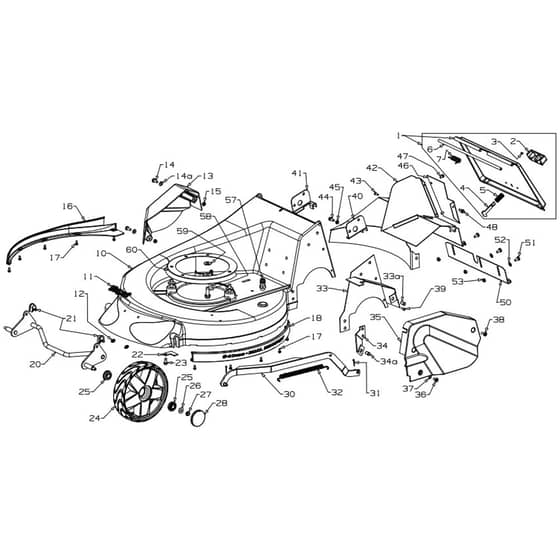

Masport 21 Petrol Rotarola - Deck Assembly Parts Diagram

Part Number: 457944

Model: RotaRola AL SP OPC

Engine Model: B&S Series 675

Model Range: Oct 2009

Serial Number: 7264646

Be the first to review this product

0 product questions

	Part No.	Details
1	MP973862 Available to backorder	Flap Assy- Steel 21 Latched Blk	£39.80 £33.17
2	MP580602 Available to backorder	Handle- Flap	£2.82 £2.35
4	MP981650 Available to backorder	Latch- Flap Barbed	£10.70 £8.92
5	MP581106 Available to backorder	Spring- Flap Latch	£1.14 £0.95
6	MP583312 Available to backorder	Wire- Flap Pivot 325 x 8	£4.96 £4.13
7	MP565095 Available to backorder	Spring- Flap ALI 21”	£2.14 £1.78
10	MP757328 Available to backorder	Hsg- Ali 21” RR SP TTNM	£358.80 £299.00
11	MP567406 Available to backorder	Nameplate Masport	£6.04 £5.03
12	MP503150 Available to backorder	Clip- Starlock 5 dia	£0.52 £0.43
13	MP557331 Available to backorder	Cover- Side RH 21” TTNM	£15.48 £12.90
14	MP501703 Available to backorder	(14a) Washer Flat 6 x 14 x 1.2	£0.48 £0.40
14	MP503331 Available to backorder	Screw Pan M6 x 16	£1.24 £1.03
15	MP501764 Available to backorder	Nut M6 Nyloc (Inside Hsg)	£0.35 £0.29
16	MP957352 Available to backorder	Skirt- Combo RH 21” SP RR	£17.64 £14.70
17	MP503834 Available to backorder	Screw S.Tapping M4 x 10	£0.38 £0.32
18	MP579742 Available to backorder	Skirt- Side LH 540 Blk	£11.66 £9.72
20	MP983305 Available to backorder	Axle Assy- Front 200mm Thread	£31.54 £26.28
21	MP580030 Available to backorder	Bush- Pivot Axle	£0.70 £0.58
22	MP565184 Available to backorder	Plate- Retainer Front Axle	£2.88 £2.40
23	MP501599 Available to backorder	Screw S.T 1.4 x 5.8 Hex	£1.58 £1.32
24	MP579197 Available to backorder	Wheel Assy- 200 Spoked Silver	£35.92 £29.93
25	MP551212 Available to backorder	Bearing- Wheel Ball Type	£5.56 £4.63
26	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.36 £0.30
27	MP503831 Available to backorder	Nut M8 Hex Nyloc x 6mm thick	£0.72 £0.60
28	MP579198 Available to backorder	Hub Cap Button Spoked Silver	£0.86 £0.72
30	MP557346 Available to backorder	Rod Assy Connecting RR 21”	£20.60 £17.17
31	MP501056 Available to backorder	Pin Cotter 2.3d x 16	£0.48 £0.40
32	MP573844 Available to backorder	Spring- Counter Balance SP Ser2	£7.64 £6.37
34	MP957347 Available to backorder	Bracket Cover- Support 21” RR	£14.52 £12.10
34	MP501040 Available to backorder	(34a) Nut M6 Nutsert 9658-0619	£0.72 £0.60
35	MP557362 Available to backorder	Cover- Side LH 21” RR	£18.36 £15.30
36	MP503591 Available to backorder	Screw Pan M6 x 12 Poz	£0.34 £0.28
39	MP503318 Available to backorder	Rivet- Pop 4.8 x 7.9 73AS6-5	£0.44 £0.37
40	MP573437 Available to backorder	Bracket- LH AL 19.21” Aero	£17.98 £14.98
41	MP573438 Available to backorder	Bracket- RH AL 19.21” Aero	£17.98 £14.98
42	MP957369 Available to backorder	Tunnel Assy- 21” SP RR	£97.58 £81.32
44	MP501702 Available to backorder	Screw Set M6 x 16	£0.44 £0.37
46	MP957354 Available to backorder	Cover- Gearbox TTNM	£17.68 £14.73
47	MP503630 Available to backorder	Screw. S.Tapping 10 x .4	£0.90 £0.75
50	MP571048 Available to backorder	Hook 19.21” Aero Catcher Blk	£19.24 £16.03
57	MP503783 Available to backorder	Cyclowash- Fitting	£4.62 £3.85
59	MP583542 Available to backorder	Spacer- Base 10.5 x 22 x 6.0	£3.46 £2.88
60	MP569037 Available to backorder	Ring- Safety Blk	£18.80 £15.67
