Masport 200ST - 979893 - January 2008 - - Main Assembly

Description

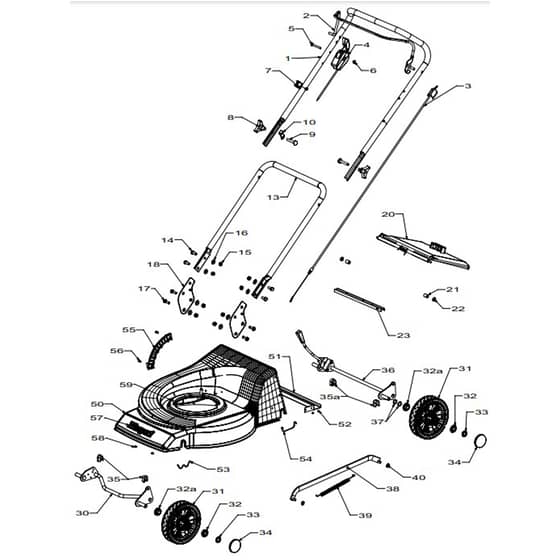

Masport 200ST Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 979893

Model: S18 200 ST

Engine Model: B & S Series 450

Model Range: January 2008

Serial Number: -

	Part No.	Details
1	MP971022 Available to backorder	Handle Assy- Upper Upt OPC	£31.26 £26.05
2	MP981740 Available to backorder	Bail Arm Assy OPC Flatnd	£20.51 £17.09
3	MP581656 In stock	Cable- Engine OPC Push	£18.80 £15.67
4	MP583458 In stock	Control-Throttle Assy Wescon	£19.93 £16.61
5	MP503604 Available to backorder	Screw Pan M6 x 45	£0.83 £0.69
6	MP501764 Available to backorder	Nut Nyloc M6	£0.31 £0.26
7	MP703856 Available to backorder	Comfort Start Kit	£19.06 £15.88
8	MP574230 Available to backorder	Knob- Plastic M8 Insert	£4.28 £3.57
9	MP574218 Available to backorder	Bolt SPH M8x53x35	£1.66 £1.38
10	MP581527 Available to backorder	Retainer- Clutch Cable	£0.72 £0.60
13	MP971017 Available to backorder	Handle-Lower "U" OPP Long	£23.26 £19.38
14	MP501597 Available to backorder	Screw Set M8x20 Hex	£0.41 £0.34
15	MP501793 Available to backorder	Nut Nyloc M8	£1.92 £1.60
16	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.37 £0.31
18	MP579689 Available to backorder	Bracket- Flap OPP	£9.66 £8.05
20	MP782200 Available to backorder	Flap Assy- Plastic	£45.66 £38.05
21	MP579733 Available to backorder	Spacer- Flap	£0.48 £0.40
22	MP503574 Available to backorder	Clip- Starlock 6 Dia	£1.40 £1.17
23	MP583151 Available to backorder	Dust Seal- Flap	£2.48 £2.07
30	MP581269 Available to backorder	Axle-Front 175mm	£24.49 £20.41
31	MP579495 Available to backorder	Wheel Assy-175mm PB Cobra	£29.75 £24.79
32	MP551212 Available to backorder	Bearing- Wheel	£5.75 £4.79
32	MP579694 Available to backorder	(32a) Bearing- Wheel Plastic	£0.72 £0.60
33	MP503236 Available to backorder	Clip- Starlock 1.2"	£2.03 £1.69
34	MP579202 Available to backorder	Hub Cap Button Spoked	£0.83 £0.69
35	MP580668 Available to backorder	(35a) Bush-Pivot Rear Axle	£0.72 £0.60
35	MP580030 In stock	Bush-Pivot Front Axle	£0.76 £0.63
36	MP969241 Available to backorder	Axle Assy- Rear Complete	£31.03 £25.86
37	MP503301 Available to backorder	Washer Flt 1.2x3.4x18G	£3.23 £2.69
38	MP972288 Available to backorder	Rod Assy-Connecting 460	£15.23 £12.69
39	MP581463 Available to backorder	Spring-Counter Balance	£7.09 £5.91
40	MP501365 Available to backorder	Clip-Starlock 5.16"	£0.48 £0.40
50	MP781468 Available to backorder	Housing Assy- Stl 18" ODS Ttn	£158.40 £132.00
51	MP583267 Available to backorder	Brace- Rear	£14.46 £12.05
53	MP529674 In stock	Retainer-Axle W Front	£0.50 £0.42
54	MP579292 Available to backorder	Retainer-Axle Rear	£0.83 £0.69
55	MP580025 Available to backorder	Quadrant- Height Selector	£6.64 £5.53
57	MP581240 In stock	Nameplate- Masport	£7.14 £5.95
58	MP503150 Available to backorder	Clip- Starlock 5Dia	£0.48 £0.40
59	MP580453 Available to backorder	Screw S.T 3. 8" x 1 1.8"	£2.23 £1.86
