Description

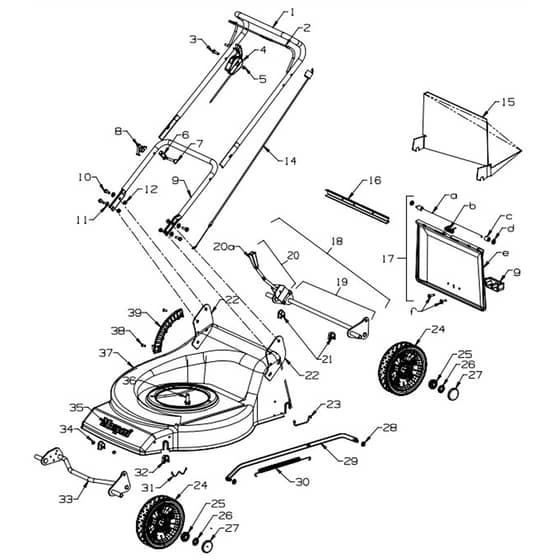

Masport 200ST Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 579893

Model: S18 200 ST

Engine Model: B & S - Classic 35

Model Range: December 2007

Serial Number: -

Ref. Img. Part No. Details
  1 Handle-Upper UPT OPC- Black MP973155
Handle-Upper UPT OPC- Black
Out of stock
£40.56 £33.80

  2 Bail Arm Assm Upturn OPC MP981740
Bail Arm Assm Upturn OPC
Out of stock
£21.30 £17.75

  3 Screw Pan M6 x 45 MP503604
Screw Pan M6 x 45
Out of stock
£0.86 £0.72

  4 Control-Throttle +Ve N.Ch MP583458
Control-Throttle +Ve N.Ch
In stock
£19.99 £16.66

  5 Nut Nyloc M6 MP501764
Nut Nyloc M6
Out of stock
£0.35 £0.29

  6 Retainer-Control Cable Handle MP581527
Retainer-Control Cable Handle
Out of stock
£0.72 £0.60

  7 Bolt SPH M8 x 50 x 35 MP574218
Bolt SPH M8 x 50 x 35
Out of stock
£1.70 £1.42

  8 Knob-Plastic M8 MP574230
Knob-Plastic M8
Out of stock
£4.46 £3.72

  9 Handle-Lower MP979685
Handle-Lower "U" OPP- Black
Out of stock
£23.88 £19.90

  11 Washer Flat 8 x 19 x 1.6 MP501606
Washer Flat 8 x 19 x 1.6
Out of stock
£0.41 £0.34

  12 Nut Nyloc M8 MP501793
Nut Nyloc M8
Out of stock
£0.62 £0.52

  14 Cable-Engine OPC Push-On MP581656
Cable-Engine OPC Push-On
In stock
£18.84 £15.70

  15 Chute Assy-Grass (Optional) MP783470
Chute Assy-Grass (Optional)
Out of stock
£171.08 £142.57

  16 Seal-Dust Flap MP583151
Seal-Dust Flap
Out of stock
£2.60 £2.17

  17 (17c) • Spacer - Flap MP579733
(17c) • Spacer - Flap
Out of stock
£0.38 £0.32

  17 (17f) • Screw ST M5x18 Wasr Plast MP503650
(17f) • Screw ST M5x18 Wasr Plast
Out of stock
£1.14 £0.95

  17 (17g) • Handle-Flap MP580602
(17g) • Handle-Flap
Out of stock
£2.82 £2.35

  17 (17a) • Wire-6mm x 387mm Flap Pivot MP779732
(17a) • Wire-6mm x 387mm Flap Pivot
Out of stock
£9.35 £7.79

  17 (17e) • Flap-Plastic - PRC Black MP782200
(17e) • Flap-Plastic - PRC Black
Out of stock
£47.08 £39.23

  17 (17b) • Spring-Flap MP581349
(17b) • Spring-Flap
Out of stock
£2.60 £2.17

  17 (17d) • Starlock Clip 6mm Dia MP503574
(17d) • Starlock Clip 6mm Dia
Out of stock
£1.54 £1.28

  19 Axle Assy-Rear MP580020
Axle Assy-Rear
Out of stock
£26.36 £21.97

  20 (20a) • Grip-Lever - 7.9 Dia Black MP580056
(20a) • Grip-Lever - 7.9 Dia Black
Out of stock
£1.14 £0.95

  20 Rod Height Ajust. Assm MP980229
Rod Height Ajust. Assm
Out of stock
£13.82 £11.52

  21 Bush-Pivot Rear Axle MP580668
Bush-Pivot Rear Axle
Out of stock
£0.72 £0.60

  22 Bracket-Flap LH & RH Black MP579689
Bracket-Flap LH & RH Black
Out of stock
£10.04 £8.37

  23 Retainer-Axle Rear Steel-deck MP579292
Retainer-Axle Rear Steel-deck
Out of stock
£0.86 £0.72

  24 Wheel Assy-175mm MP579495
Wheel Assy-175mm
Out of stock
£30.90 £25.75

  25 (25b) Bearing Ball MP551212
(25b) Bearing Ball
Out of stock
£5.98 £4.98

  25 Bush-Plain Plastic MP579694
Bush-Plain Plastic
Out of stock
£0.72 £0.60

  26 Clip-Starlock 1.2 MP503236
Clip-Starlock 1.2"
Out of stock
£2.10 £1.75

  27 Hub Cap-Button Spoked BLACK MP579202
Hub Cap-Button Spoked BLACK
Out of stock
£0.86 £0.72

  28 Clip-Starlock 5.16 MP501365
Clip-Starlock 5.16"
Out of stock
£0.54 £0.45

  29 Rod Assy-Connecting 150mm MP980404
Rod Assy-Connecting 150mm
Out of stock
£16.68 £13.90

  30 Spring-Counter Balance MP581463
Spring-Counter Balance
Out of stock
£7.38 £6.15

  31 Retainer-Axle W Front MP529674
Retainer-Axle W Front
Out of stock
£0.54 £0.45

  32 Bush-Pivot Front Axle MP580030
Bush-Pivot Front Axle
In stock
Was £0.72 £0.60 Special Price £0.56 £0.47

  33 Axle-Front 175mm MP581269
Axle-Front 175mm
Out of stock
£25.48 £21.23

  34 Clip-Starlock 5 Dia MP503150
Clip-Starlock 5 Dia
Out of stock
£0.54 £0.45

  35 Nameplate MP581240
Nameplate
Out of stock
£7.44 £6.20

  36 Screw S.T 3. 8 MP580453
Screw S.T 3. 8" x 1 1.8"
Out of stock
£2.32 £1.93

  37 Housing - Titanium MP781468
Housing - Titanium
Out of stock
£170.22 £141.85

  39 Quadrant-Height Selector MP580025
Quadrant-Height Selector
Out of stock
£6.42 £5.35


Description

Masport 200ST Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 579893

Model: S18 200 ST

Engine Model: B & S - Classic 35

Model Range: December 2007

Serial Number: -
