Masport 200ST - 483809 - Sept 2015 7960907 - 460mm Blade Assembly 8150000

Name: Masport 200ST - 483809 - Sept 2015 7960907 - 460mm Blade Assembly 8150000
SKU: 200st4838097960907460mmblade8150000-group
Price: 0.26 GBP
Availability: InStock

Part No. 200st4838097960907460mmblade8150000-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 200ST - 483809 - Sept 2015 7960907 - 460mm Blade Assembly 8150000

Description

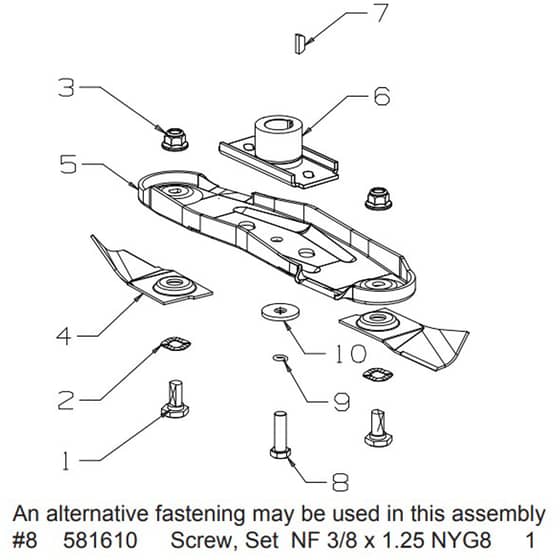

Masport 200ST Petrol Push Rotary Mower - 460mm Blade Assembly 8150000 Parts Diagram

Part Number: 483809

Model: S18 200 ST 2'n1

Engine Model: B&S Series 450E

Model Range: Sept 2015

Serial Number: 7960907

	Part No.	Details
1	MP581707 In stock	Bolt-Blade	£2.41 £2.01
1	MP783690 Available to backorder	Bolt Set Inc Items 2 x 1 2	£13.39 £11.16
2	MP580693 In stock	Washer Wavy 13.4 x 24.2	£0.37 £0.31
3	MP503672 In stock	Nut Flange Nyloc M10	£0.36 £0.30
4	MP780658 Available to backorder	Blade- Quick Cut 460mm Euro	£17.70 £14.75
5	MP980653 Available to backorder	Carrier- Blade QuickCut	£31.19 £25.99
6	MP014173 In stock	Driver Assy-Blade 7.8"	£25.37 £21.14
7	MP500636 Available to backorder	Key Woodruff-5.8" x 5.32" x 1.4"	£1.40 £1.17
8	MP581610 In stock	(8b) Screw Set NF 3.8 x 1.25 NYG8	£2.11 £1.76
9	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
10	MP503667 Available to backorder	Washer Flat 9.75 x 30 x 3.0	£1.14 £0.95
